Brush bar trunking system - perfectly adapted, seamless suppliers
Advantages of the OKB open brush bar trunking system
- Trunking along the walls can only be recognised by a narrow brush bar
- Aesthetically pleasing, almost invisible power supply
- Ensures the high-quality appearance of a room
- Hidden cables offer enhanced comfort in your home
- Flexible underfloor system – from planning through to later use
- Can be adapted perfectly to the appropriate room situation
- Can be combined universally with OBO's complete solutions
- Cables exactly where they are needed
Frequently asked questions about the OKB open brush bar trunking system
What are the basic types?

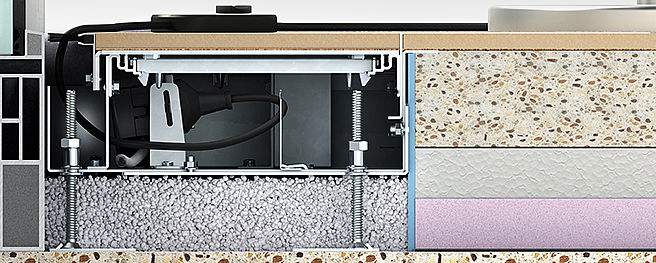

How high must the floor structure be?
The floor structure from the top edge of the raw floor to the top edge of the finished screed must be at least 85 mm. The height setting is variable to max. 333 mm to the top edge of the finished screed. The floor covering can be up to 25 mm thick.
What types of floor care are possible?
Suitable for dry or moist-care floor coverings.
What are the load capacities of open brush bar trunking systems?
The trunking system can accept a load capacity of up to 3,000 N (300 kg).

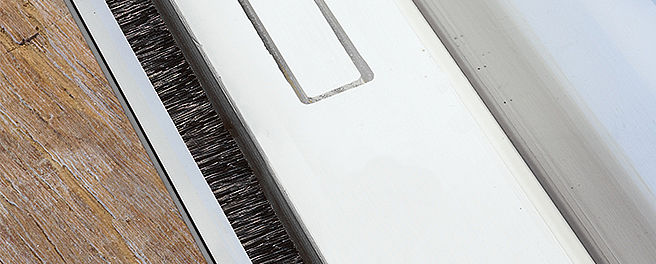

How does the open brush bar trunking system perform with regard to noise transmission?
The screed-flush trunking with brush bar is installed at the edge of a side of the room. With regard to footfall noise transmission, the installation of this trunking leads to no worsening of the footfall noise properties in floating cement screen floors. In the case of wall penetrations through partitions with noise protection requirements, noise protection insulation should be installed as required. The air and footfall noise transmission for the OKB brush bar trunking system was evaluated in qualified tests with the MÜLLER-BBM GmbH testing institute in Planegg, Munich.

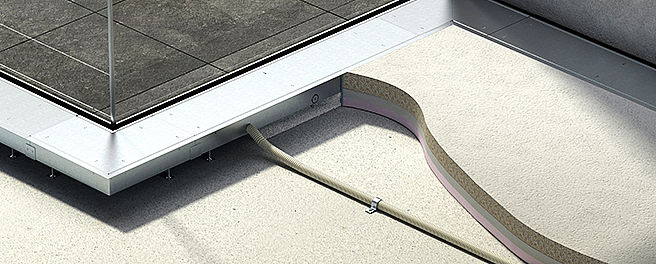

When is the OKB open brush bar trunking system laid?
The open brush bar trunking system (OKB) is mounted on the raw concrete before the screed work. It runs along the walls for the entire length of the room. The practical fittings of the OKB system allow routing into any corner of the room. Appropriate prefabricated internal and external corners ensure uncomplicated mounting. The system can be adjusted exactly to the planned screed height using the height-adjustment feet.
Which floor covering is suitable for the product?
The trunking system is suitable for all cut-resistant floor coverings such as parquet and plastic coverings of up to 25 mm thickness.
