Cable Tidies and Cable Glands

The OBO expertise in connection and fastening systems

O-line OBO Bettermann Group offers a huge range of connection and fastening systems and has years of expertise in this area of application. The famous OBO anchor, which gave our company its brand name, has already proven our pioneer spirit in the field of connection and fastening systems and became one of our most famous products ever. It was invented in 1952 and was the first metal anchor that could be knocked directly into the wall without any drilling. It was a true innovation back then “Ohne Bohren”, which means without drilling and became the short version “OBO” part of our name. Until today, this spirit of innovation is not only part of our connection and fastening systems but of any OBO product. This is also proven in an impressive manner by our cable tidies and cable glands.

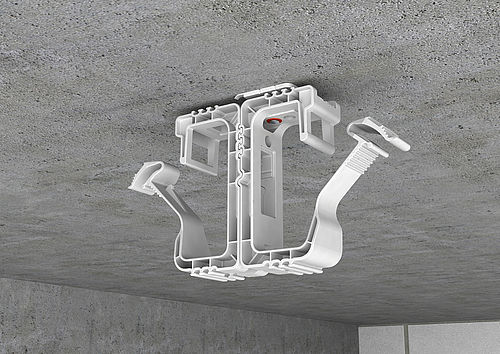

GRIP Cable Tidy

The GRIP plastic cable tidies are for general use. They are suitable for wall and ceiling mounting and support users in the proper and safe installation of cables, even under difficult circumstances. They are also available in a hardly flammable version.
Their moulded fastening element can be fastened by using knock-in anchors or a gas pressure nail gun.

Advantages of the GRIP cable tidy at a glance

  • Wall and ceiling mounting

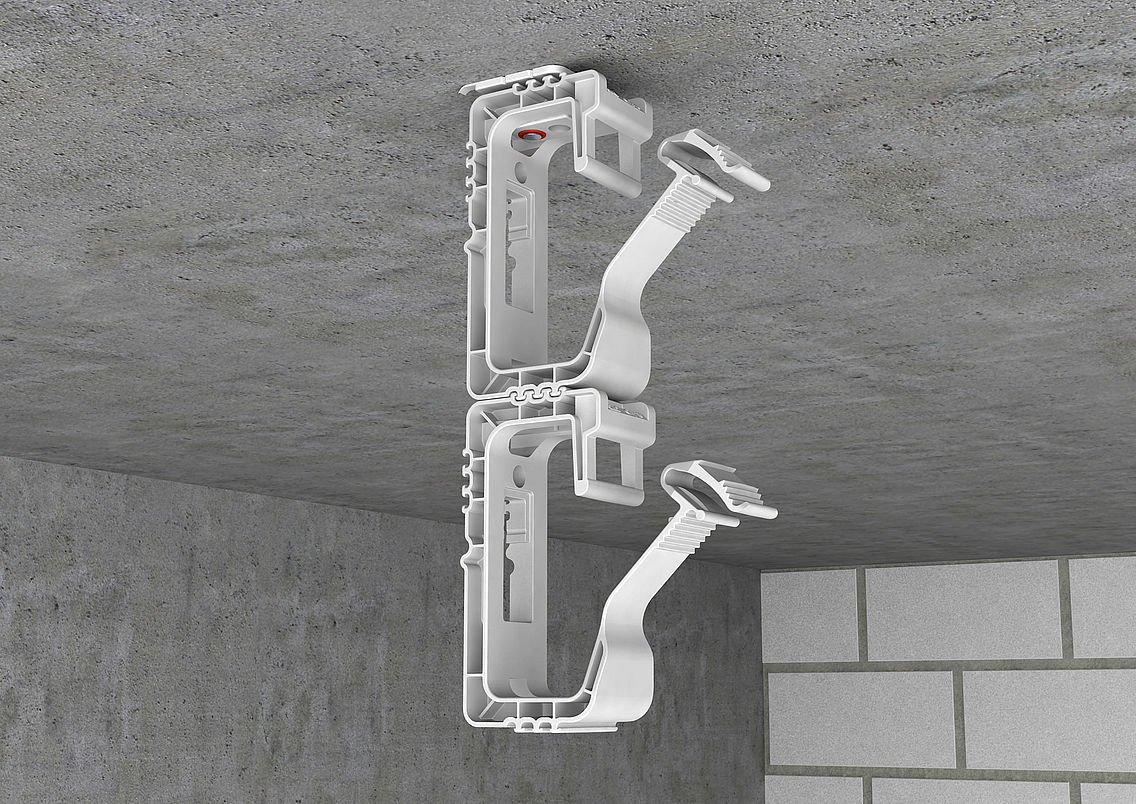

  • Can be joined together “back to back” with all sizes
  • For multiple cables
  • Rapid installation using the fastening element
  • Ideal for subsequent installations
  • Flame-resistant version, stone grey, to DIN EN 0471 / DIN IEC 695 Part 2-1, test temperature 960 Grad Celsius

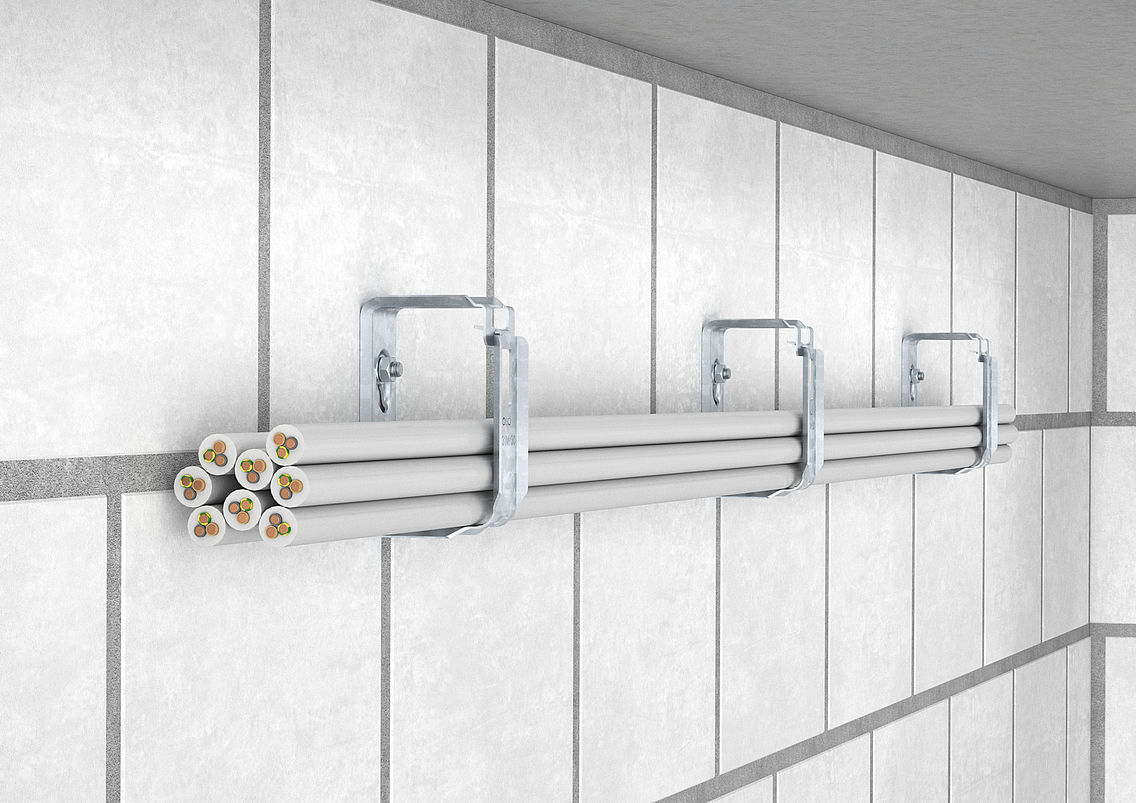

GRIP M Cable Tidy, Metal

The GRIP M series consists of metal cable tidies which ensure a high mechanical stability, even in case of fire. They are suitable for a safe mounting above fire protection ceilings. The GRIP M cable tidies are also approved as a cable-specific variant for the maintenance of electrical function to DIN 4102 part 12.

With its movable closing strap, the GRIP cable tidy can be opened and closed again and again by applying only light pressure. This means that you can remove a cable easily and at any time from fixed wall and ceiling installations, or also install a new cable at a later date.

Advantages of the GRIP M cable tidy at a glance

  • Ingenious design means both wall and ceiling mounting are possible
  • Easy cable insertion
  • Extremely sturdy click-in connector for easy subsequent installations
  • UL-tested quality
  • Also available in stainless steel qualities A2 and A4
  • Tested for the maintenance of electrical functionality (E30, E90)
  • Halogen and fire load-free

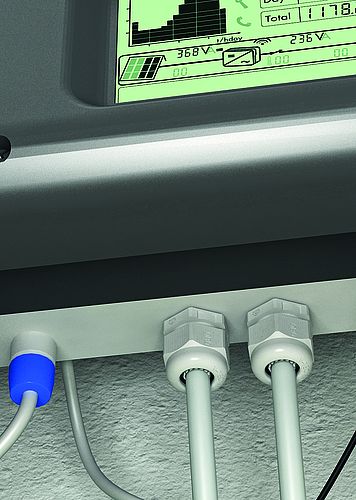

Cable Gland V-Tec VM and V-TEC VM L

The quickest and most convenient way of providing strain relief and tightness with cable glands on junction boxes and housings is with the tried-and-trusted V-TEC VM OBO cable glands from O-line. With the integrated sealing lip and the special OBO slat technology, protection class IP68 is achieved. Strain relief and tightness have been tested to DIN EN 62444. The connecting threads of the cable glands are metric or PG and are therefore suitable for universal use. Once screwed in place, the installation is there forever, as the optimum thread adjustment with the right pitch ensures permanent resistance to shaking.

The V-TEC VM and V-TEC VM L can be applied from private housing with junction boxes up to industrial applications in the distributor cabinet.

Advantages of V-TEC VM and V-TEC VM L at a glance

  • Fast and convenient means of cable entry for junction boxes and housings
  • Protection class IP68
  • Strain relief and tightness tested to DIN EN 62444
  • Metric connecting threads for universal use
  • Temperature range: -20 °C to +65 °C

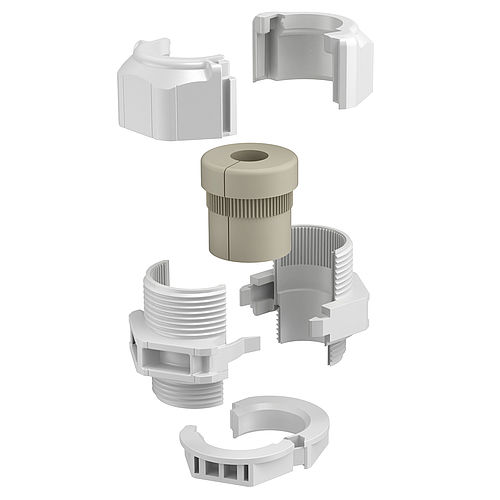

Separable Cable Glands V-TEC TB

The V-TEC TB, just like any other V-TEC glands, ensure a secure sealing of the cable. The splitting of the cable gland makes the installation of pre-terminated cables or function cables as easy as possible. The V-TEC TB is also unbeatable when a missing or defective cable gland must be replaced or supplemented in an existing installation. There is no need to disassemble the pre-mounted cables, it can be installed without interrupting the production process.

Advantages of the Separable Cable Glands V-TEC TB

  • Ideal for repairs, subsequent installations or pre-terminated cables
  • High sealability
  • Connecting thread size M20, M25 and M32
  • Sealing inserts: Closed, for single cables or multiple cables
  • Easy to separate
  • Protection Class IP67
