VG housing with MC 50-B/3

Item no. 5089212 | EAN 4012195531074

Product description

Product description

Lightning arrester system solution type 1 according to DIN EN 61643-11.

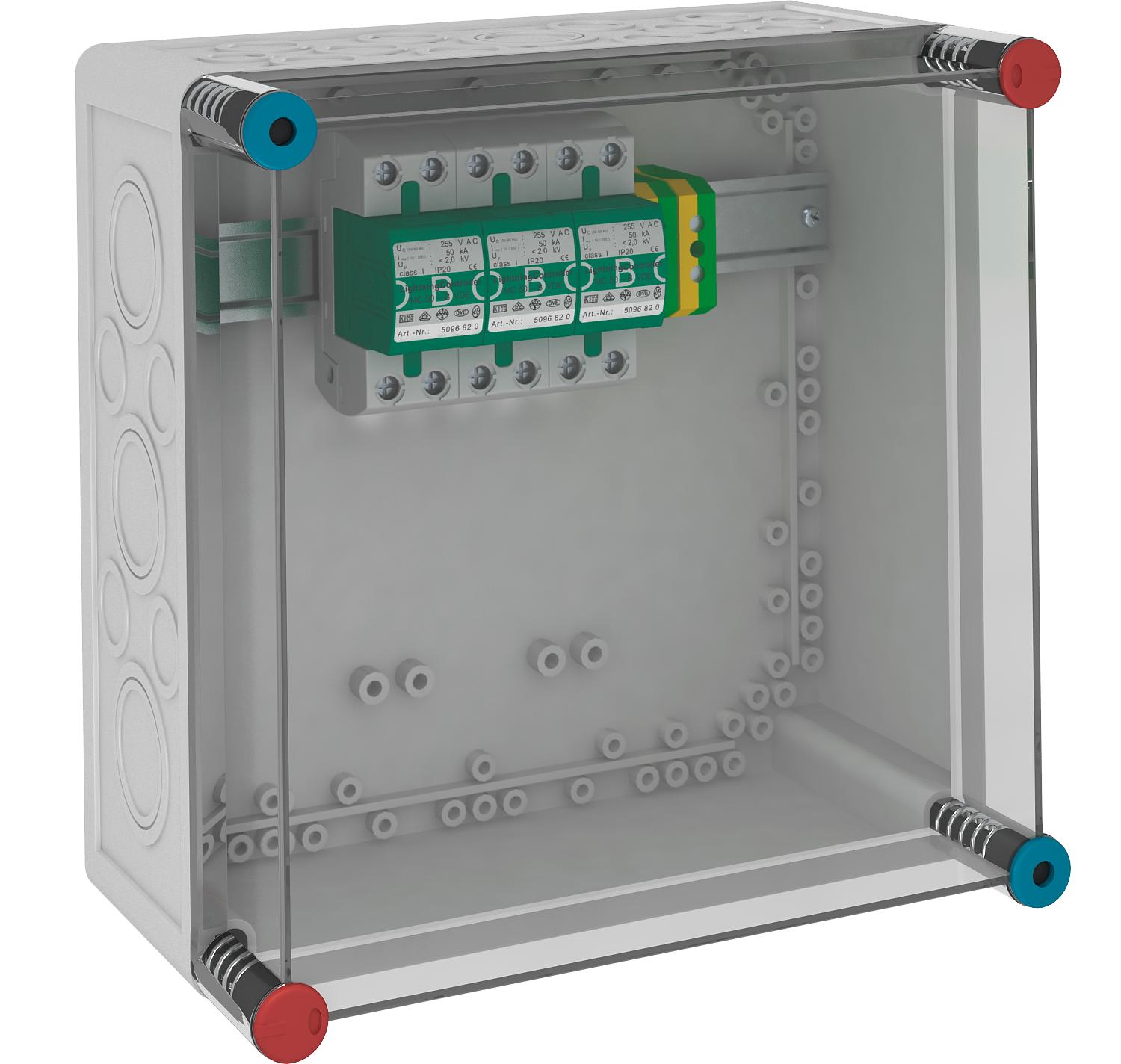

• LightningController MC 50-B/VDE mounted in insulating housing IP 65, sealable housing

• Pulse current 100 kA (10/350 µs) per pole, BET-tested

• Corresponds to the requirements of VDE-AR-N 4100

• Protection level < 2.0 kV

• Encapsulated, non-extinguishing spark gaps

• Suitable for TN-C network systems



Application: Industrial systems and buildings with external lightning protection of the highest Class I to IV.
  • Lightning current-tested
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Protection rating IP 65
  • 230/400 V system
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 0 to LPZ 1

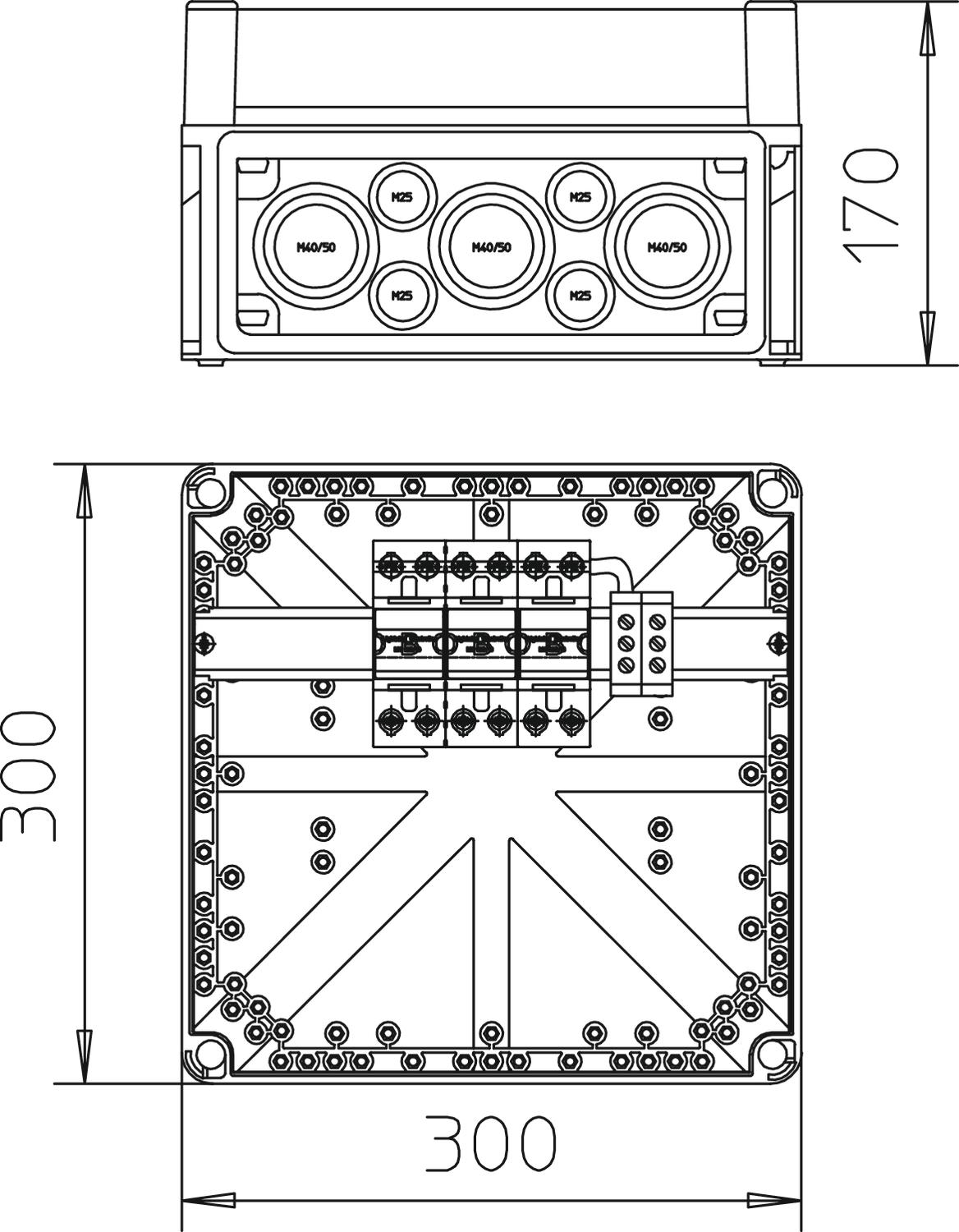

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 150 kA
Blow-out no
Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm²
Dimension 280V
Follow current quenching capacity (eff) [N-PE] 25 kA
Installation type Pre-mounted in the housing
Lightning protection zone LPZ 0→1
Lightning surge current (10/350 μs) 50 kA
Lightning surge current (10/350) 150 kA
Max. mains-side overcurrent protection 500
Maximum back-up fuse 500 A
Maximum continuous voltage AC 255 V
Network form TN-C
Nominal discharge current (8/20 µs) 50 kA
Nominal voltage AC (50/60 Hz) 230 V
Operating temperature, max. 85 °C
Operating temperature, min. -40 °C
Pole version 3
Protection rating IP54
Remote signalling no
Response time <100 ns
Short-circuit resistance 25 kA
Short-circuit resistance for max. mains-side overcurrent protection 25 kA
Signalling on device None
SPD to EN 61643-11 Type 1
SPD to IEC 61643-1 Class I
Test class, type 1 yes
TN network form yes
TN-C network form yes
Version for 3-pole; 255 V
All types

All types

Types Item no. Quantity SSU
VG 3-B TNC 5089212
1 piece
