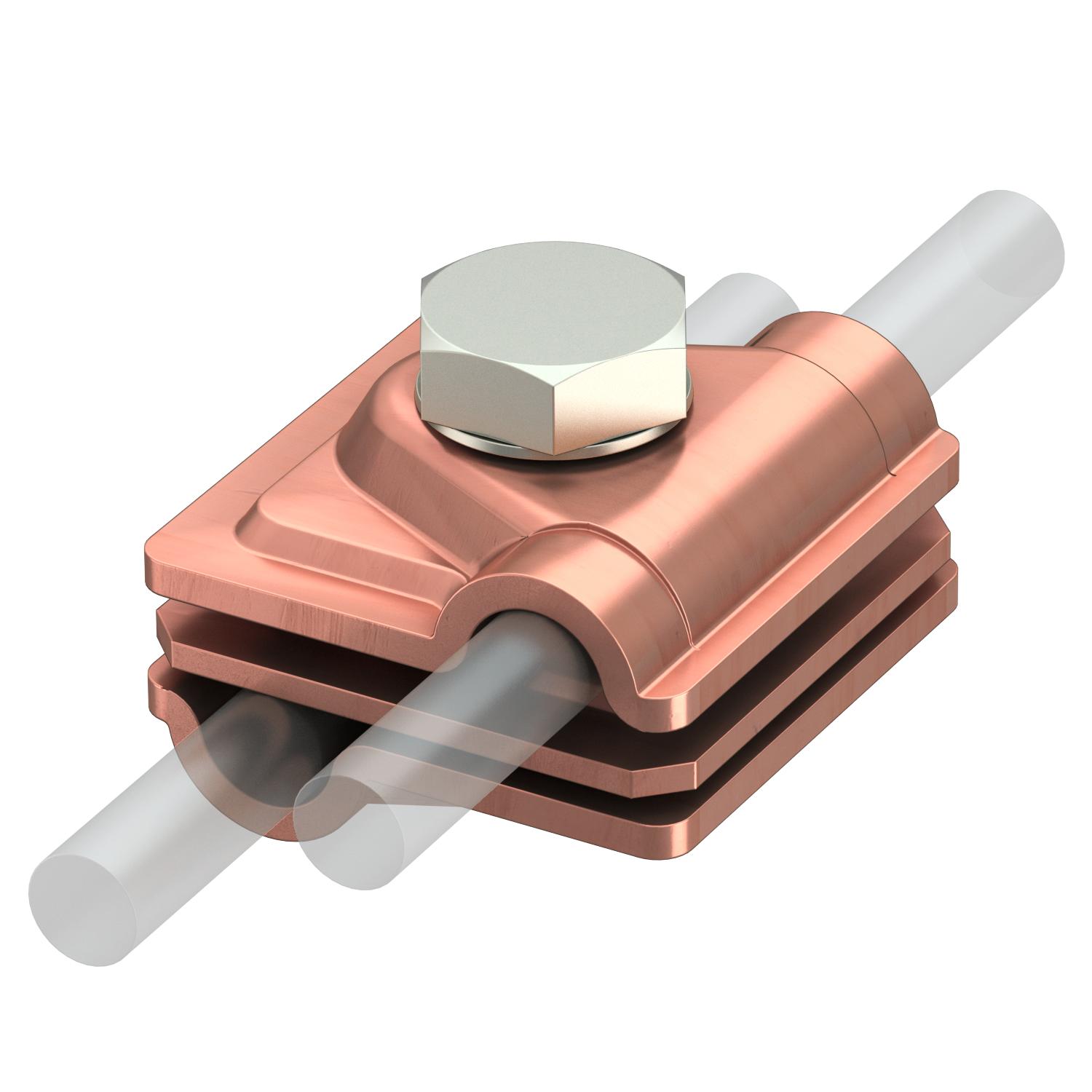

Vario quick connector Rd 6-8 / Rd 6-8 mm Cu
Item no. 5311407 | EAN 4012196416912
- Product description
-
Product description• For T, cross-over and parallel connections with adapter plates
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel (A2)
• With sprung washer to DIN 137
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data

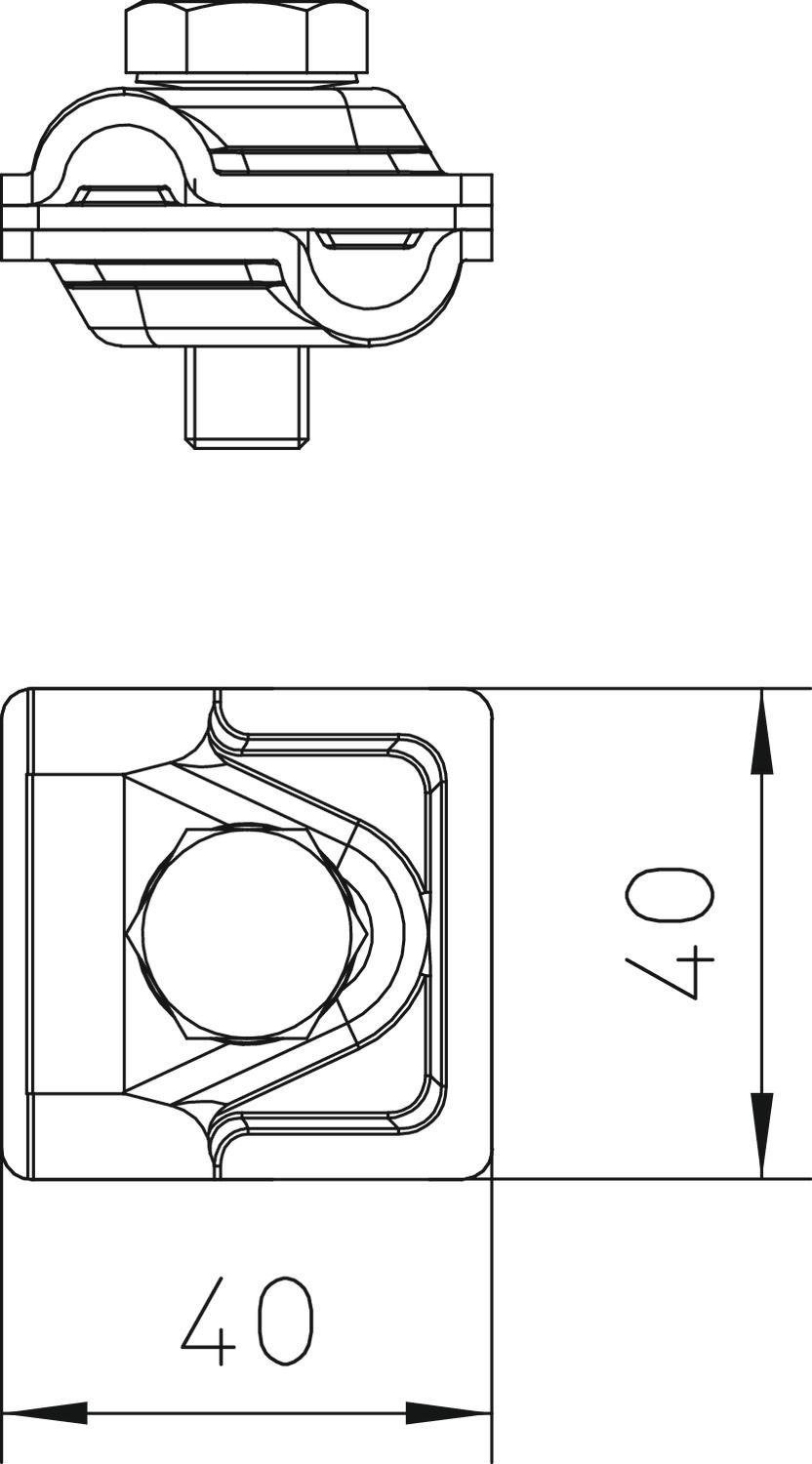

Dimension 40x40mm Dimension A 40 mm Fit RD 6-8 / 6-8 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Copper Suitable for connection Round conductor Rd 6-8 / Rd 6-8 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 6-8 CU / 5311407 , 0.17MB , pdfREACH Declaration of conformity 249 6-8 CU / 5311407 , 0.12MB , pdfRoHS Declaration of conformity 249 6-8 CU / 5311407 , 0.12MB , pdf
