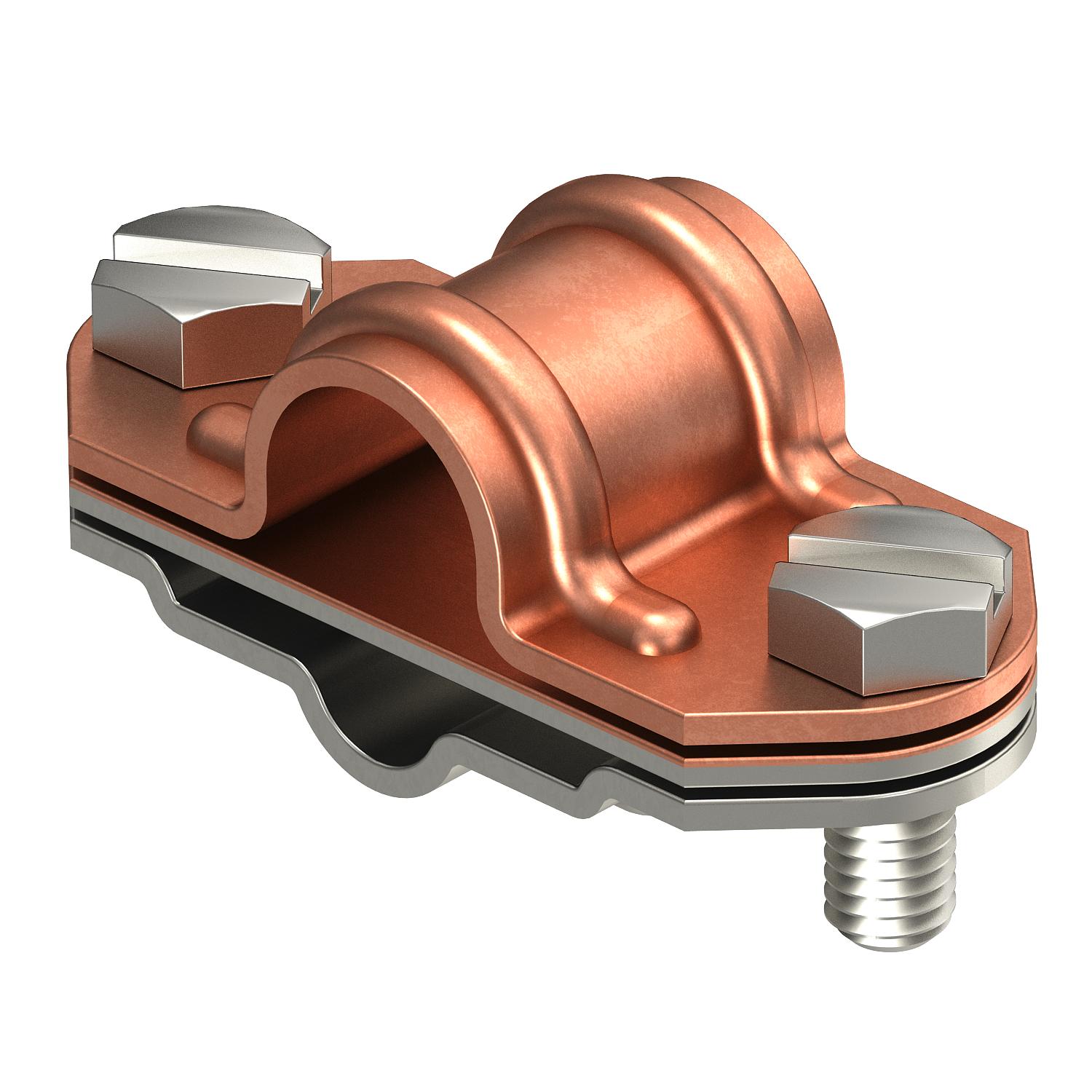

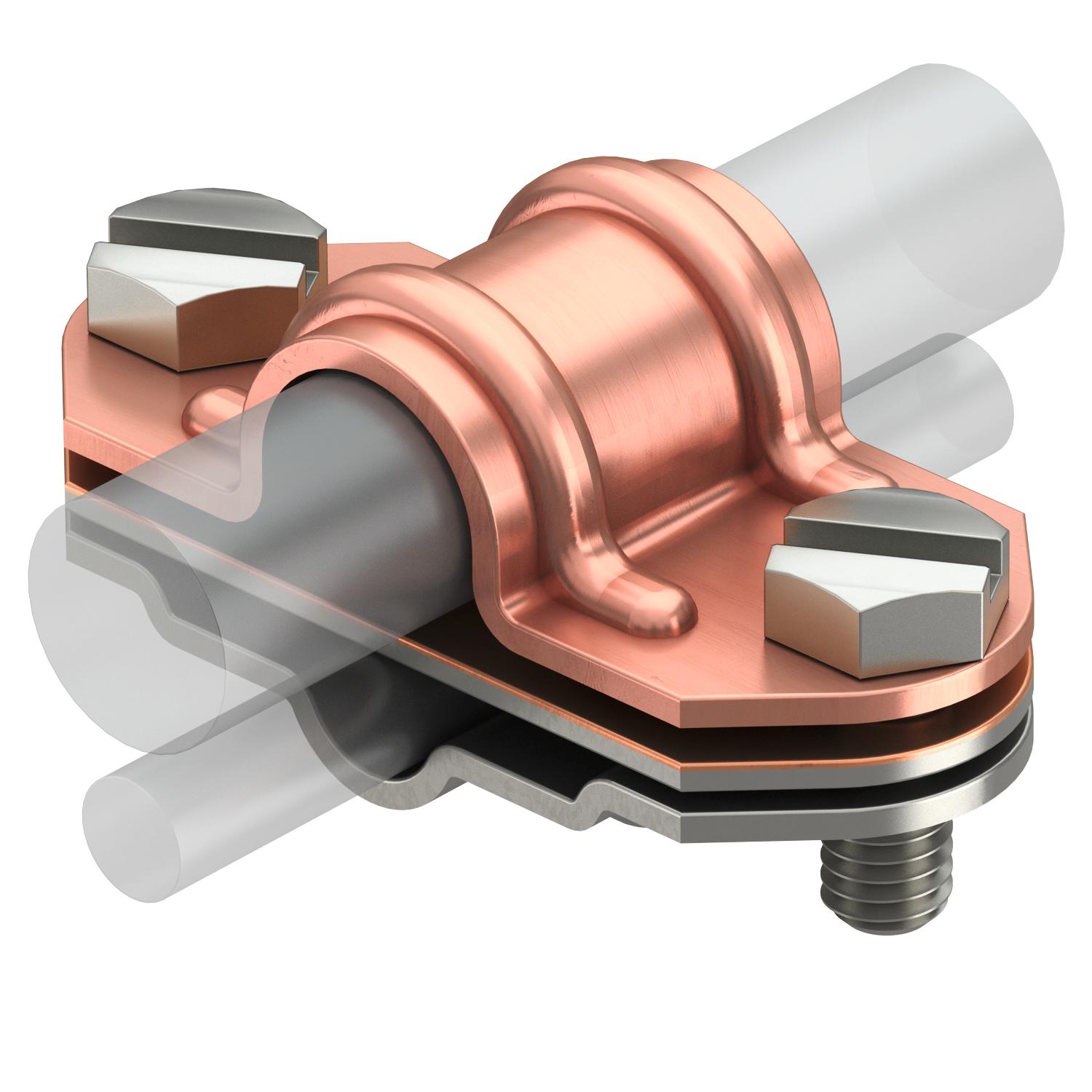

Universal bi-metal separating piece, Rd 16 copper, Rd 8-10 A2
Item no. 5336090 | EAN 4012195424451
- Product description
-
Product description• Fit: Rd 8-10 x 16, FL 30 x Rd 16
• With 2 hexagonal bolts M8 x 20, stainless steel (VA)
• Intermediate plate, aluminium/copper
- Technical data
-
Technical data
Bimetal connector yes Dimension FL30/8-10x16 Fit Rd 8-10/FL30 x 16 mm Intermediate plate yes Material Stainless steel Material lower part VA Material upper part Cu Suitable for connection Round conductor Rd 16 / flat conductor Fl 30 - All types
- Downloads
-
Data sheet 226 ZV CU / 5336090 , 0.19MB , pdfEU declaration of conformity 226 ZV CU / 5336090 , 0.06MB , pdfREACH Declaration of conformity 226 ZV CU / 5336090 , 0.12MB , pdfRoHS Declaration of conformity 226 ZV CU / 5336090 , 0.12MB , pdf
