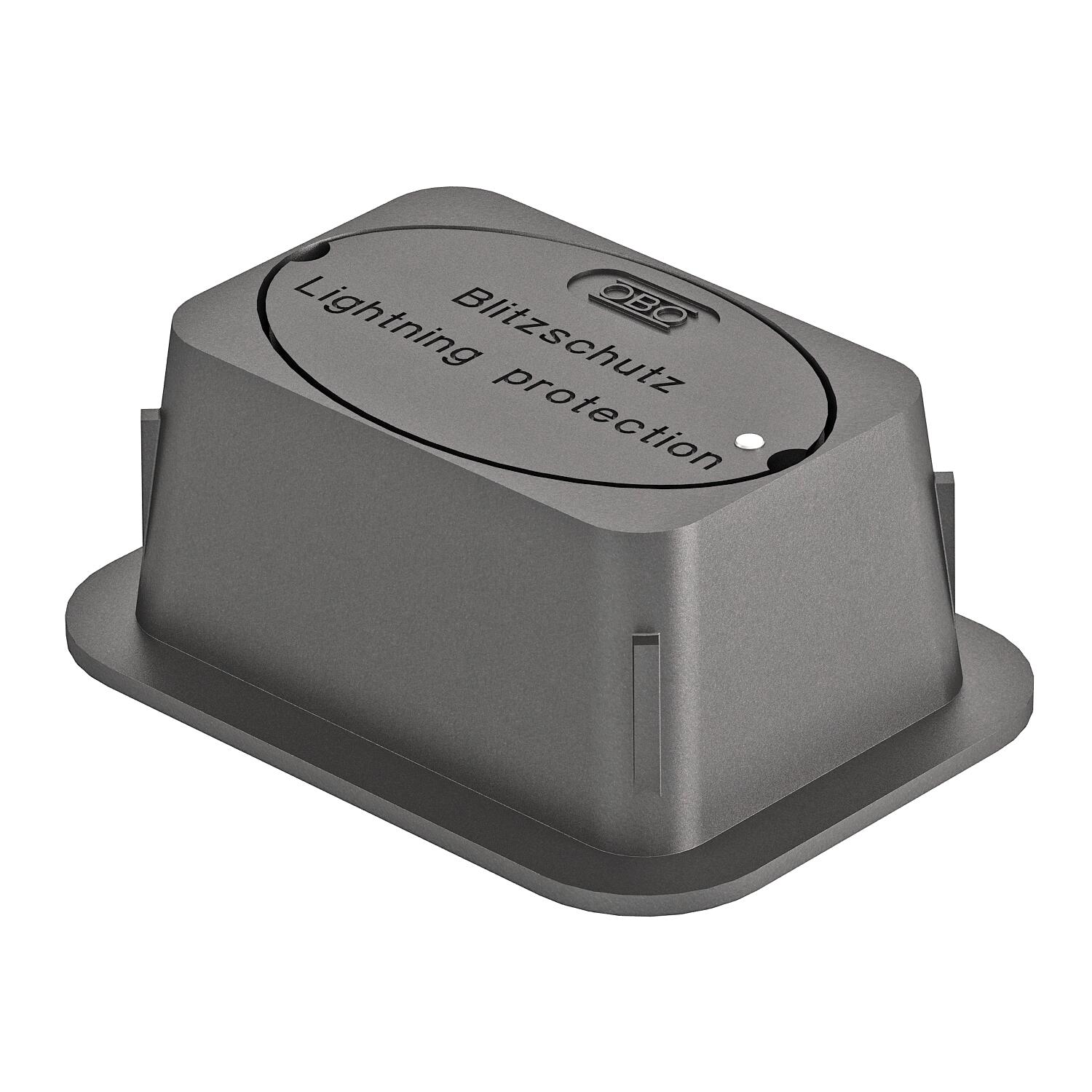

Underfloor test box, cast iron
Item no. 5106002 | EAN 4012196089505
- Product description
-
Product description• Without base
• Cast iron, painted black
• Without cut-off unit
• To VDE 0185-561-5 (IEC 62561-5) suitable for heavy loads (up to 40 kN/4.0 t)
-
- Technical data
-
Technical data

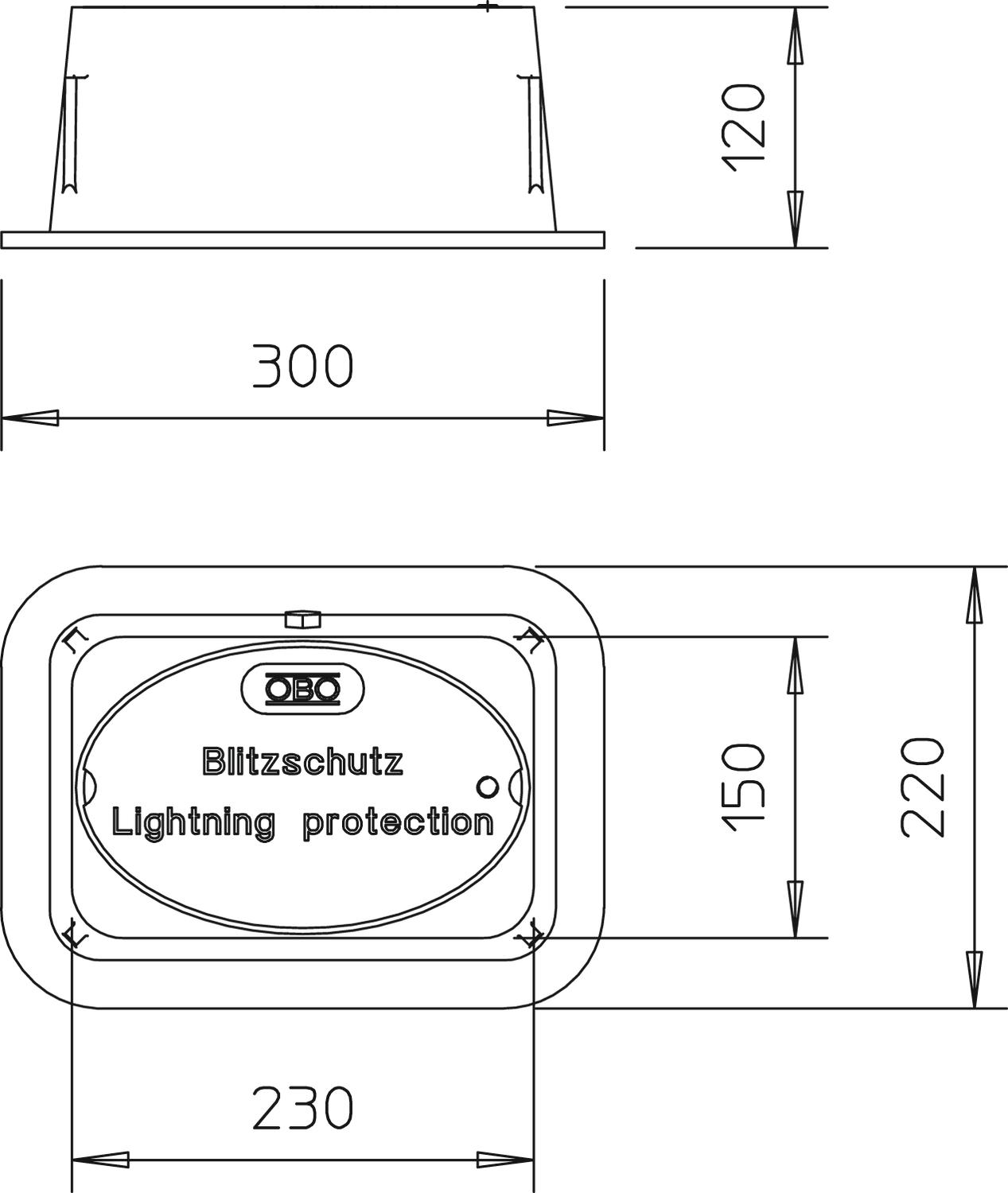

Colour Black CO₂ Footprint (GWP) Cradle-to-Gate 12,144 kg CO₂e / 1 Piece Dimension 227x155x115 Length 300 mm Material Cast iron Width 220 mm - All types
- Downloads
-
Data sheet 5700 / 5106002 , 0.20MB , pdfMounting instructions Mounting instructions, 5700; 5700 SP , 2.00MB , pdf
