TS 150 T branch piece 300 | 2.5

morepic-1

morepic-2

TS 150 T branch piece

Item no. 6906093 | EAN 4012196076208

Item no. / Types

Width

Rail thickness	2.5 mm

Product description

Product description

T-branch piece for all TS150 cable ladder types of 150 mm side height.
Accessory radius = 450 mm.

Technical data

Technical data

Dimension	1652x976x150
Height	150 mm
Material	Steel

Rail thickness	2,5 mm
Surface	Hot-dip galvanised
Width	300 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
TS150 300 HDG	300 mm	2.5 mm	6906093		1
TS150 450 HDG	450 mm	2.5 mm	6906097		1
TS150 600 HDG	600 mm	2.5 mm	6906101		1
TS150 900 HDG	900 mm	2.5 mm	6906105		1

Downloads

Data sheet TS150 300 HDG / 6906093 , 0.10MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

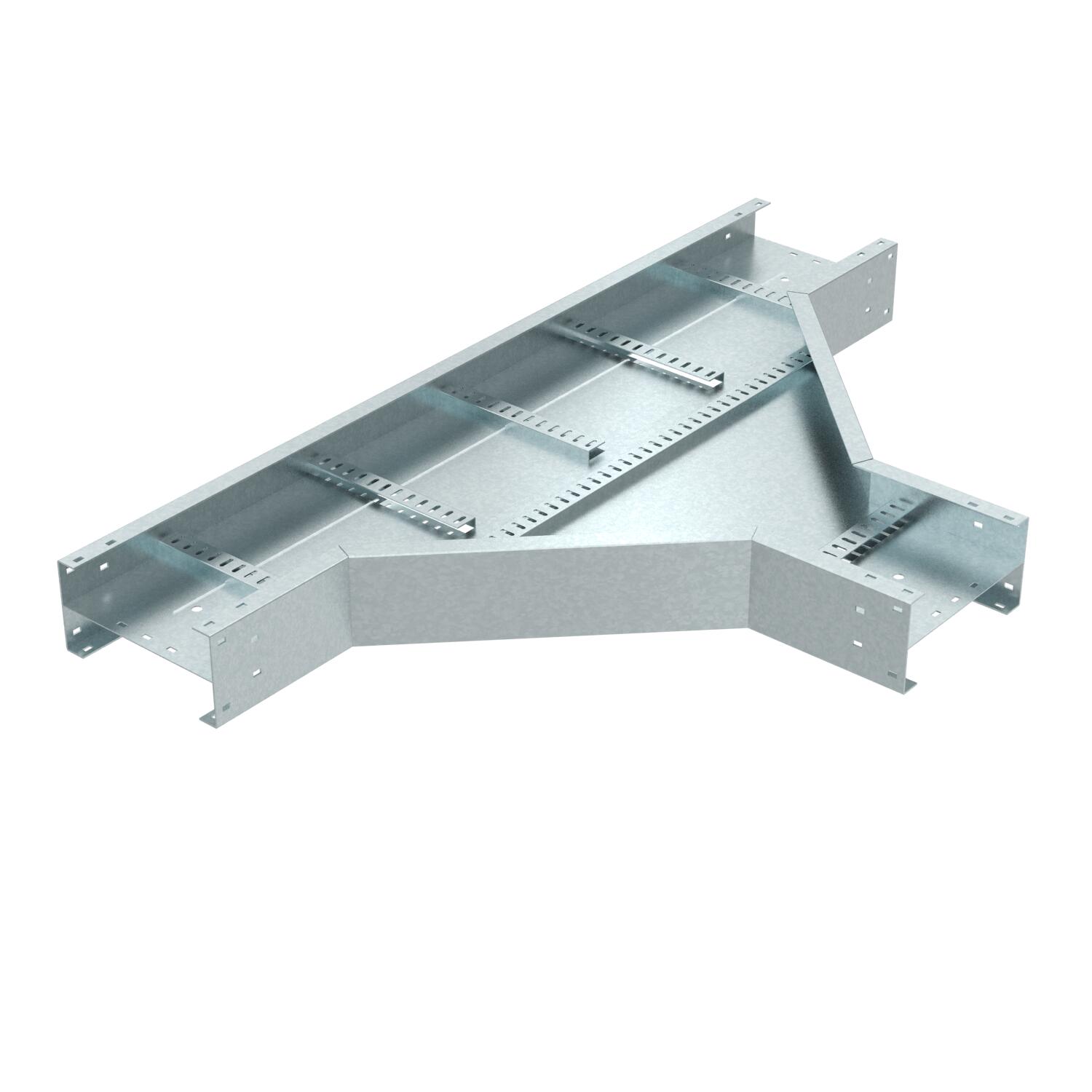

Product graphic TS150 300 HDG / 6906093, 75.44 kB, jpg

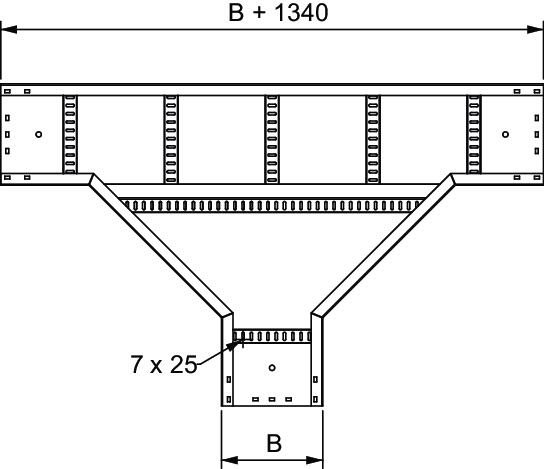

Scale drawing TS150 300 HDG / 6906093, 3.59 kB, jpg
