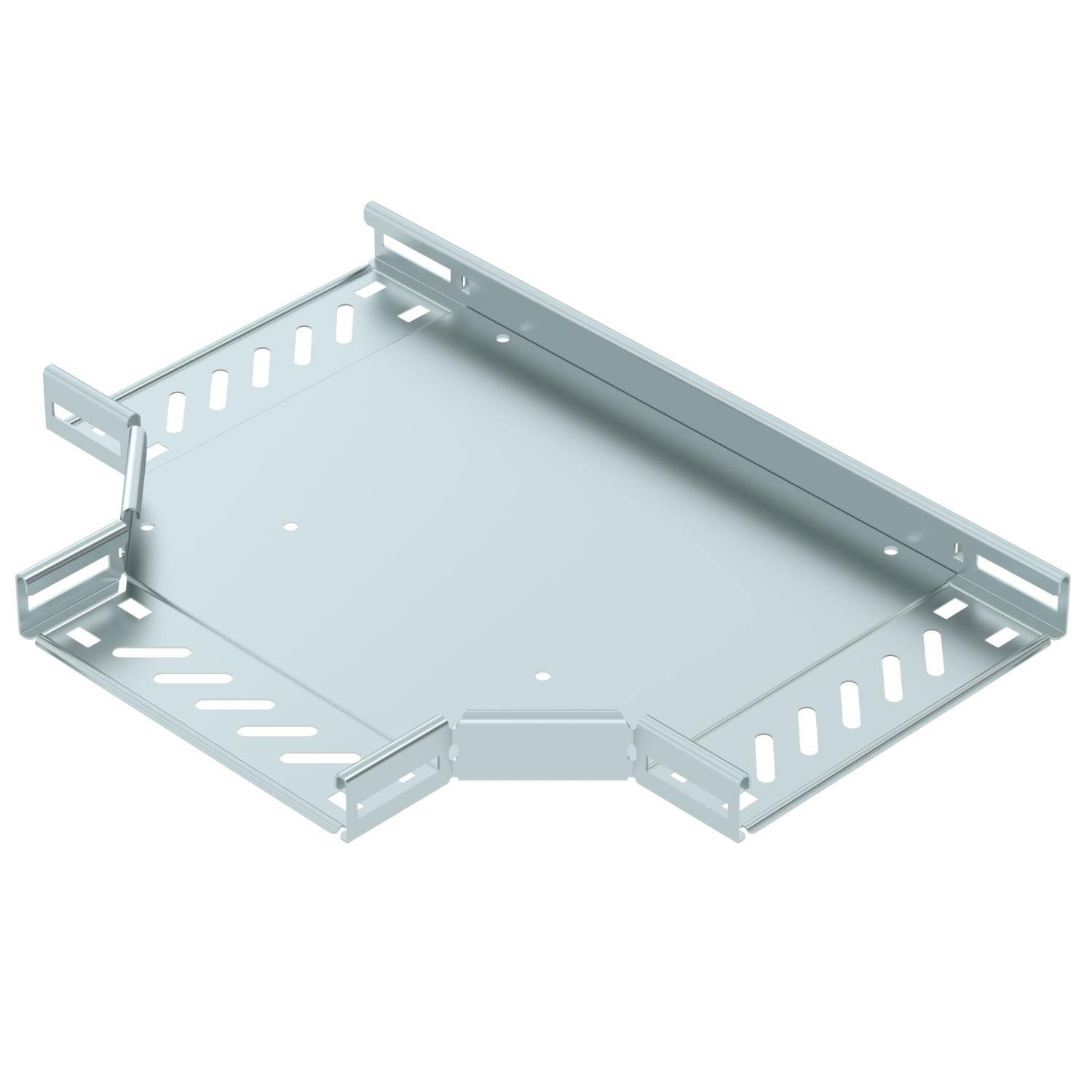

T piece 35 FS
Item no. 6038002 | EAN 4012197346560
- Product description
-
Product descriptionT piece for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 35 mm. Screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data
Colour zinc Connector version Integrated connector Dimension 35x200 Dimension B 200 mm Height 35 mm Maintain electrical functions no Material Steel NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 0,8 mm Rail thickness 1,25 mm Recommended quantity of bolts 12 St. Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 200 mm Width of the branch 200 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Cover, T piece FS
RTD 200 FS 6038604 1 piece - Downloads
-
