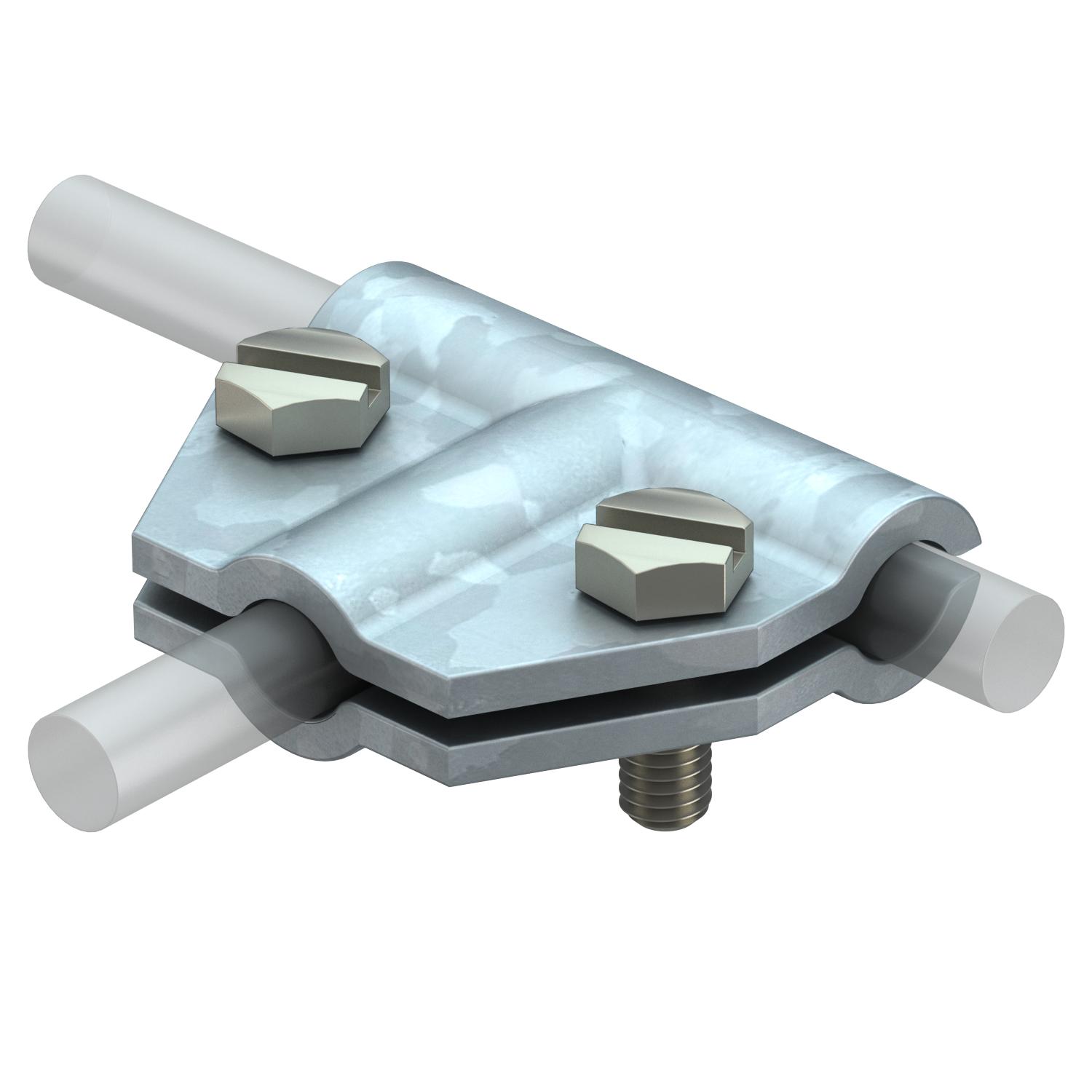

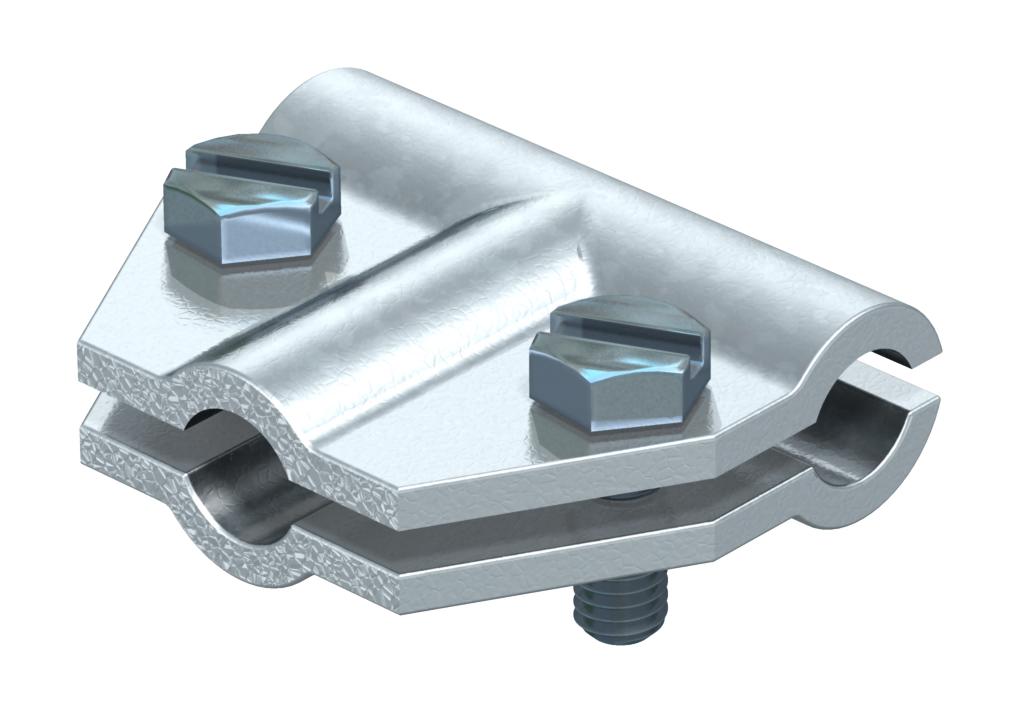

T connector Rd 8−10 mm FT
Item no. 5311101 | EAN 4012195417378
- Product description
-
Product description• With 2 hexagonal bolts M6 x 16 (VA)
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
-
- Technical data
-
Technical data
Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Steel Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector T connector Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 245 8-10 FT / 5311101 , 0.17MB , pdfEU declaration of conformity 245 8-10 FT / 5311101 , 0.06MB , pdf
