T branch piece TS225 300 | 2.5

morepic-1

morepic-2

T branch piece TS225

Item no. 6906293 | EAN 4012196076475

Item no. / Types

Width

Rail thickness	2.5 mm

Product description

Product description

T-branch piece for all TS225 cable ladder types of 225 mm side height.
Accessory radius = 450 mm.

Technical data

Technical data

Dimension	1652x976x225
Height	225 mm
Material	Steel

Rail thickness	2,5 mm
Surface	Hot-dip galvanised
Width	300 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
TS225 300 HDG	300 mm	2.5 mm	6906293		1
TS225 450 HDG	450 mm	2.5 mm	6906297		1
TS225 600 HDG	600 mm	2.5 mm	6906301		1
TS225 900 HDG	900 mm	2.5 mm	6906305		1

Downloads

Data sheet TS225 300 HDG / 6906293 , 0.12MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

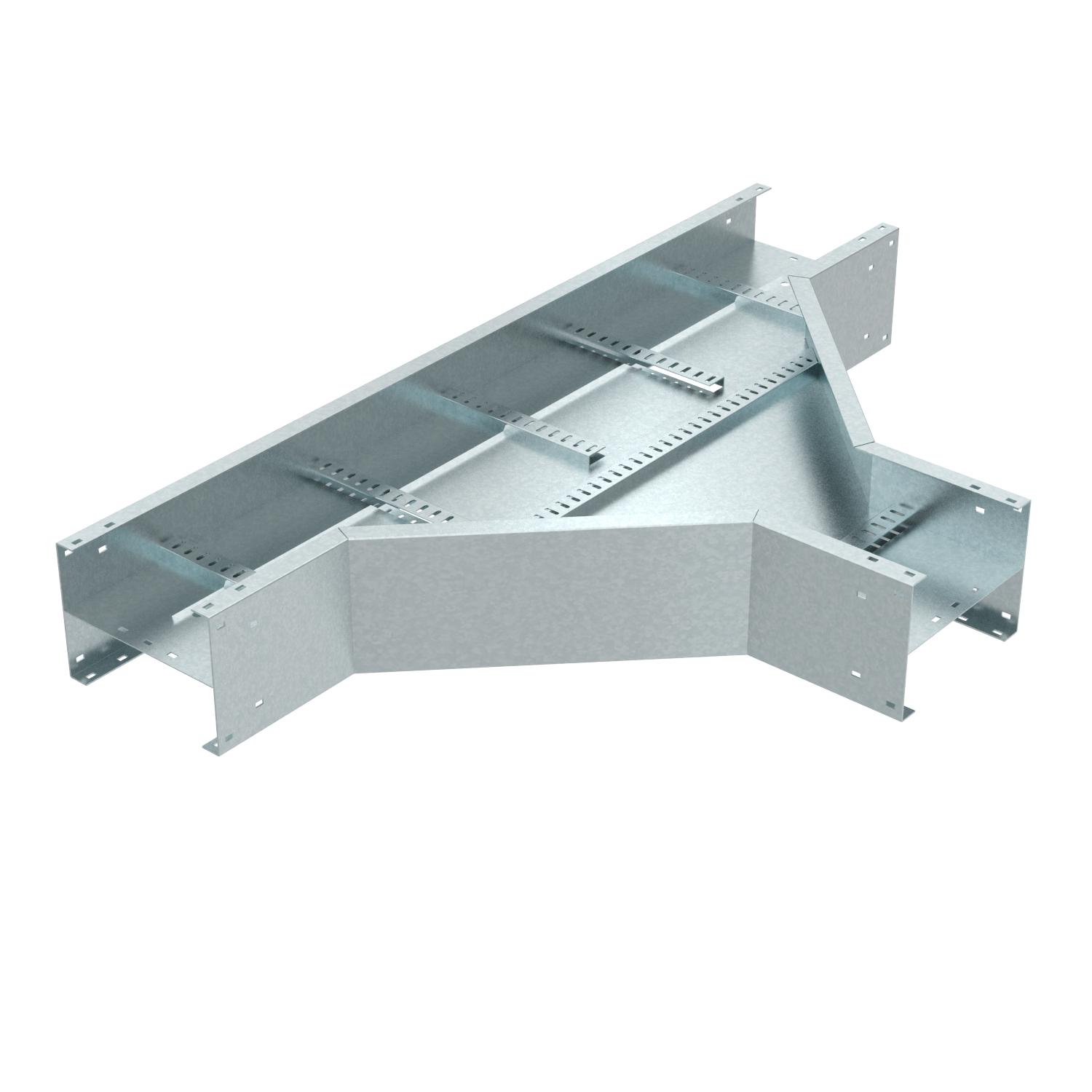

Product graphic TS225 300 HDG / 6906293, 78.26 kB, jpg

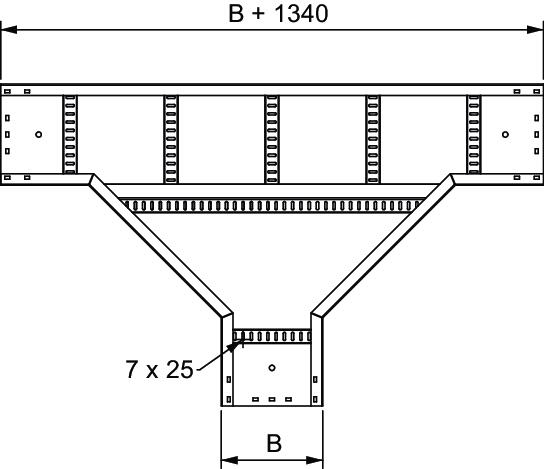

Scale drawing TS225 300 HDG / 6906293, 3.59 kB, jpg

TS225 300 HDG / 6906293
