T branch piece PS75

Item no. 6903603 | EAN 4012196070954

Item no. / Types

Width

Rail thickness	2 mm

Product description

Product description

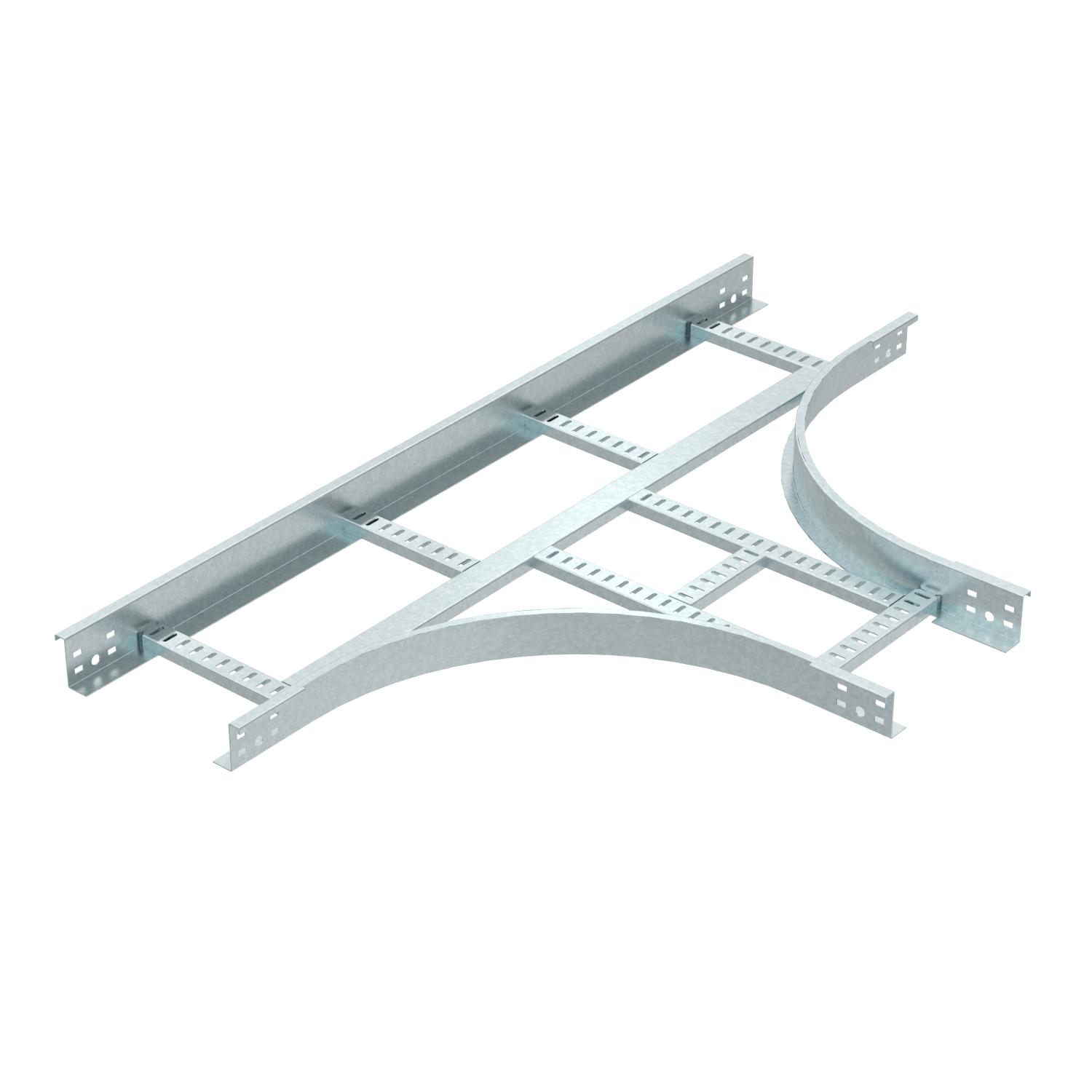

T-branch piece for all PS75 cable ladder types of 75 mm side height.

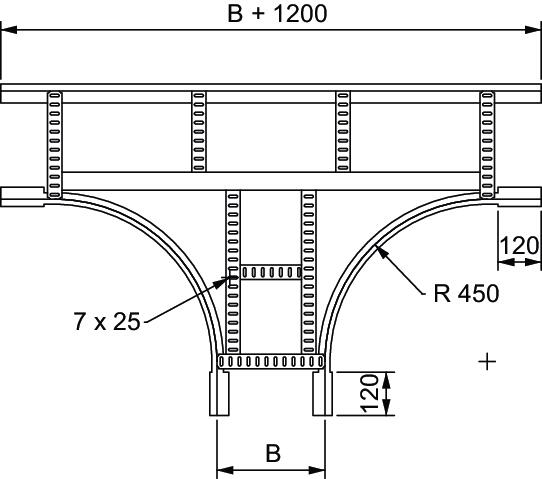

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	1350x770x75
Height	75 mm
Material	Steel

Rail thickness	2 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
PS75 150 HDG	150 mm	2 mm	6903603	1
PS75 200 HDG	200 mm	2 mm	6903607	1
PS75 300 HDG	300 mm	2 mm	6903611	1
PS75 400 HDG	400 mm	2 mm	6903615	1
PS75 500 HDG	500 mm	2 mm	6903619	1
PS75 600 HDG	600 mm	2 mm	6903623	1
PS75 800 HDG	800 mm	2 mm	6903627	1
PS75 1000 HDG	1000 mm	2 mm	6903631	1
