T branch piece PS100

Item no. 6903903 | EAN 4012196071678

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

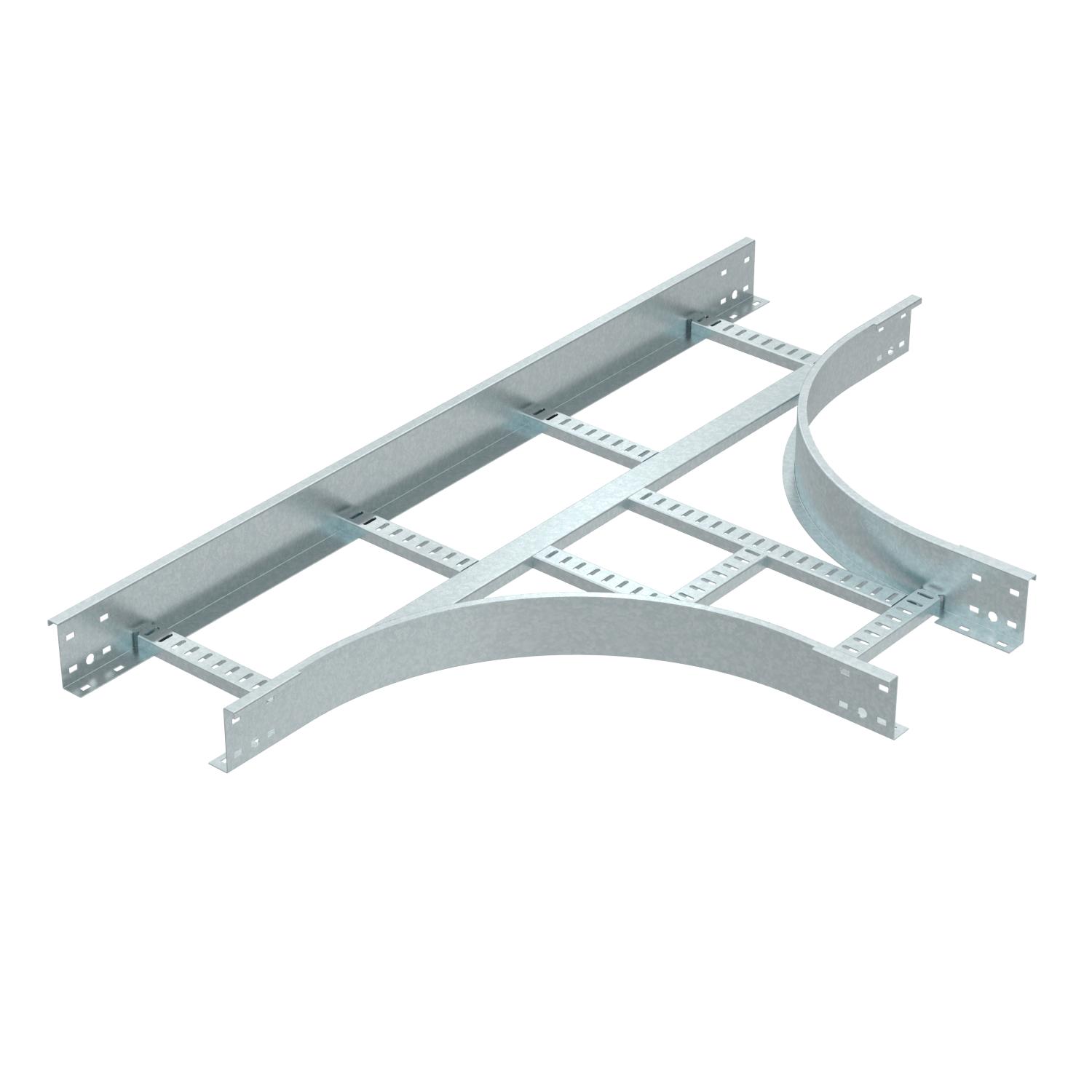

T-branch piece for all PS100 cable ladder types of 100 mm side height.

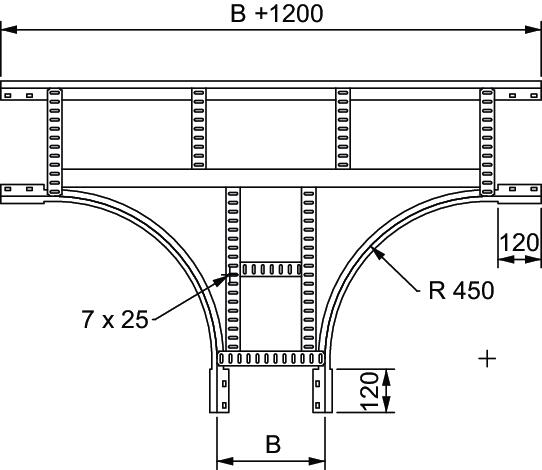

Accessory radius = 450 mm. Accessory radius for 650 mm and 1000 mm available on request.

Technical data

Technical data

Dimension	1350x770x100
Height	100 mm
Material	Steel

Rail thickness	1,5 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	SSU
PS100 150 HDG	150 mm	1.5 mm	6903903	1
PS100 200 HDG	200 mm	1.5 mm	6903907	1
PS100 300 HDG	300 mm	1.5 mm	6903911	1
PS100 400 HDG	400 mm	1.5 mm	6903915	1
PS100 500 HDG	500 mm	1.5 mm	6903919	1
PS100 600 HDG	600 mm	1.5 mm	6903923	1
PS100 800 HDG	800 mm	1.5 mm	6903927	1
PS100 1000 HDG	1000 mm	1.5 mm	6903931	1
