T branch piece AI25 150 | 5

morepic-1

morepic-2

T branch piece AI25

Item no. 6907203 | EAN 4012196078165

Item no. / Types

Width

Rail thickness	5 mm

Product description

Product description

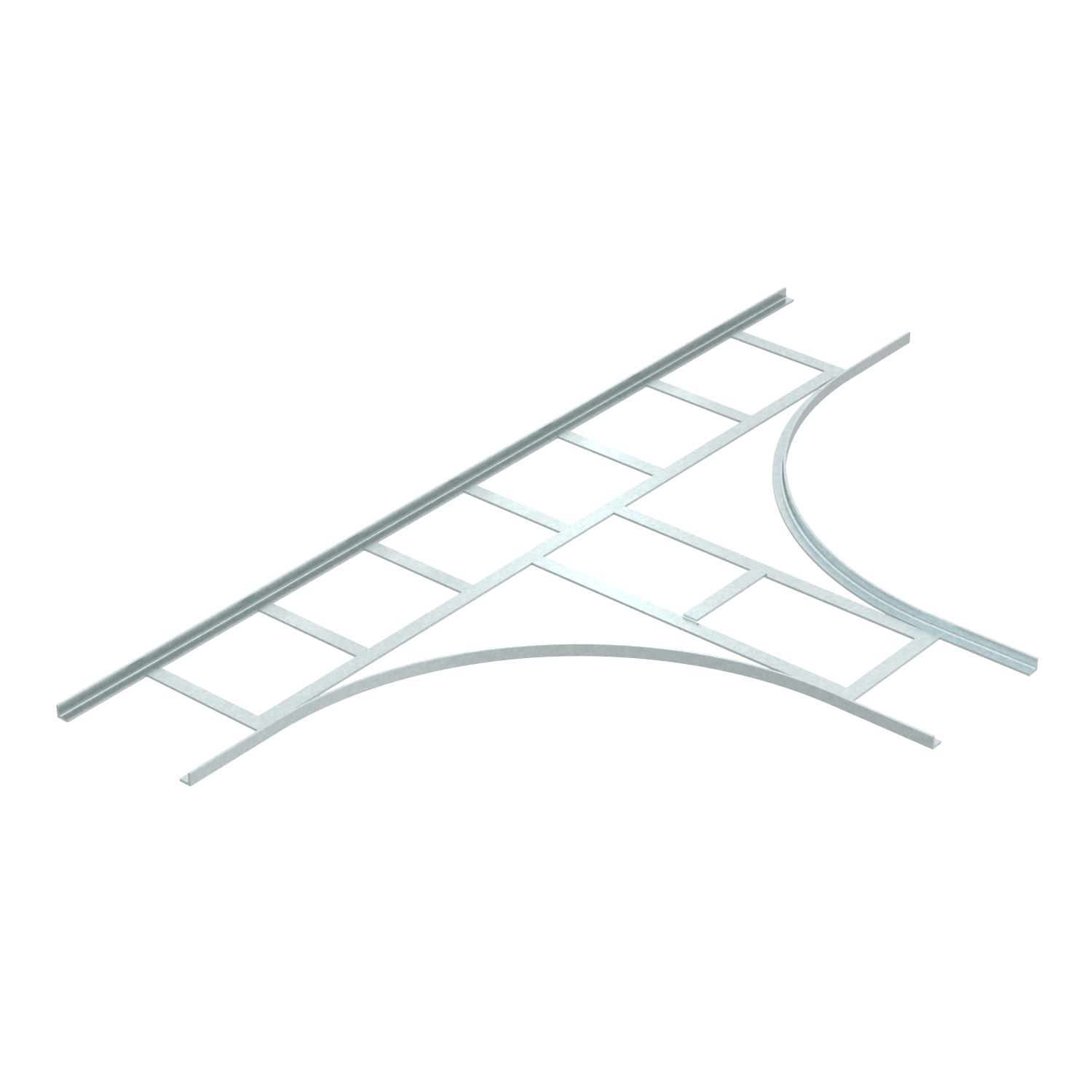

T-branch piece for all AI25 cable ladder types of 25 mm side height.

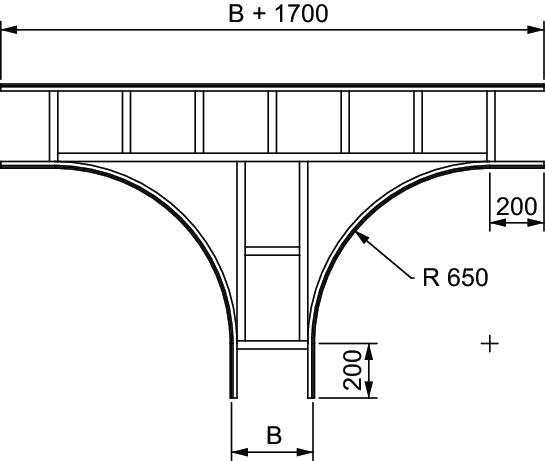

Accessory part radius = 650 mm.

Technical data

Technical data

Dimension	1850x1000x25
Height	25 mm
Material	Steel

Rail thickness	5 mm
Surface	Hot-dip galvanised
Width	150 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
AI25 150 HDG	150 mm	5 mm	6907203		1
AI25 200 HDG	200 mm	5 mm	6907207		1
AI25 300 HDG	300 mm	5 mm	6907211		1
AI25 400 HDG	400 mm	5 mm	6907215		1
AI25 500 HDG	500 mm	5 mm	6907219		1
AI25 600 HDG	600 mm	5 mm	6907223		1
AI25 800 HDG	800 mm	5 mm	6907227		1
AI25 1000 HDG	1000 mm	5 mm	6907231		1

Downloads

Data sheet AI25 150 HDG / 6907203 , 0.09MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic AI25 150 HDG / 6907203, 49.00 kB, jpg

Scale drawing AI25 150 HDG / 6907203, 3.63 kB, jpg

AI25 150 HDG / 6907203
