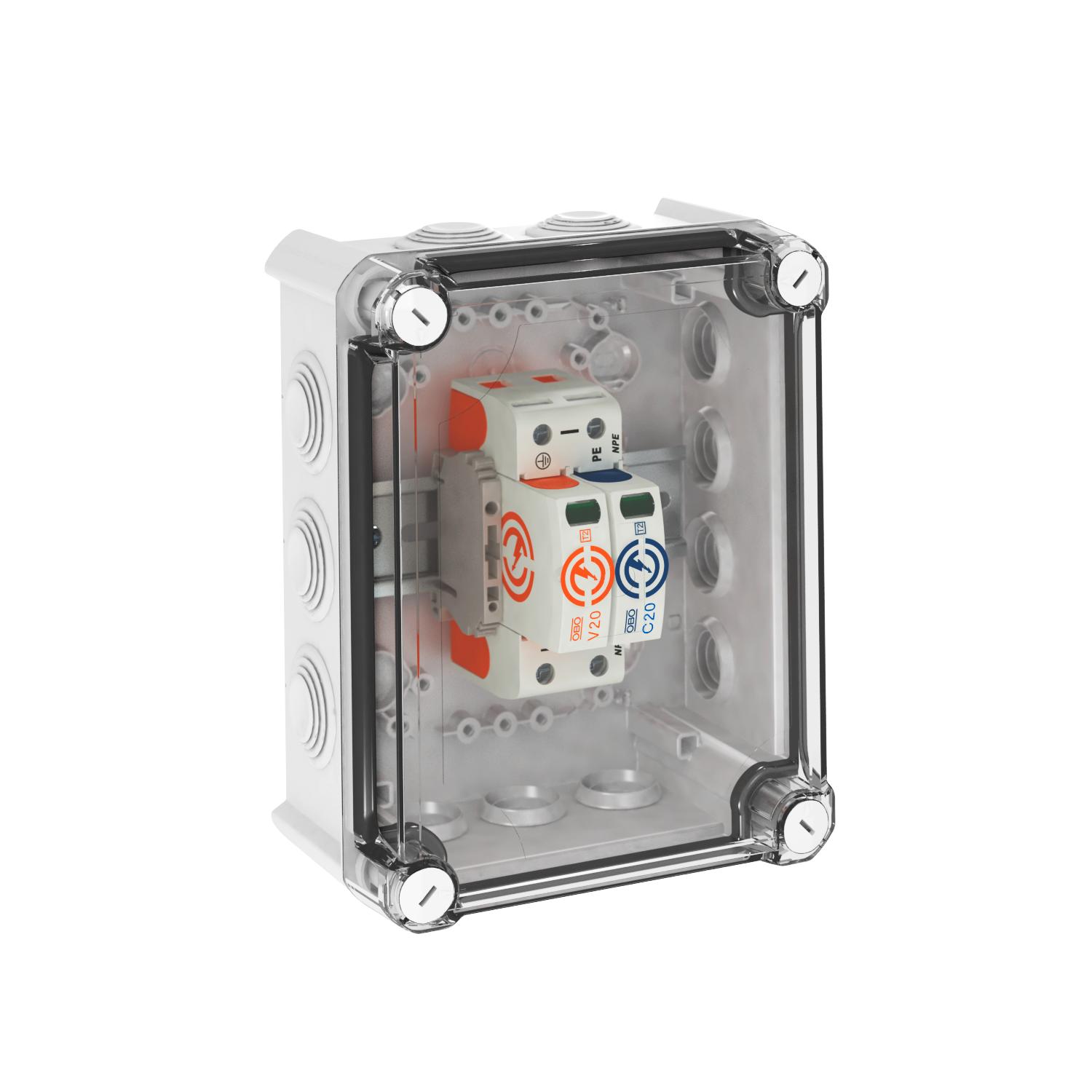

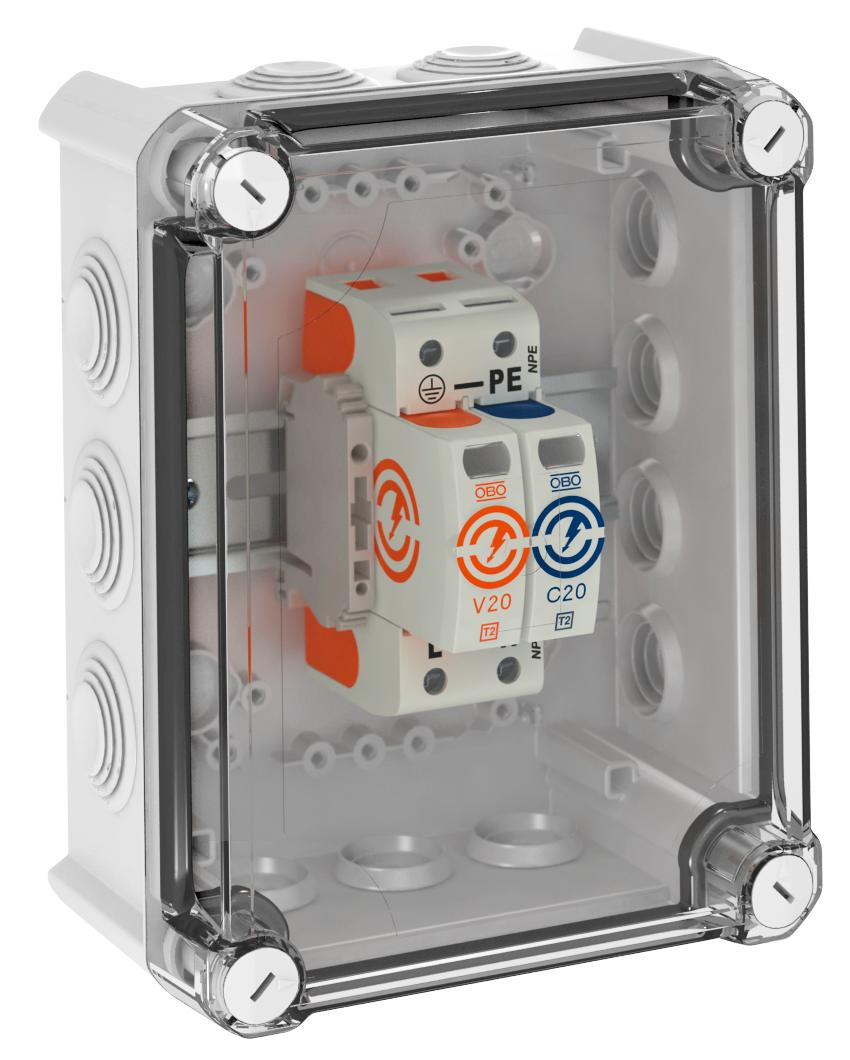

System solution, surge arrester V20 in housing, 1-pole + NPE, 280 V

Item no. 5095381 | EAN 4012196423194

280 V
IP66
Product description
Product description
Surge arrester, type 2, according to DIN EN 61643-11

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Complete unit, pre-mounted and ready for connection in polycarbonate housing (IP66)
• Arresting capacity to 40 kA (8/20) per pole through high-performance varistors

Application: Equipotential bonding in main and sub-distributors.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
  • Halogen-free; without chlorine, fluorine and bromine
Technical data

Technical data

Approvals UL
Arrester surge current (8/20 µs) [total] 60 kA
Conductor cross-section, flexible (fine-wire), max. 35 mm²
Conductor cross-section, flexible (fine-wire), max. 2 AWG
Conductor cross-section, flexible (fine-wire), min. 1,5 mm²
Conductor cross-section, flexible (fine-wire), min. 16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max. 2 AWG
Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 16 AWG
Conductor cross-section, rigid (single-wire/multiwire), min. 1,5 mm²
Connection cross-section, FM terminals, max. 1,5 mm²
Connection cross-section, FM terminals, max. 16 AWG
Connection cross-section, FM terminals, min. 0,5 mm²
Connection cross-section, FM terminals, min. 21 AWG

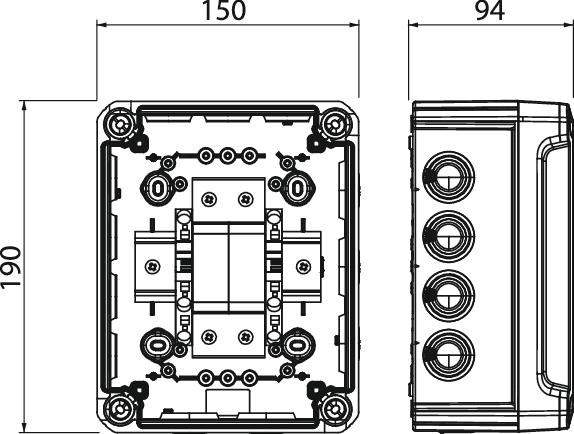

Dimension 280V
Follow current quenching capacity (eff) [N-PE] 0,1 kA
Installation type Pre-mounted in the housing
Integrated back-up fuse no
Max. mains-side overcurrent protection 160 A gL/gG
Maximum back-up fuse 160 A
Maximum continuous voltage (L-N) 280 V
Maximum continuous voltage (N-PE) 255 V
Maximum continuous voltage AC 280 V
Maximum continuous voltage DC 350 V
Maximum discharge current (8/20 μs) 40 kA
Maximum discharge current (8/20 μs) [L-N] 40 kA
Minimum distance 1,5 mm
Network form Other
Nominal discharge current (8/20 µs) 20 kA
Nominal discharge current (8/20 µs) [L-N] 20 kA
Nominal discharge current (8/20 µs) [N-PE] 40 kA
Nominal voltage AC (50/60 Hz) 230 V
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C

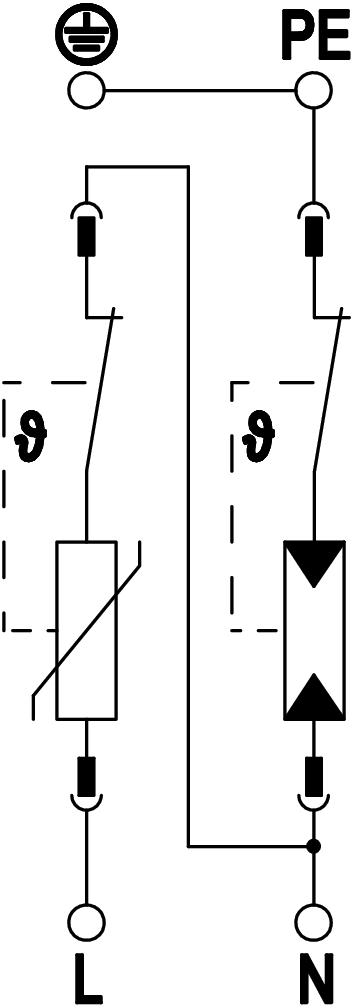

Pole version 1+N/PE
Protection level [L-N] ≤1,3
Protection rating IP66
Remote signalling no
Residual voltage [L-N] @ 1 kA 0,7 kV
Residual voltage [L-N] @ 5 kA 0,9 kV
Response time <25 ns
Short-circuit resistance for max. mains-side overcurrent protection 50 kA eff
Short-circuit resistant yes
Signalling on device Visual
SPD to EN 61643-11 Type 2
SPD to IEC 61643-1 Class II
SPD to UL 1449 Type 4
Test class, type 2 yes
Torque 4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min. 440 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s 335 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms 1200 V
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
VG-V20-1+NPE-280 1+N/PE 280 V IP66 5095381
1 piece
VG-V20-3+NPE-280 3+N/PE 280 V IP66 5095383
1 piece
