SurgeController V20, plug-in arrester, leak current-free 1 | 385 | IP20
morepic-1 morepic-2 video-1

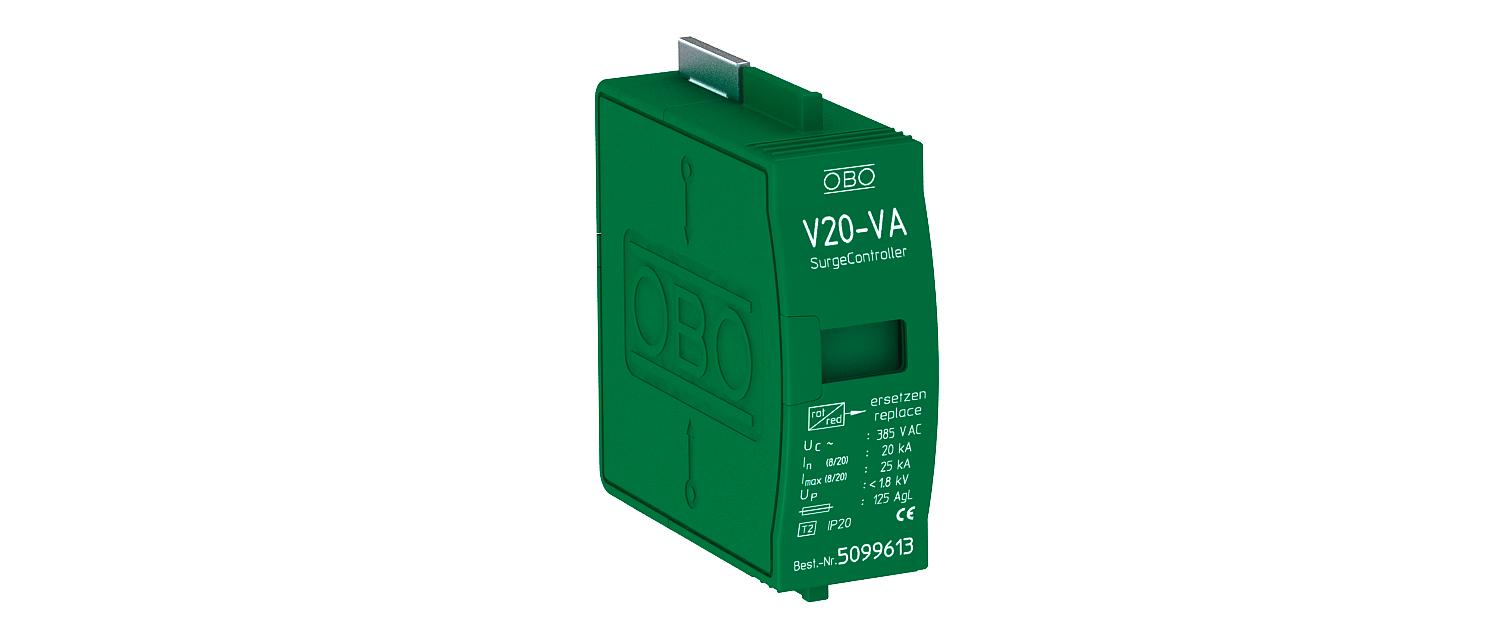

SurgeController V20, plug-in arrester, leak current-free

Item no. 5099613 | EAN 4012195807612

5099613 / V20-VA 0
1
385 V
IP20
Product description
Product description
Separate cover (plug-in).



• Suitable for use in pre-meter area (completely leakage current-free)
• Plug-in cover; cover can be separated from base without tools
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
Technical data

Technical data

Blow-out no
Dimension 385V
Installation type On basic element
Lightning protection zone LPZ 1→2
Max. mains-side overcurrent protection 125
Maximum back-up fuse 125 A
Maximum continuous voltage AC 385 V
Maximum discharge current (8/20 μs) 25 kA
Network form Other
Nominal discharge current (8/20 µs) 20 kA
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Pole version 1
Protection rating IP20
Remote signalling no
Response time <100 ns
Signalling on device Visual
SPD to EN 61643-11 Type 2
SPD to IEC 61643-1 Class II
Version for 1-pole cover; 385 V
All types

All types

Types Pole version Maximum continuous voltage AC Protection rating Item no. Quantity SSU
V20-VA 0 1 385 V IP20 5099613
1 piece
