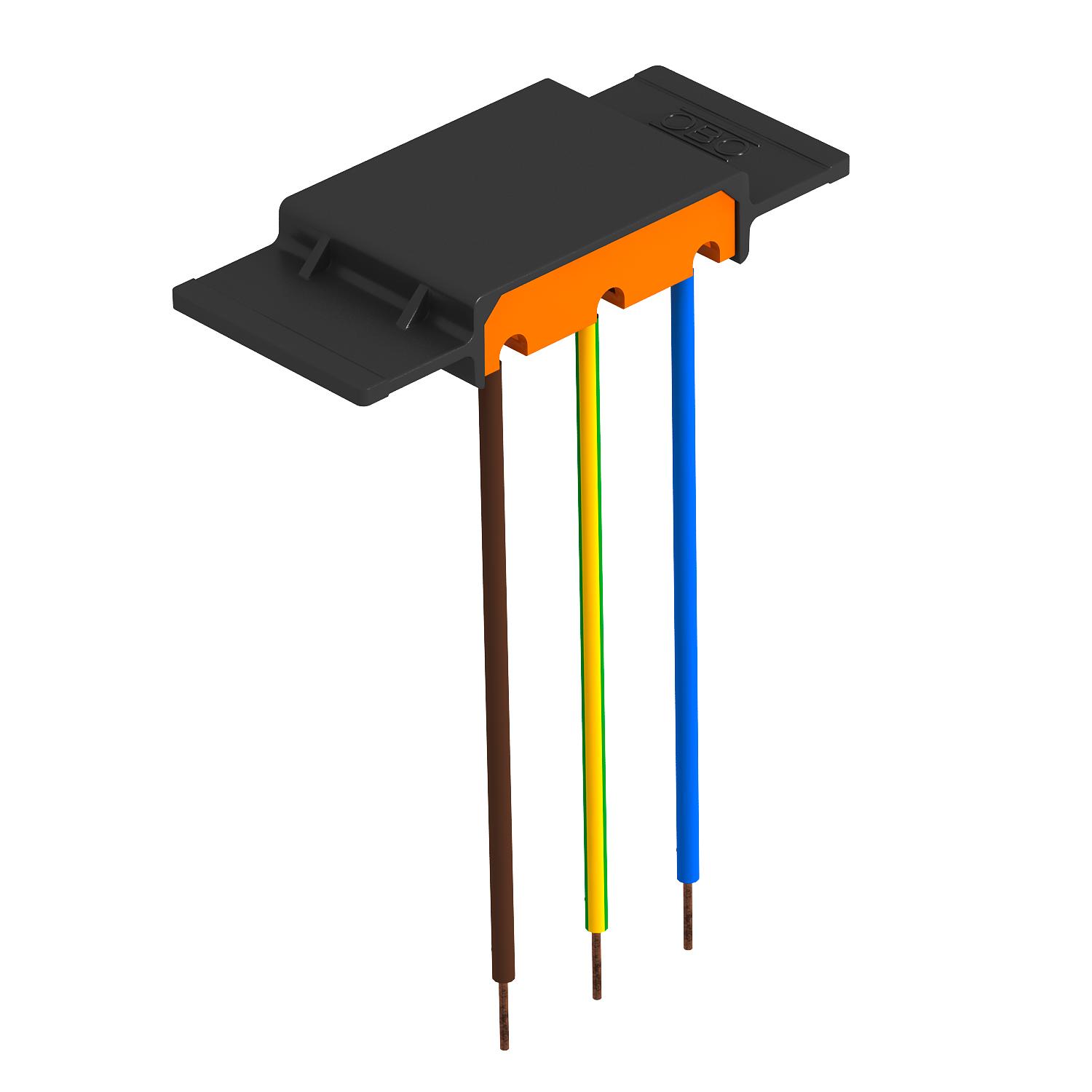

Surge protection module 230 V with holder for GB2 and GB3 mounting boxes
Item no. 5092472 | EAN 4012195613596
- Product description
-
Product descriptionSurge protection module type 3 to DIN EN 61643-11 for 230 V power grids.
• With acoustic defect signal
• With low construction height and Y circuit
• With halogen-free plastic (UL 94 V-0)
• Holder with separating retainer function for GB2 / GB3 mounting boxes and UT3 and UT4 universal supports
Application: Universally applicable for all installation systems.
2-pin, 16 A/250 V~, with acoustic defect signal.
-
- Technical data
-
Technical data
Cable type for surge protection devices Power cable AV Combined voltage protection level [L-PE] 1500 kV Dimension 255V Installation type Miscellaneous Lightning protection zone LPZ 2→3 Max. mains-side overcurrent protection 16 Maximum back-up fuse 16 A Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 6 kA Network form Other Nominal discharge current (8/20 µs) 3 kA Nominal voltage AC (50/60 Hz) 230 V OBO_Nominal load current (input/output terminal) 16 A Operating temperature, max. 60 °C Operating temperature, min. -15 °C Pole version 1 Protection level wire-earth 1500 V Protection level [L-N] ≤1500 Response time <25 ns Signalling on device Acoustic SPD to EN 61643-11 Type 3 SPD to IEC 61643-1 Class III Version for Incl. holder with partition function - All types
- Downloads
-
Data sheet ÜSM-A-4 / 5092472 , 0.23MB , pdfEU declaration of conformity ÜSM-A-4 / 5092472 , 0.11MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdf
