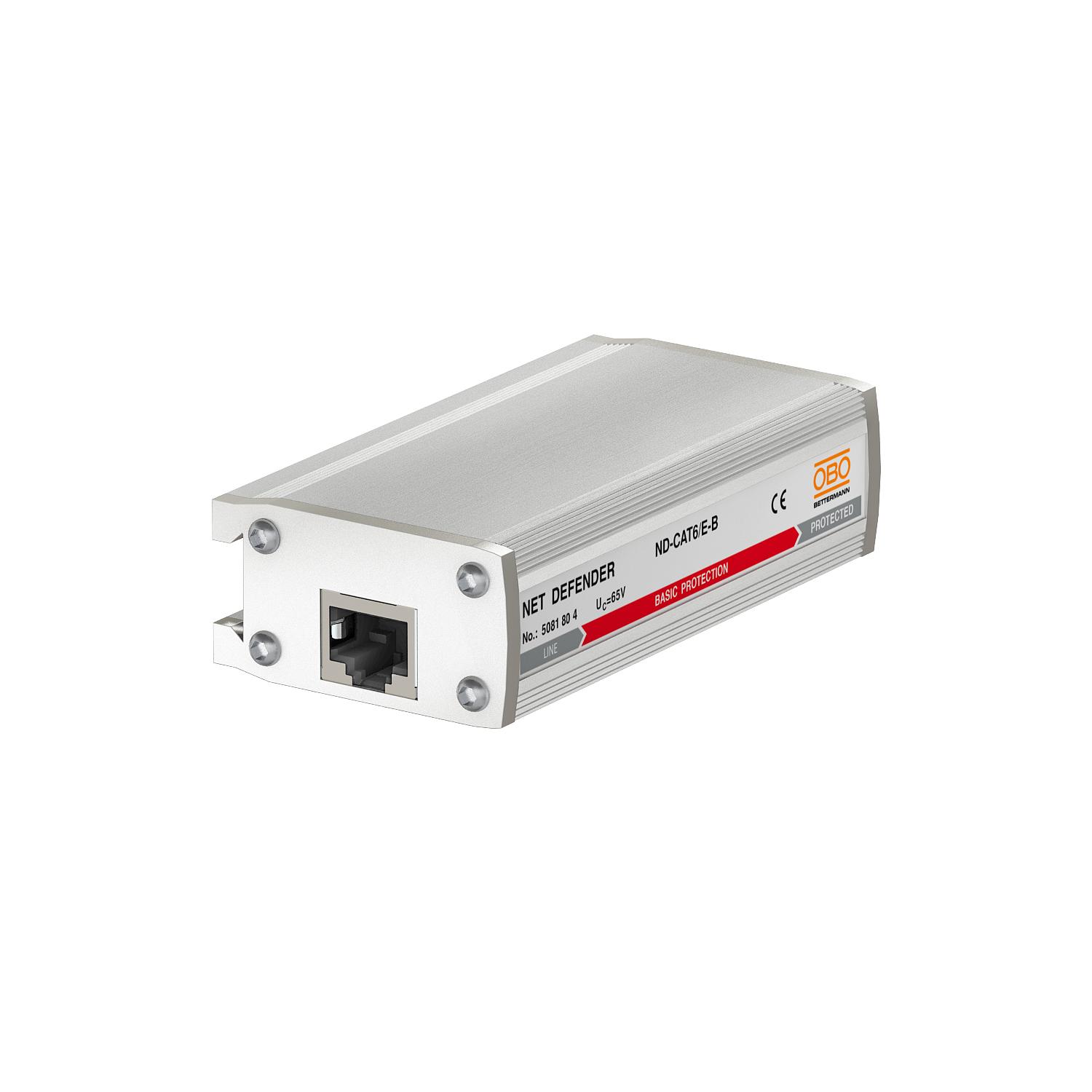

Surge protection for high-speed networks up to 1 GBit (Class ND-CAT6/E-B)

Item no. 5081804 | EAN 4012196532773

8
RJ45 8(8)
Product description

Product description

Data cable protection device for high-speed networks
• Protection class: Basic protection
• High-quality RJ45 sockets
• Low protection level at high current load
• Earthing via DIN rail or connection cable
• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3
• Tested transmission quality in networks up to 1 GBit/s (Class E) or CAT6
• Rapid installation through plug-in version
• Incl. DIN rail fastening set and earthing cable

Application example: 1 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Power over Ethernet
  • Transition from LPZ 0 to LPZ 1
  • Installation electrotechnical expertise
Technical data

Technical data

Cable type for surge protection devices Data cable CAT
Channel performance Ansi/EA CAT 6
Channel performance ISO/IEC Class E
Colour Silver grey; RAL 7001
Dimension 58V
Earthing via: Connection cable / DIN rail
Explosion-tested version no
Impulse durability wire-earth C2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wire C2: 3 kV / 1,5 kA (8/20µs)
Insertion loss ≤3 dB
Kategorie Type 1 / D1
Lightning protection zone LPZ 0→1
Material Aluminium
Maximum continuous voltage AC 46
Maximum continuous voltage DC 65
Number of poles 8
Permitted temperature range, max. 80 °C
Permitted temperature range, min. -40 °C
Plug-in system RJ45 8(8)
Protection level wire-earth <900 V
Protection level wire-wire <1100 V
Protection rating IP20
Screening Direct
Shielding connection available yes
SPD to IEC 61643-21 Class I / D1
Telecommunications contact no
Testing standard IEC 61643-21
Total discharge current (10/350) 2,5
Total discharge current (8/20) 10 kA
Version for Basic protection, 8 wires + shield
All types

All types

Types Number of poles Version for Maximum continuous voltage DC Plug-in system Item no. Quantity SSU
ND-CAT6A/EA 8 Fine protection, 8 wires + shield 58 RJ45 8(8) 5081800
1 piece
ND-CAT6/E-F 8 Fine protection, 8 wires + shield 58 RJ45 8(8) 5081802
1 piece
ND-CAT6/E-B 8 Basic protection, 8 wires + shield 65 RJ45 8(8) 5081804
1 piece
