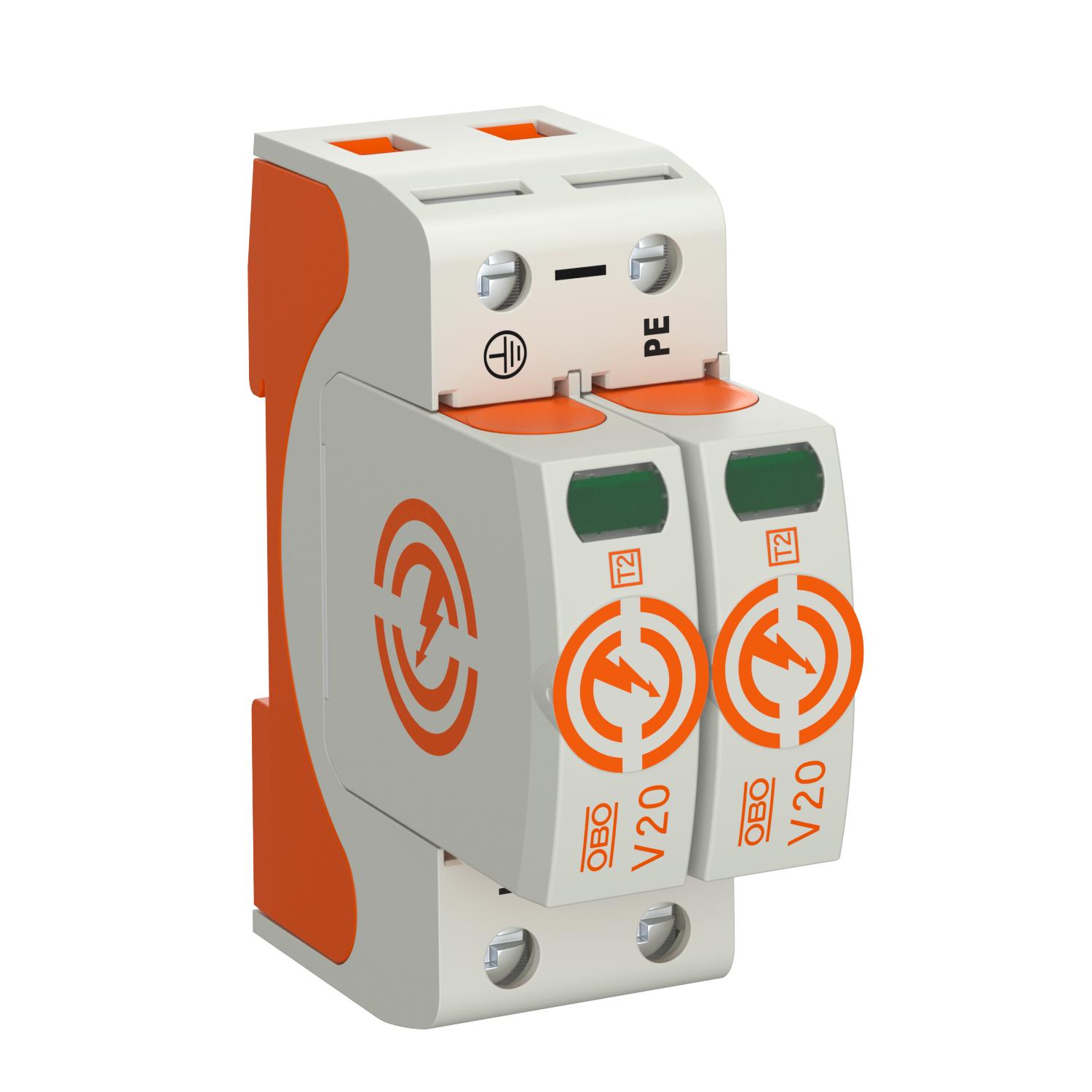

Surge arrester V20, 2-pole, 550 V 2 | 550 | IP20

Surge arrester V20, 2-pole, 550 V

Item no. 5095212 | EAN 4012196159963

Item no. / Types

Pole version

Maximum continuous voltage AC	550 V

Protection rating	IP20

Product description

Product description

Surge arrester, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.

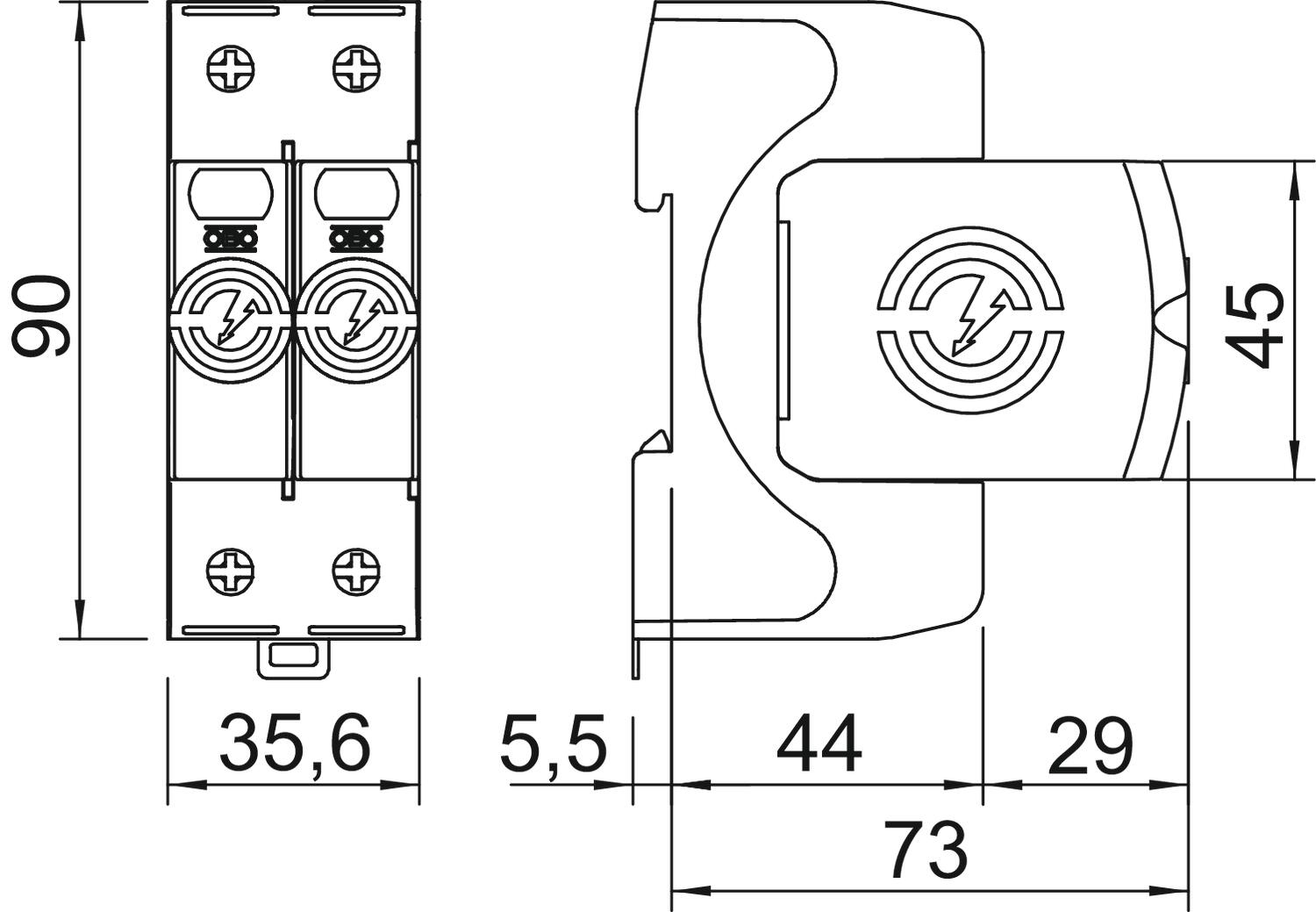

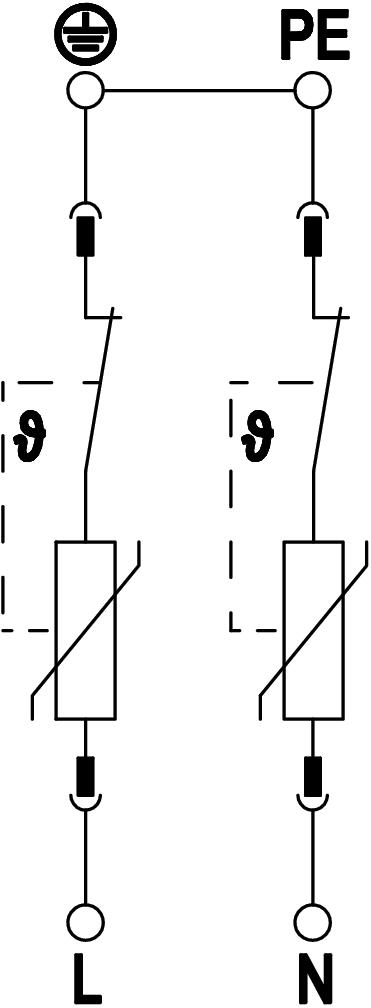

Technical data

Technical data

Approvals	UL
Arrester surge current (8/20 µs) [total]	80 kA
Blow-out	no
Cable type for surge protection devices	Power cable AV
Conductor cross-section, flexible (fine-wire), max.	2 AWG
Conductor cross-section, flexible (fine-wire), max.	35 mm²
Conductor cross-section, flexible (fine-wire), min.	1,5 mm²
Conductor cross-section, flexible (fine-wire), min.	16 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	16 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	1,5 mm²
Dimension	550V
Housing material surge protection components	PA UL 94 V-0
Installation type	DIN rail 35 mm
Integrated back-up fuse	no
Max. mains-side overcurrent protection	160 A gL/gG
Maximum back-up fuse	160 A
Maximum continuous voltage (L-N)	550 V
Maximum continuous voltage AC	550 V
Maximum discharge current (8/20 μs)	40 kA
Maximum discharge current (8/20 μs) [L-N]	40 kA
Minimum distance	1,5 mm
Network form	Other
Nominal discharge current (8/20 µs)	15 kA

Nominal discharge current (8/20 µs) [L-N]	20 kA
Nominal voltage AC (50/60 Hz)	400 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole number	2
Pole version	2
Protection level [L-N]	≤2,4
Protection rating	IP20
Remote signalling	no
Residual voltage [L-N] @ 1 kA	1,7 kV
Residual voltage [L-N] @ 5 kA	2,1 kV
Response time	<25 ns
Short-circuit resistance for max. mains-side overcurrent protection	50 kA eff
Short-circuit resistant	yes
Signalling on device	Visual
SPD to EN 61643-11	Type 2
SPD to IEC 61643-1	Class II
SPD to UL 1449	Type 4
Test class, type 2	yes
TN network form	yes
TN-C network form	yes
Torque	4 Nm
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.	915 V
TOV voltage [L-N] ‒ withstand mode ‒ 5 s	700 V

All types

All types

Types	Pole version	Maximum continuous voltage AC	Protection rating	Item no.	Quantity	SSU
V20-1-550	1	550 V	IP20	5095211	piece	1 piece
V20-2-550	2	550 V	IP20	5095212	piece	1 piece
V20-3-550	3	550 V	IP20	5095213	piece	1 piece
V20-4-550	4	550 V	IP20	5095214	piece	1 piece
