- Product description
-

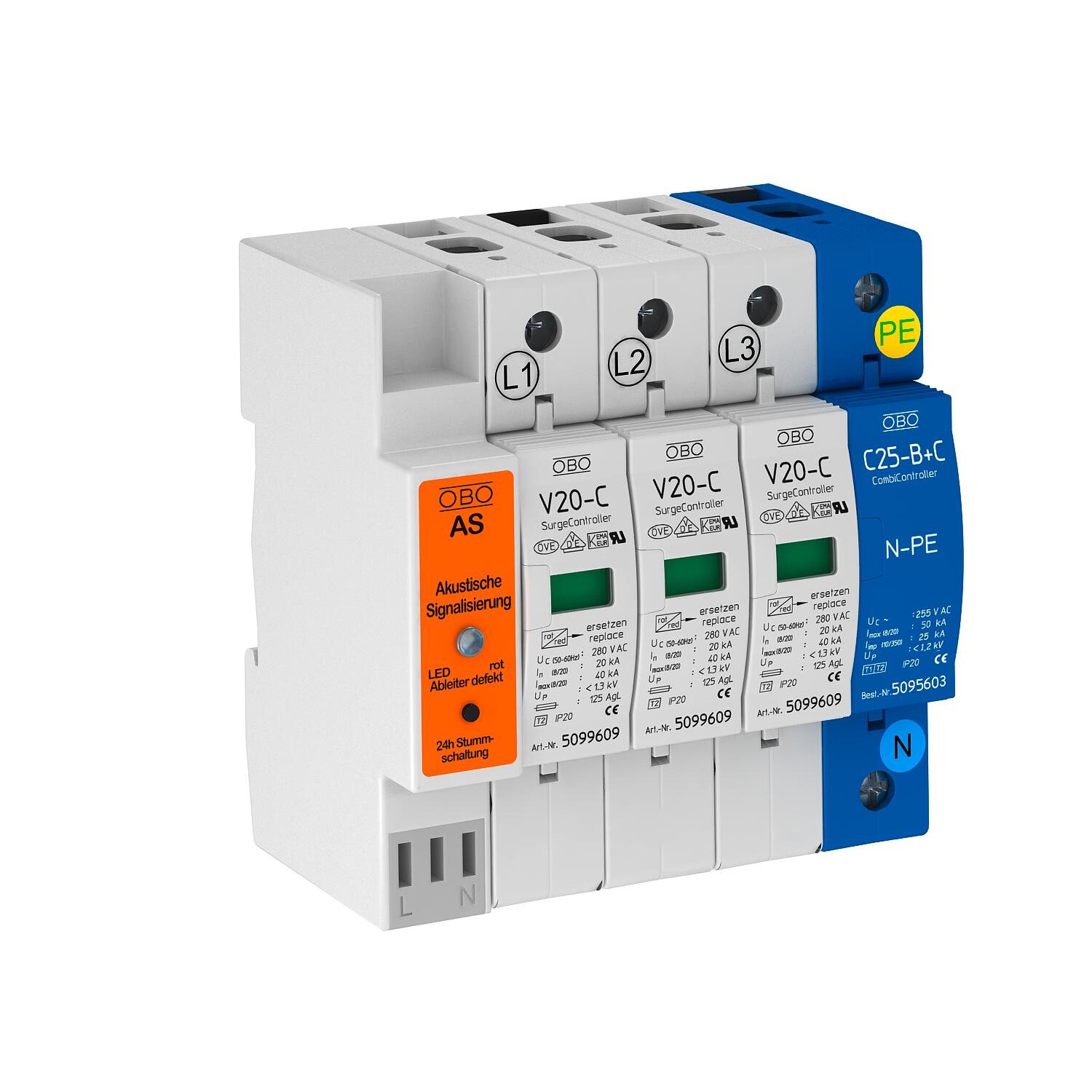

Product descriptionSurge arrester, type 2
• Complete unit consisting of cover and base, pre-mounted and ready for connection
• With audible signalling for function monitoring, signal tone can be turned off for 24 h
• Suitable for TN and TT network systems
• Plug-in cover; cover can be separated from base without tools
• Incl. thermal and dynamic cut-off unit
• With visual display of defects
• High current conductivity and long service life
* Complete = cover and base

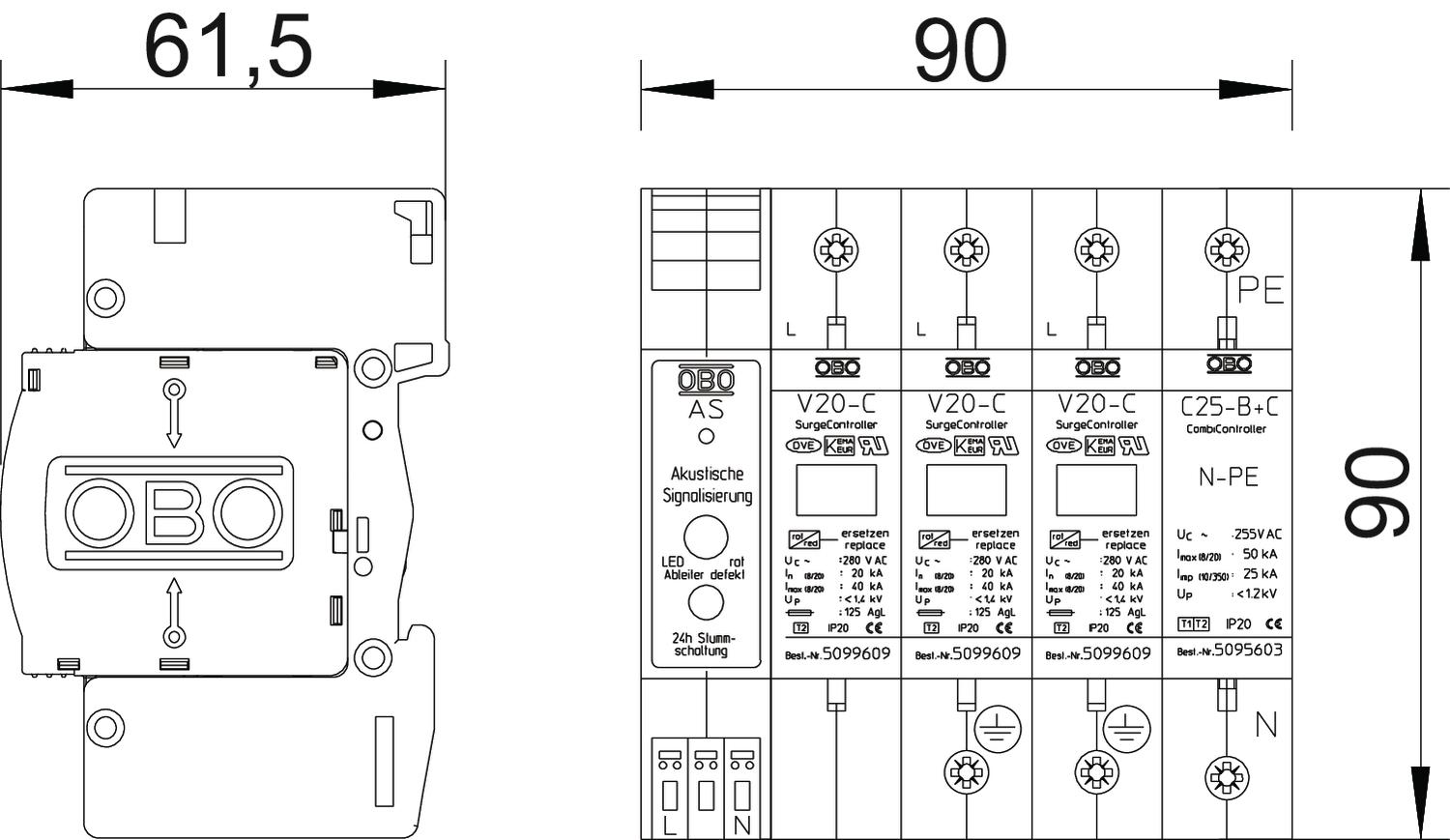

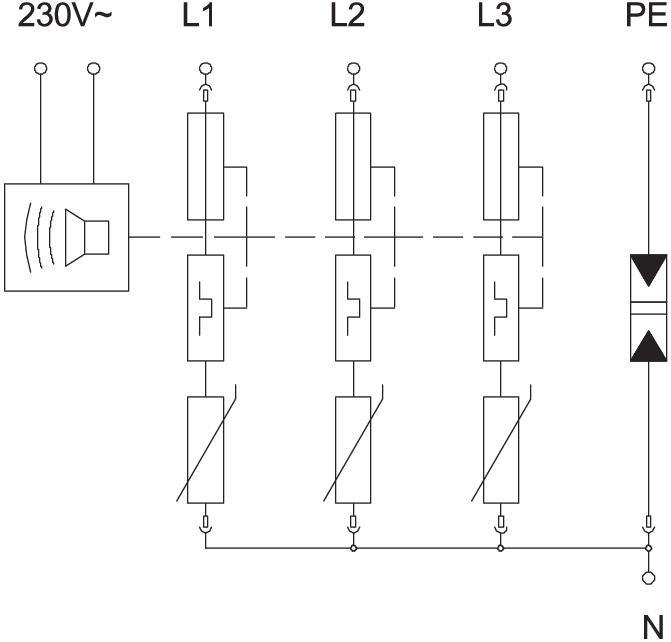

- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 80 kA Blow-out no Conductor cross-section, flexible (fine-wire), min. 25 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 35 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 2,5 mm² Dimension 280V Installation type DIN rail 35 mm Integrated back-up fuse no Lightning protection zone LPZ 1→2 Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage AC 280 V Maximum discharge current (8/20 μs) 40 kA Network form Other Nominal discharge current (8/20 µs) 20 kA Nominal discharge current (8/20 µs) [L-N] 20 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 80 °C Operating temperature, min. -40 °C Pole version 3+N/PE Protection rating IP20 Remote signalling yes Response time <25 ns Signalling on device Optical and acoustic SPD to EN 61643-11 Type 2 SPD to IEC 61643-1 Class II Test class, type 2 yes TN network form yes TN-C-S network form yes TN-S network form yes TT network form yes Version for 3-pole with NPE; with AS, 280 V - All types
- Downloads
-
Data sheet V20-C 3+NPE+AS / 5096397 , 0.28MB , pdfEU declaration of conformity V20-C 3+NPE+AS / 5096397 , 0.06MB , pdfLabel approval VDE symbol approval, V20 , 0.12MB , pdfLabel approval KEMA-KEUR certificate V20 , 2.00MB , pdfLabel approval EZU certificate V20 , 2.00MB , pdf
