Support clamps for profile rails OL 1796

Name: Support clamps for profile rails OL 1796
Brand: OBO Bettermann
SKU: 6910556

Product description

Product description

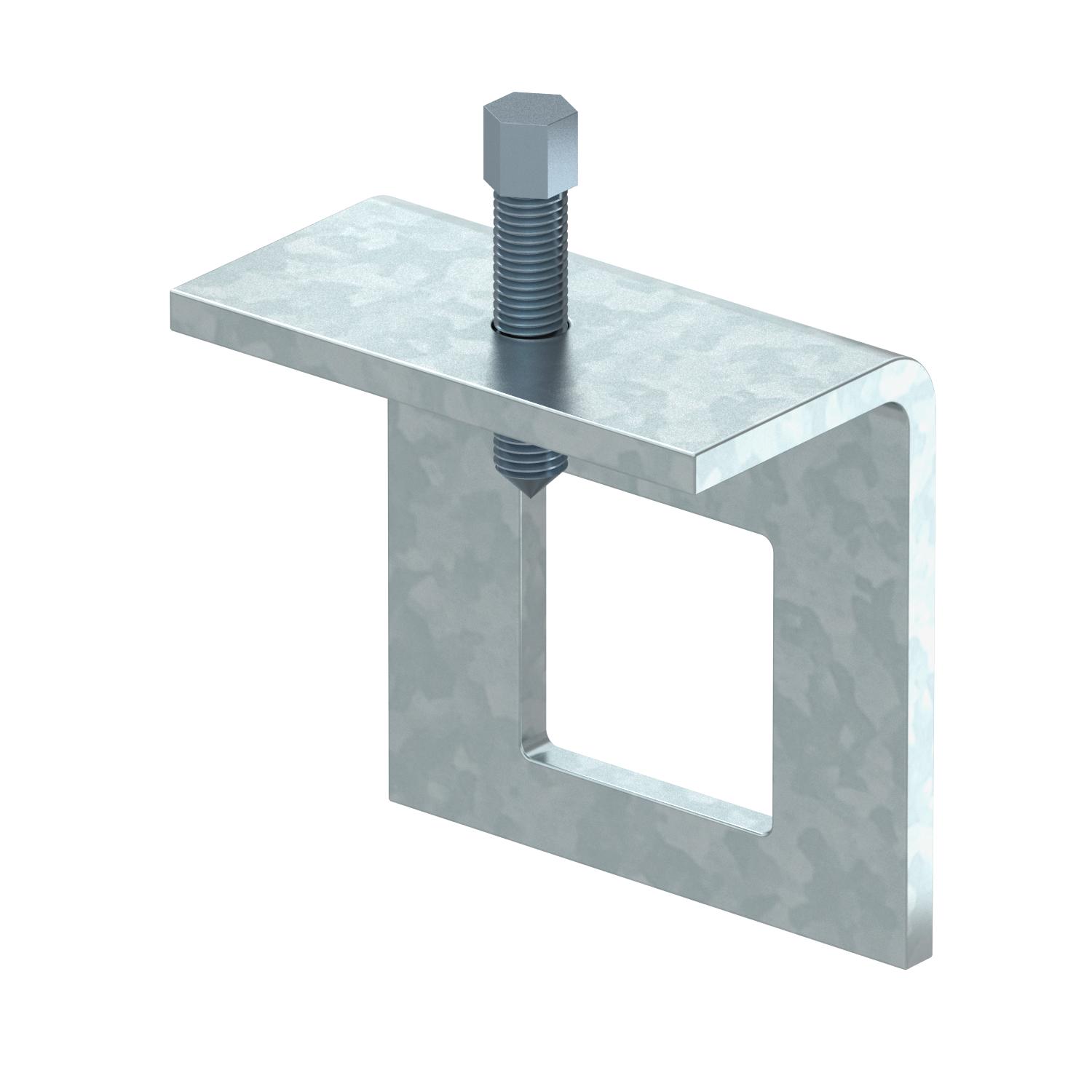

Support clamp with surround clamping of Olistrut profile rails, 41 x 41 mm, to metal girders.
Complete with M12 cone point screw.

Technical data

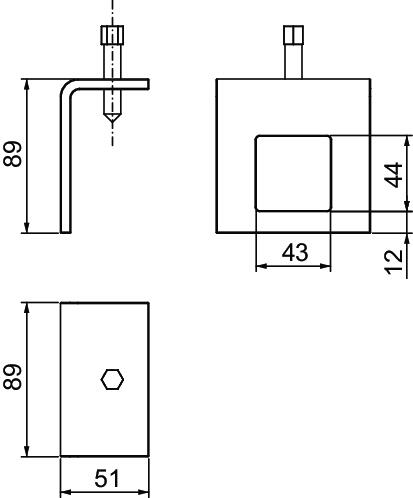

Dimension	100x90x55
Material	Steel

Surface	Hot-dip galvanised

All types

Types	Length	Width	Height	Pipe/cable diameter, min.	Pipe/cable diameter, max.	Dimension B	Dimension L	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
OL1796 EG										6910556		1

Downloads

Data sheet OL1796 EG / 6910556 , 0.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity OL1796 EG / 6910556 , 0.10MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

OL1796 EG / 6910556
