Support clamps for profile rails OL 1271

Name: Support clamps for profile rails OL 1271
Brand: OBO Bettermann
SKU: 6910551

Product description

Product description

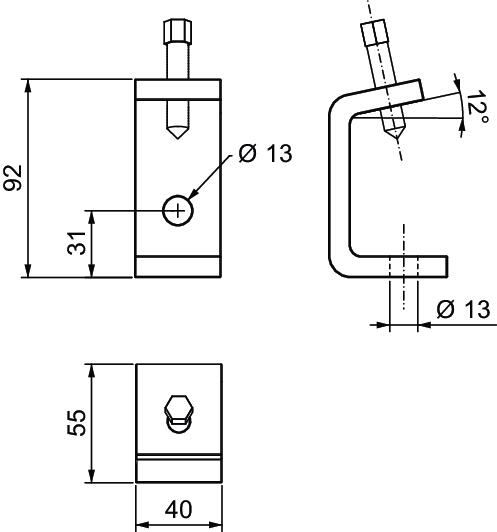

Support clamp with external clamping of Olistrut profile rails, 41 x 41 mm, to metal girders.
Complete with M12 cone point screw.

Technical data

Dimension	90x60x40
Material	Steel

Surface	Hot-dip galvanised

All types

Types	Length	Width	Height	Pipe/cable diameter, min.	Pipe/cable diameter, max.	Dimension B	Dimension L	Flange thickness F min.	Flange thickness F max.	Item no.	Quantity	SSU
OL1271 EG										6910551		1

Downloads

Data sheet OL1271 EG / 6910551 , 0.11MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity OL1271 EG / 6910551 , 0.17MB , pdf

Download

Mounting instructions General information on the mounting , 2.61MB , pdf

OL1271 EG / 6910551
