Straight connector PS100 100 | 2 | Steel | Hot-dip galvanised

morepic-1

morepic-2

Straight connector PS100

Item no. 6903992 | EAN 4012196071883

Item no. / Types	6903992 / PS100 Splice Set

Height	100 mm

Plate thickness	2 mm

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Straight connector set for the connection of the cable ladder types PS100 of side height 100 mm.

Technical data

Technical data

Dimension	210x90x45
Height	100 mm
Material	Steel

Plate thickness	2 mm
Suitable for cable tray system height	100 mm
Surface	Hot-dip galvanised

All types

All types

Types	Height	Plate thickness	Material	Surface	Item no.	Quantity	SSU
PS100 Splice Set	100 mm	2 mm	Steel	Hot-dip galvanised	6903992		1

Downloads

Data sheet PS100 Splice Set / 6903992 , 0.14MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

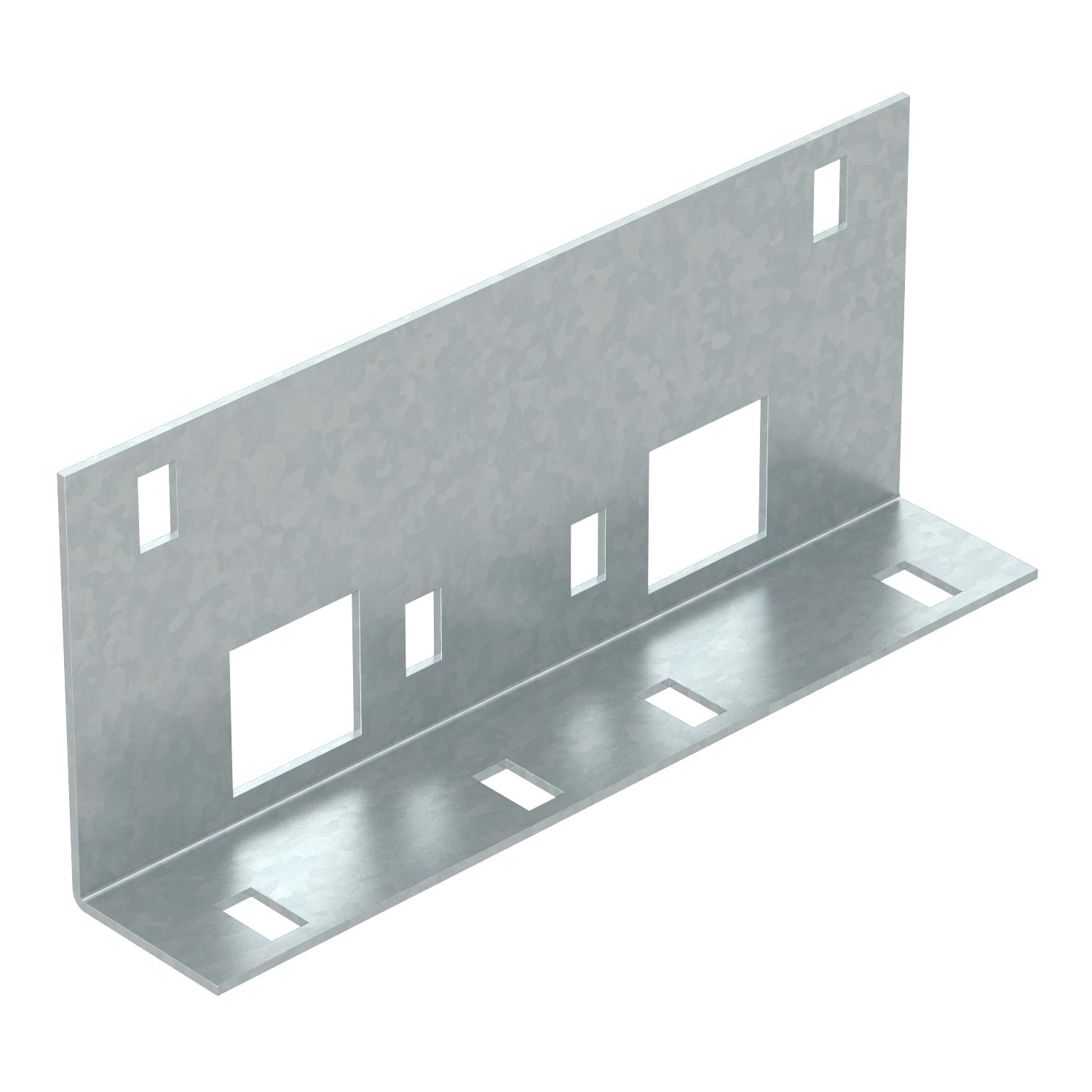

Product graphic PS100 Splice Set / 6903992, 73.40 kB, jpg

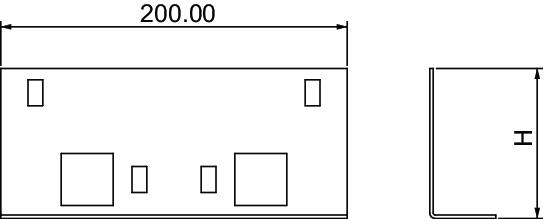

Scale drawing PS100 Splice Set / 6903992, 3.51 kB, jpg

PS100 Splice Set / 6903992
