SSP130 cable ladder Nema 20B, 6 m

Item no. 6905003 | EAN 4012196074150

6000 mm
1.6 mm
Product description
Product description

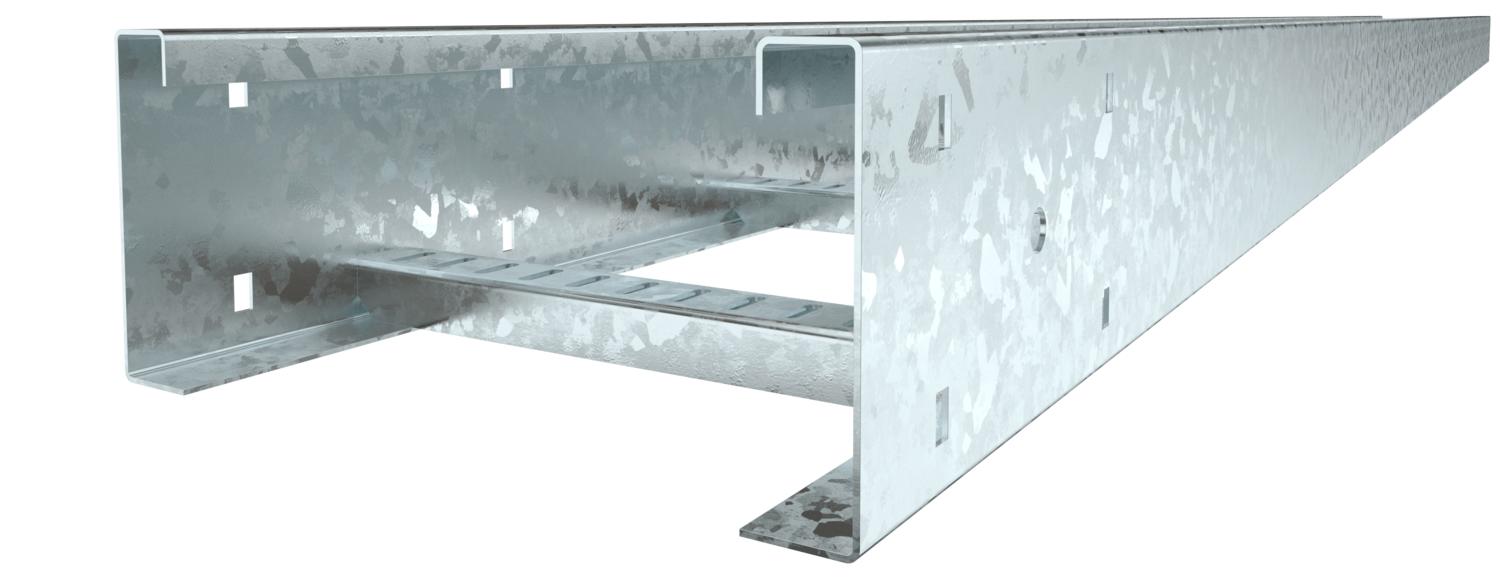

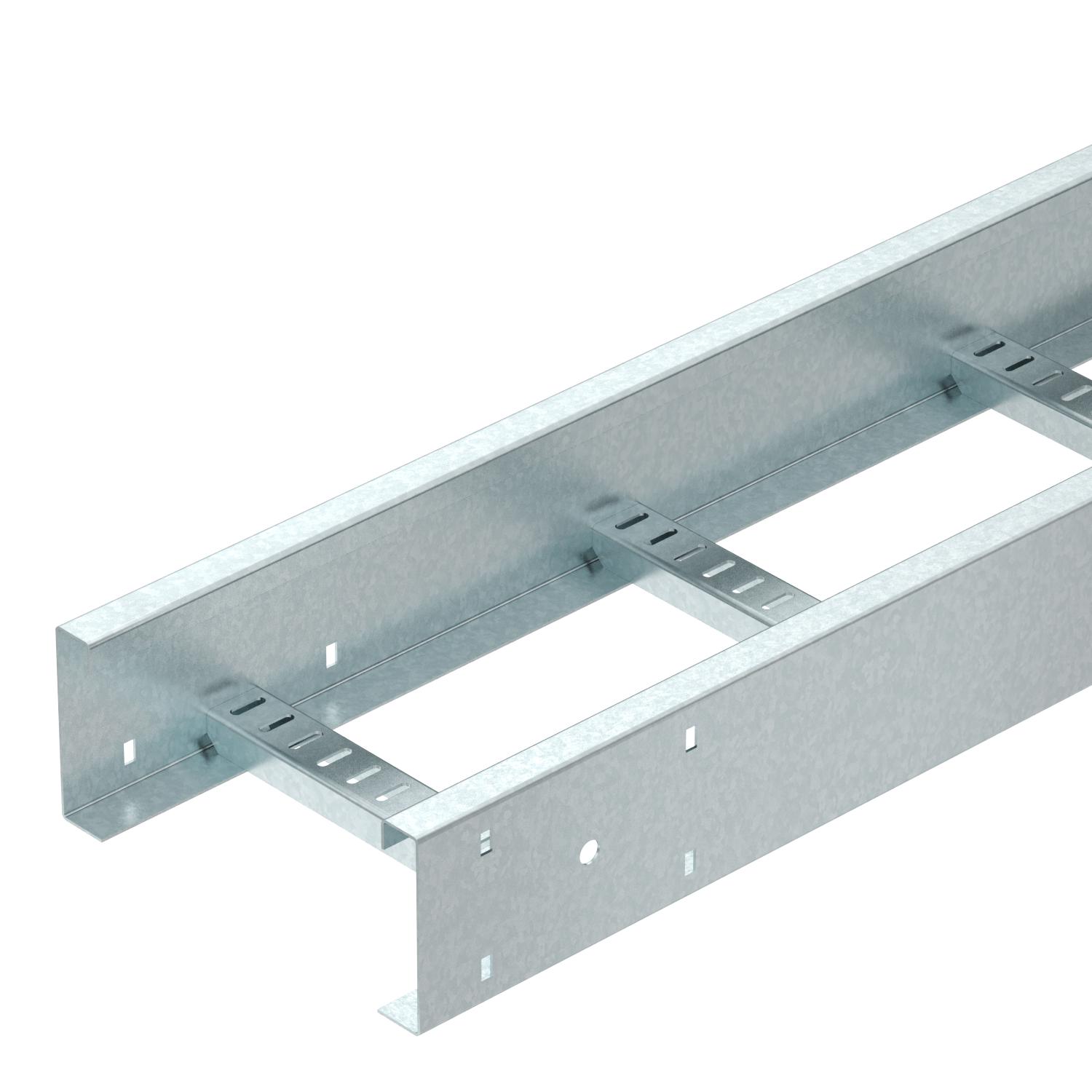

Heavy-duty SSP130 cable ladder system, welded version. The side height

is 130 mm with a supply length of 6000 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

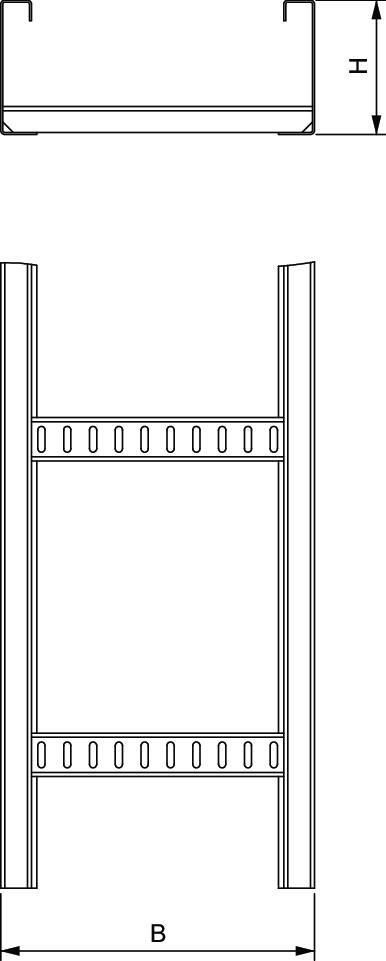

Dimension 6000x200x130
Dimension B 200 mm
Height 130 mm
Length 6000 ft
Length 6000 mm
Material Steel
Rail thickness 1,6 mm
Rung distance 300 mm
Support spacing 3.0 m 2,2 kN/m
Support spacing 6.0 m 0,5 kN/m
Surface Hot-dip galvanised
Width 200 mm
All types

All types

Types Length Width Rail thickness Item no. Quantity SSU
SSP130 200 HDG 6000 mm 200 mm 1.6 mm 6905003
6 m
SSP130 300 HDG 6000 mm 300 mm 1.6 mm 6905007
6 m
SSP130 400 HDG 6000 mm 400 mm 1.6 mm 6905011
6 m
SSP130 500 HDG 6000 mm 500 mm 1.6 mm 6905015
6 m
SSP130 600 HDG 6000 mm 600 mm 1.6 mm 6905019
6 m
SSP130 800 HDG 6000 mm 800 mm 1.6 mm 6905023
6 m
SSP130 1000 HDG 6000 mm 1000 mm 1.6 mm 6905027
6 m
