Round conductor, copper 8 | 25 | 55 | 50 | Copper

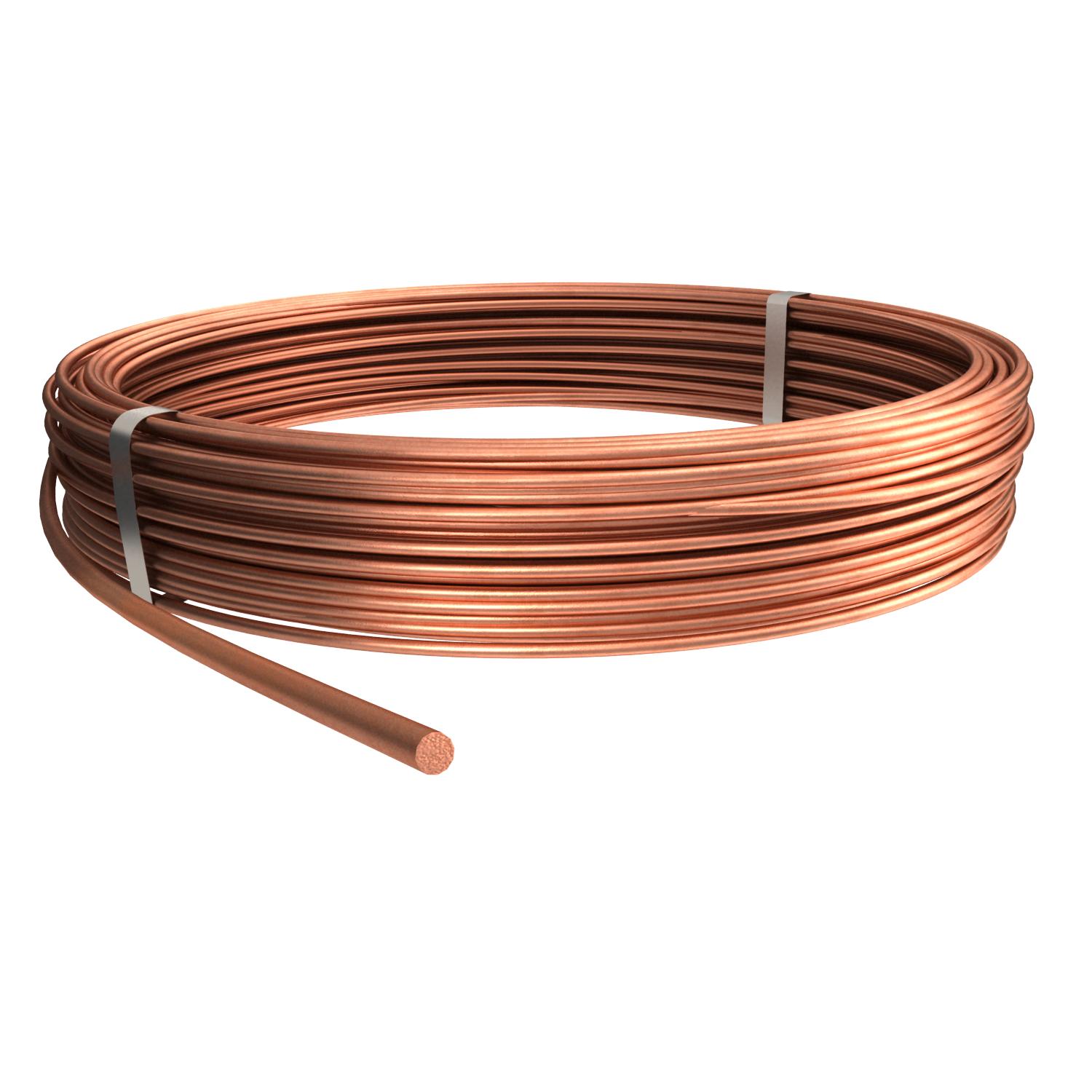

Round conductor, copper

Item no. 5021484 | EAN 4012196636822

Item no. / Types

Diameter

Normal ring (ca. kg)

Nomal ring (approx. m)

Cross-section

Material	Copper

Product description

Product description

• Can be used as a conductor and earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)

Technical data

Technical data

Cross-section	50 mm²

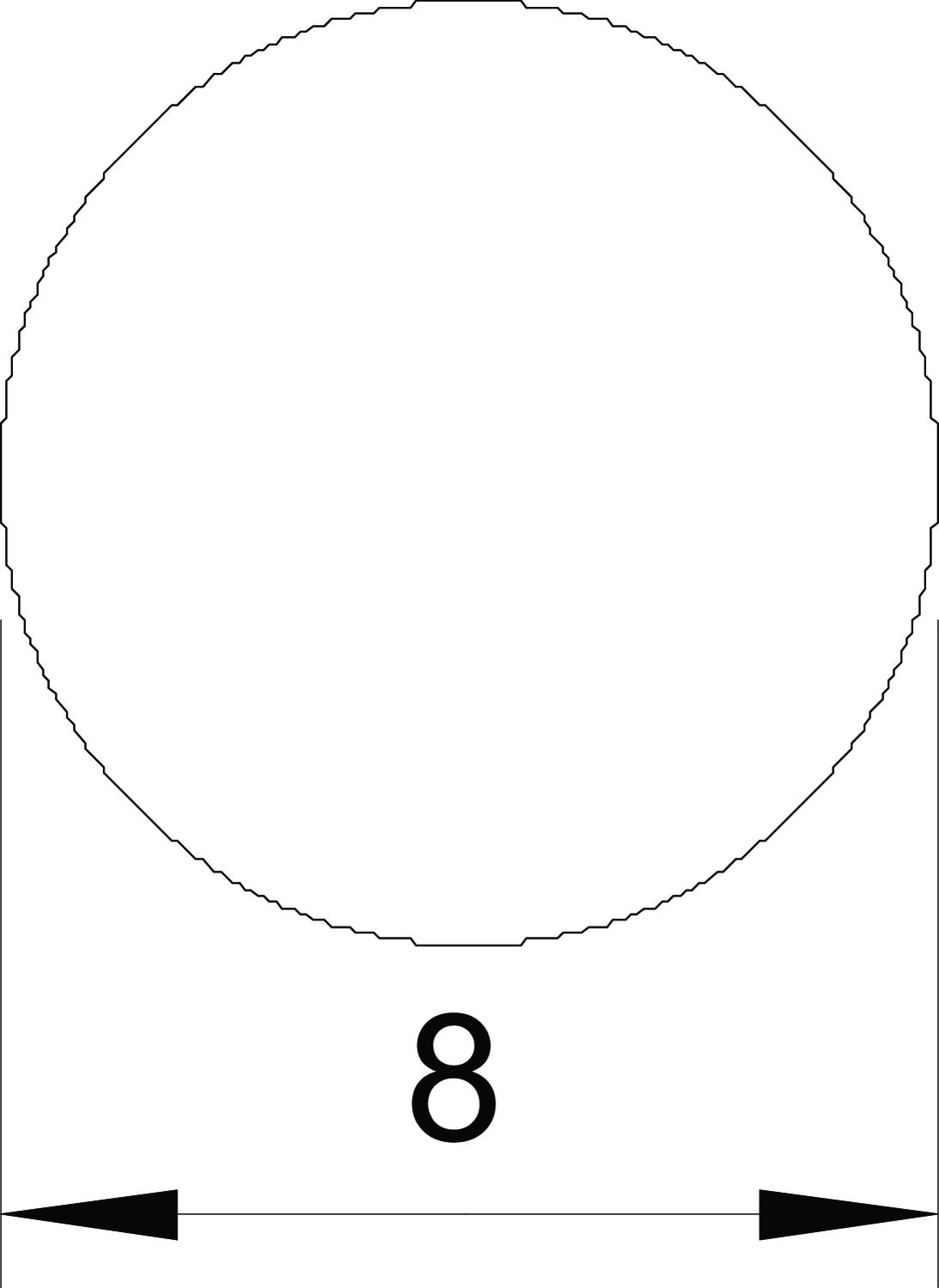

Diameter	8 mm
Dimension	8mm
Dimension D	8 mm
High voltage-resistant, insulated version	no
Length tolerance ±	5 %

Material	Copper
Material jacket	Without
Material property	Soft
Nomal ring (approx. m)	55
Normal ring (ca. kg)	25
Number of individual wires	1

All types

All types

Types	Diameter	Normal ring (ca. kg)	Nomal ring (approx. m)	Cross-section	Material	Item no.	Quantity	SSU
RD 8-CU	8 mm	45	100	50 mm²	Copper	5021480	m	100 m
RD 8-CU 25	8 mm	25	55	50 mm²	Copper	5021484	m	55 m
RD 10-CU	10 mm	35	50	78 mm²	Copper	5021502	m	50 m

Downloads

Guide Lightning protection guide , 2.10MB , pdf

Download

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf
