- Product description
-
Product description

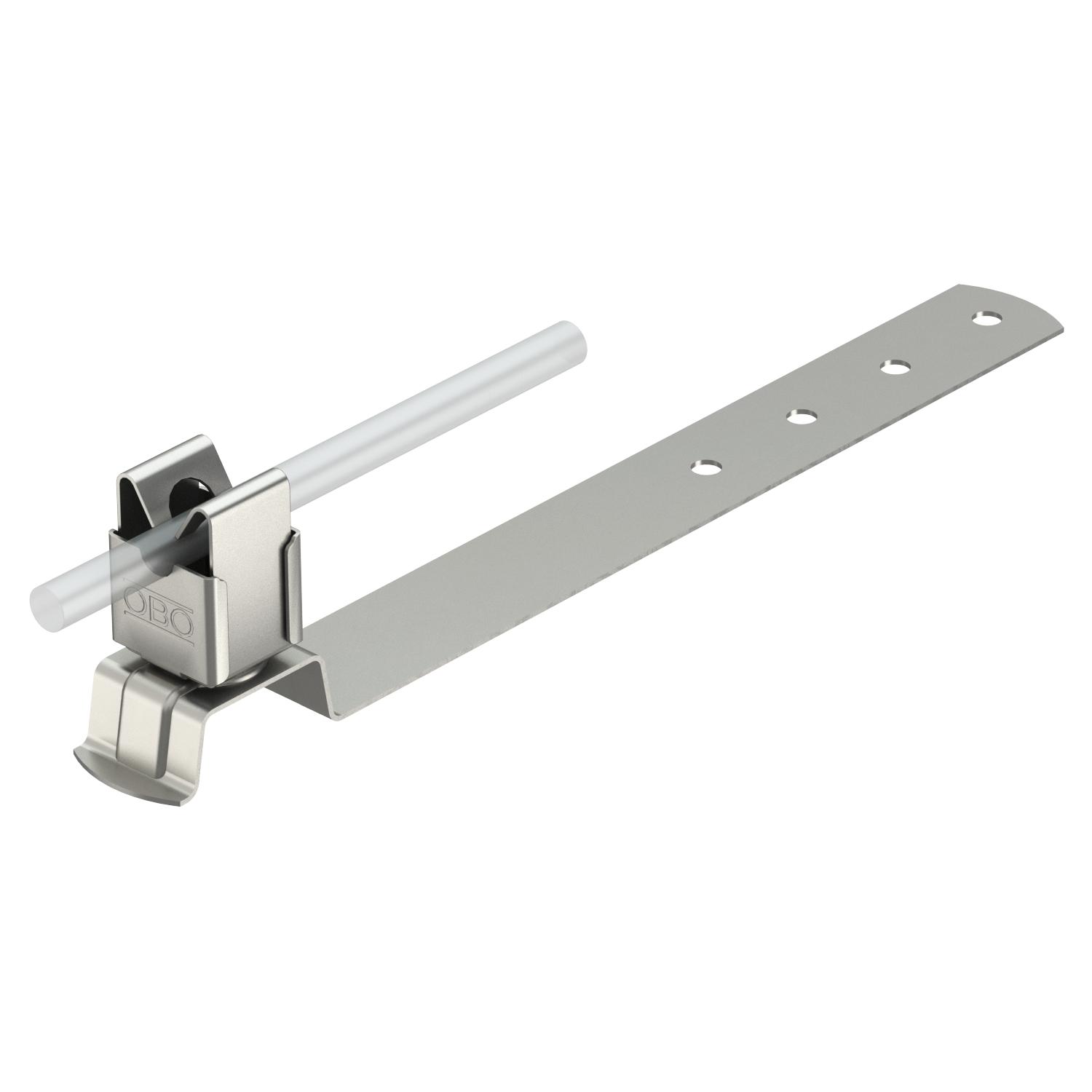

• Conductor holder from stainless steel (V2A)
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

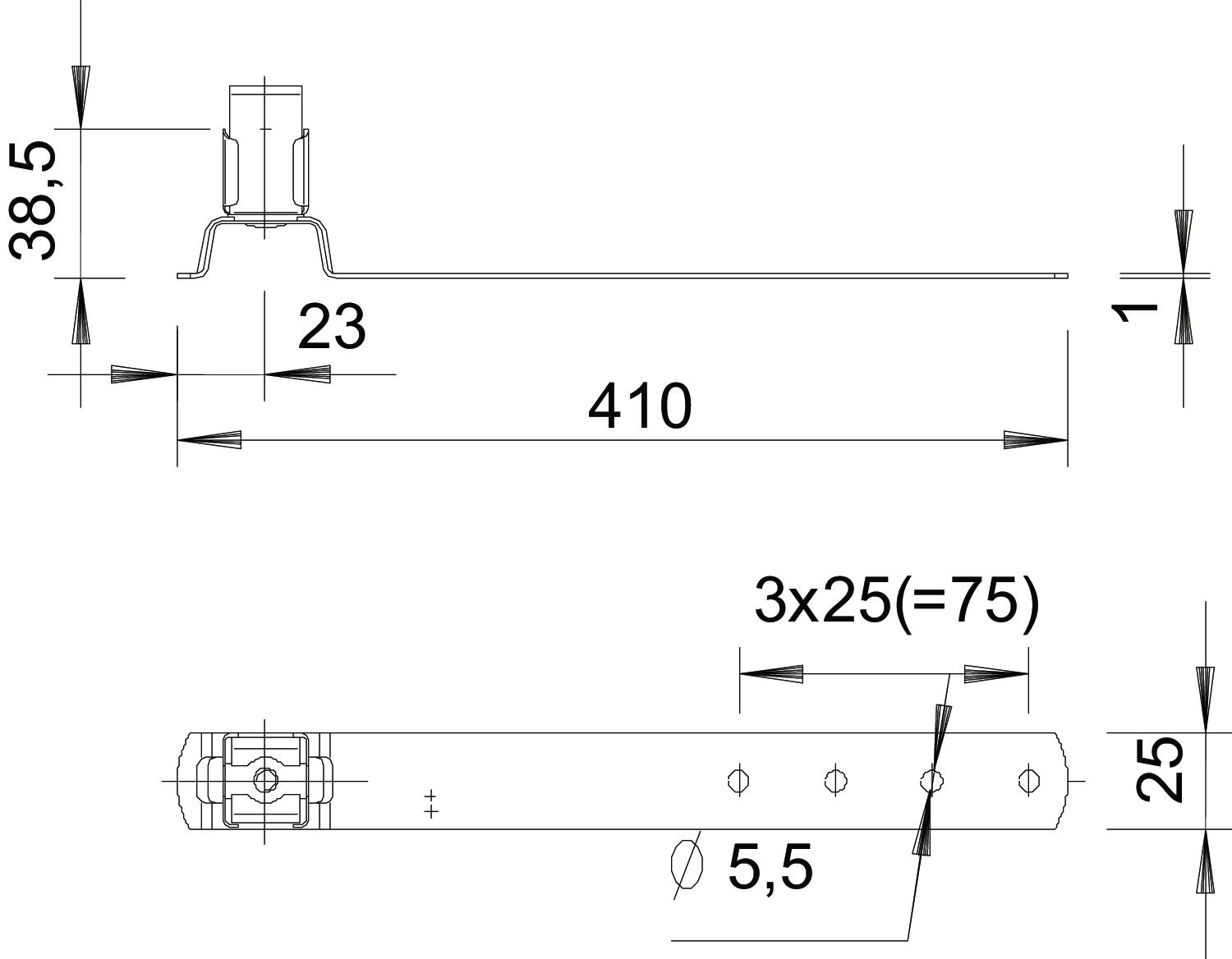

Application Roof surface Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Fit Rd 8 mm Material Stainless steel Mounting height 38,5 mm Mounting type Screw-on Dimensions
Dimension L 410 mm Length 410 mm - All types
- Downloads
-
Data sheet 157 F-VA 410 / 5215595 , 0.21MB , pdfREACH Declaration of conformity 157 F-VA 410 / 5215595 , 0.12MB , pdfRoHS Declaration of conformity 157 F-VA 410 / 5215595 , 0.12MB , pdf
