- Product description
-
Product description
• Conductor holder of polyamide
• Including drill hole in bottom section for quick installation
- Technical data
-
Technical data

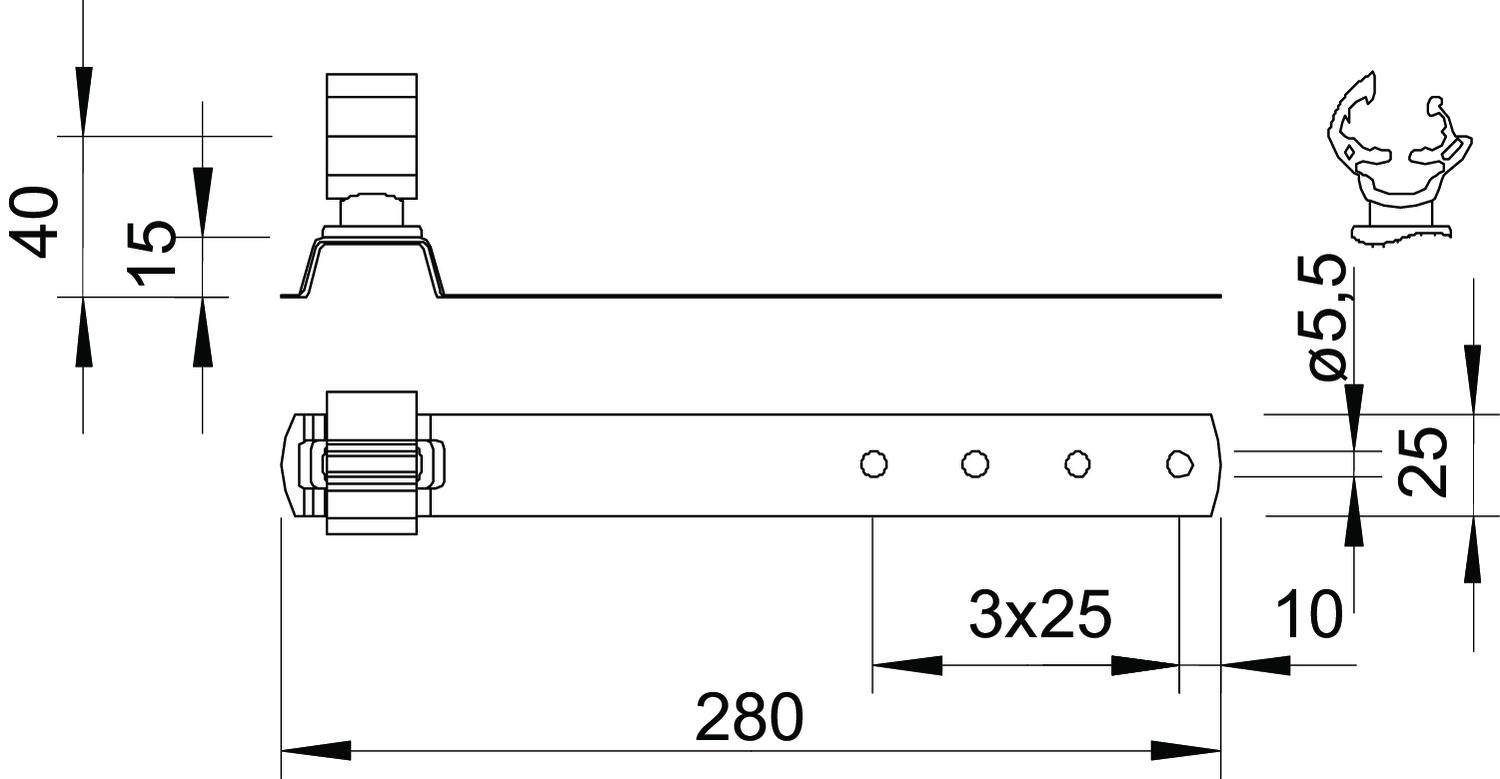

Application Roof surface Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 8mm Fit Rd 8-10 mm Material Copper Mounting height 40 mm Mounting type Screw-on Dimensions
Dimension L 280 mm Length 280 mm - All types
- Downloads
-
Data sheet 157 FK-CU 280 / 5216214 , 0.17MB , pdf
