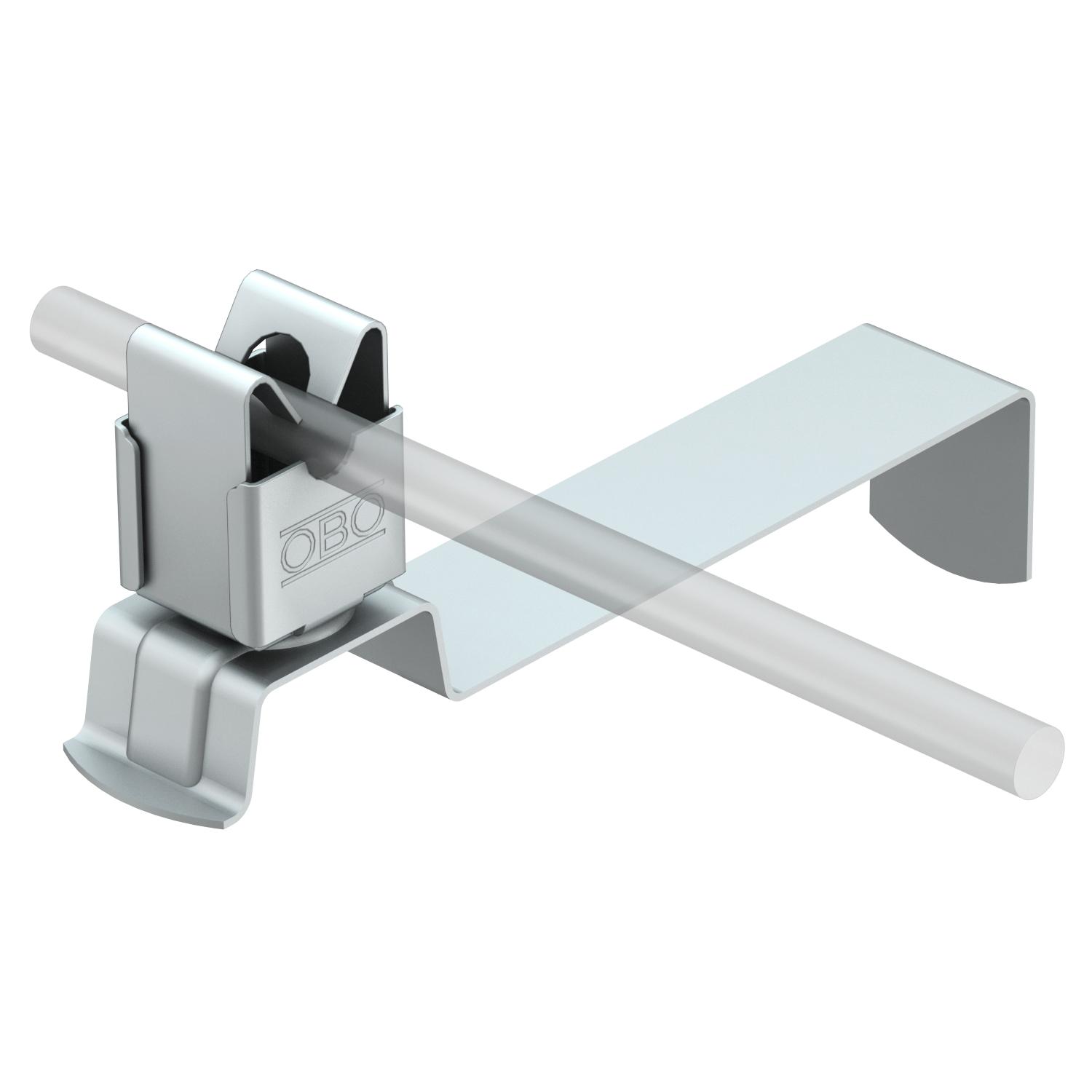

Roof conductor holder for tiled roofs, angled, Rd 8
Item no. 5215875 | EAN 4012195531791
- Product description
-
Product description• With flexible bottom section from aluminium for matching to roof tiles (easy to flex)
• Holder from stainless steel (V2A)
• Curved bottom section for quick installation
- Technical data
-
Technical data
Application Roof surface Conductor diameter, max. 8 Conductor diameter, min. 8 Conductor fastening type With clip Dimension 8mm Fit Rd 8 mm Length 140 mm Material Aluminium Mounting height 26,5 mm Mounting type For suspension - All types
- Downloads
-
Data sheet 157 FX-AL / 5215875 , 0.14MB , pdfEU declaration of conformity 157 FX-AL / 5215875 , 0.06MB , pdf
