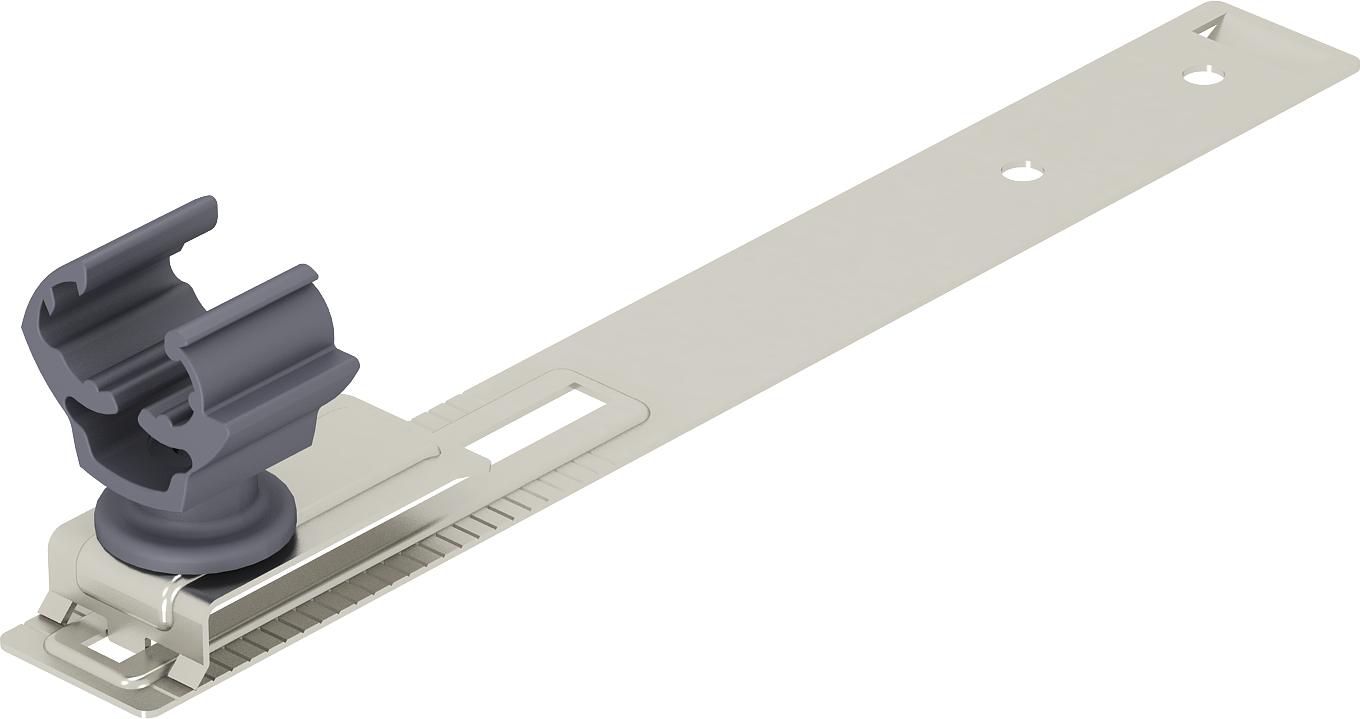

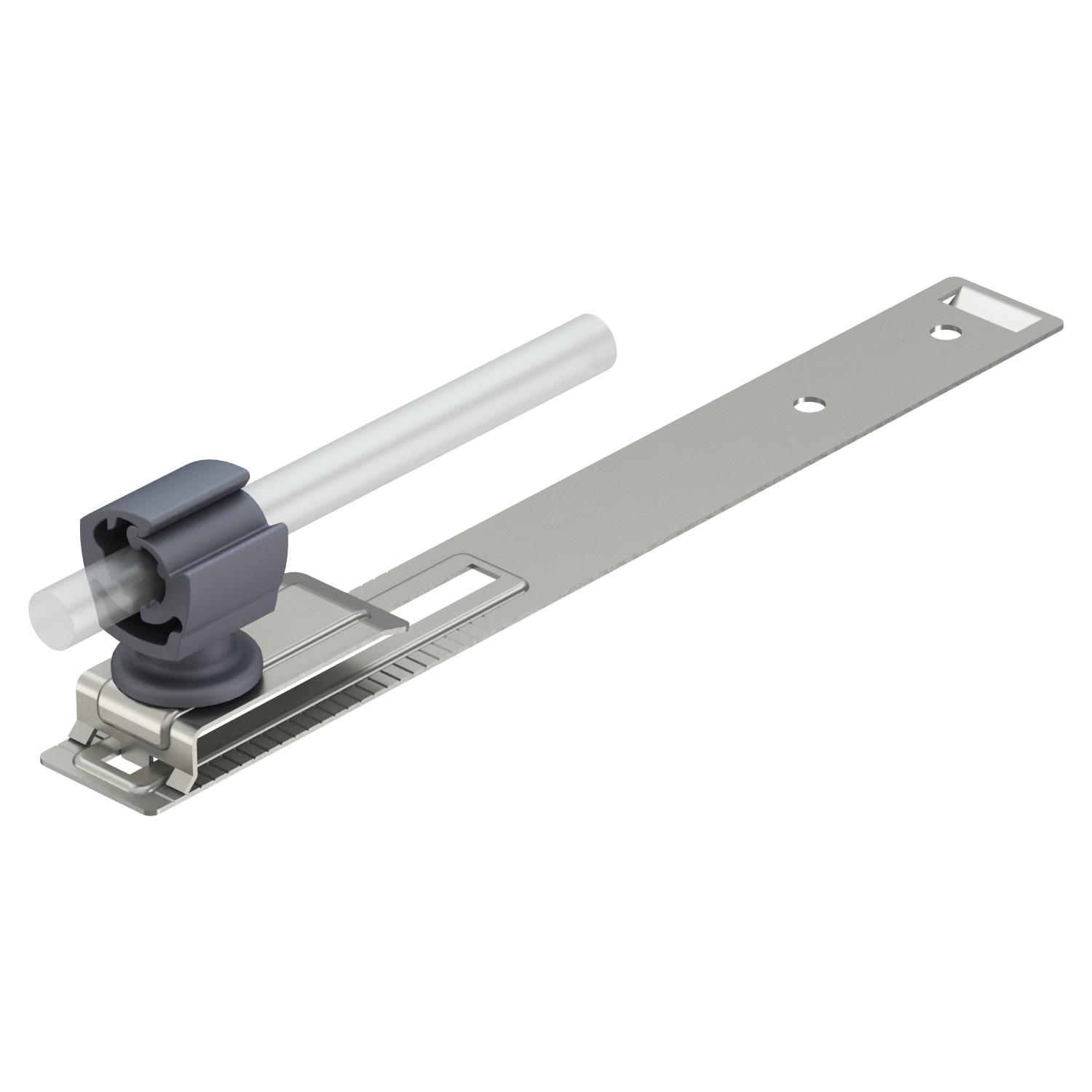

Roof conductor holder for slated roofs, Rd 8−10, A2
Item no. 5215374 | EAN 4012195811879
- Product description
-
Product description• With Ø 5.5 mm drill hole and beading
• Conductor holder of polyamide
- Technical data
-
Technical data

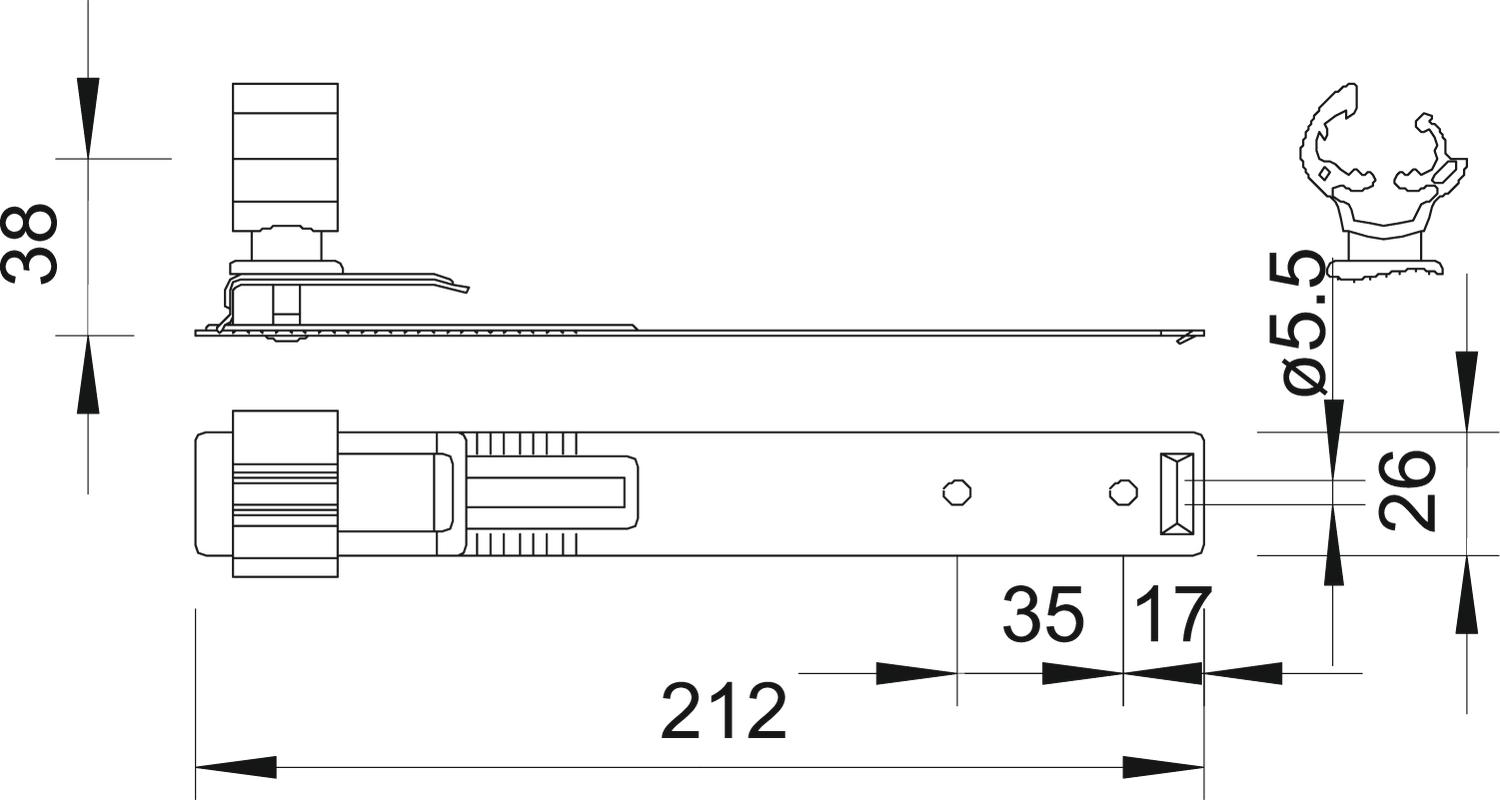

Application Roof surface Conductor diameter, max. 10 Conductor diameter, min. 8 Conductor fastening type With clamp clip Dimension 210mm Fit Rd 8-10 mm Length 212 mm Material Stainless steel Mounting height 38 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 LK-VA / 5215374 , 0.15MB , pdfEU declaration of conformity 157 LK-VA / 5215374 , 0.06MB , pdfREACH Declaration of conformity 157 LK-VA / 5215374 , 0.12MB , pdfRoHS Declaration of conformity 157 LK-VA / 5215374 , 0.12MB , pdf
