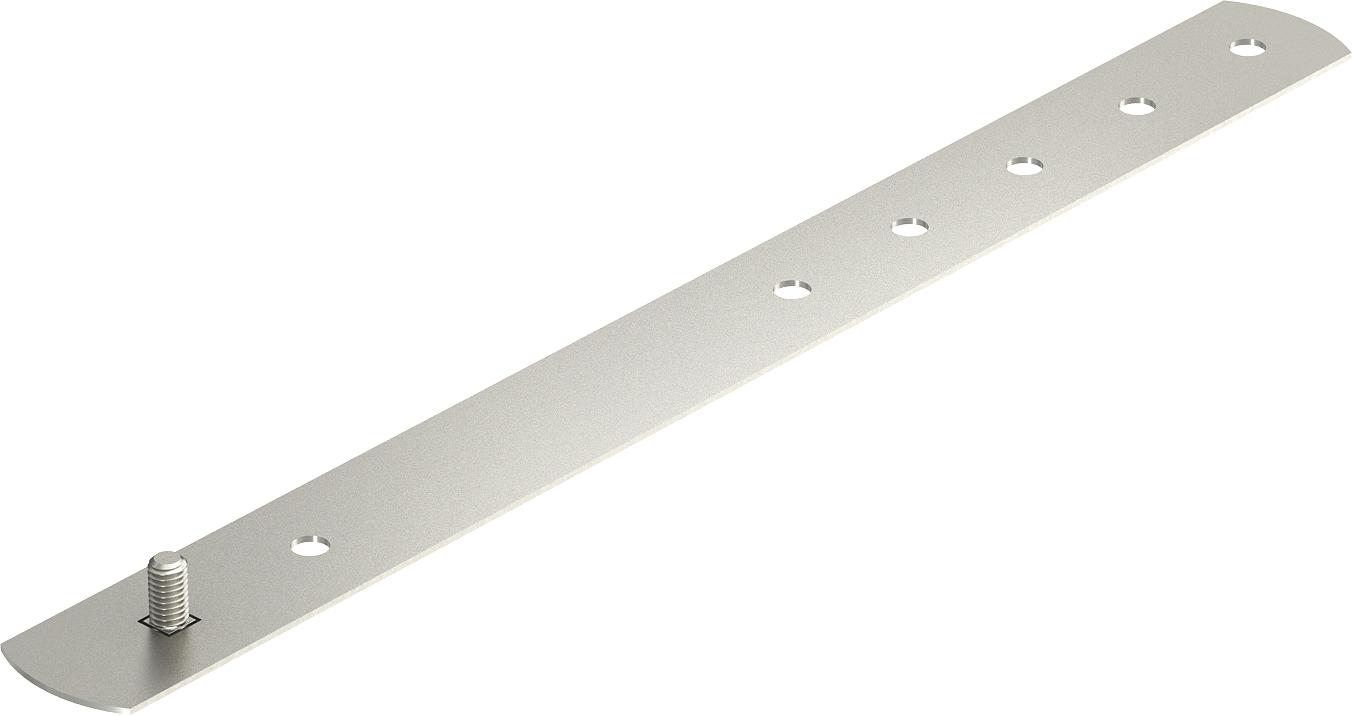

Roof conductor holder for slated roofs
Item no. 5202569 | EAN 4012195894223
- Product description
-
Product description• With Ø 5.5 mm drill hole
• With 3 M8 threaded nipples for positioning the holder
- Technical data
-
Technical data

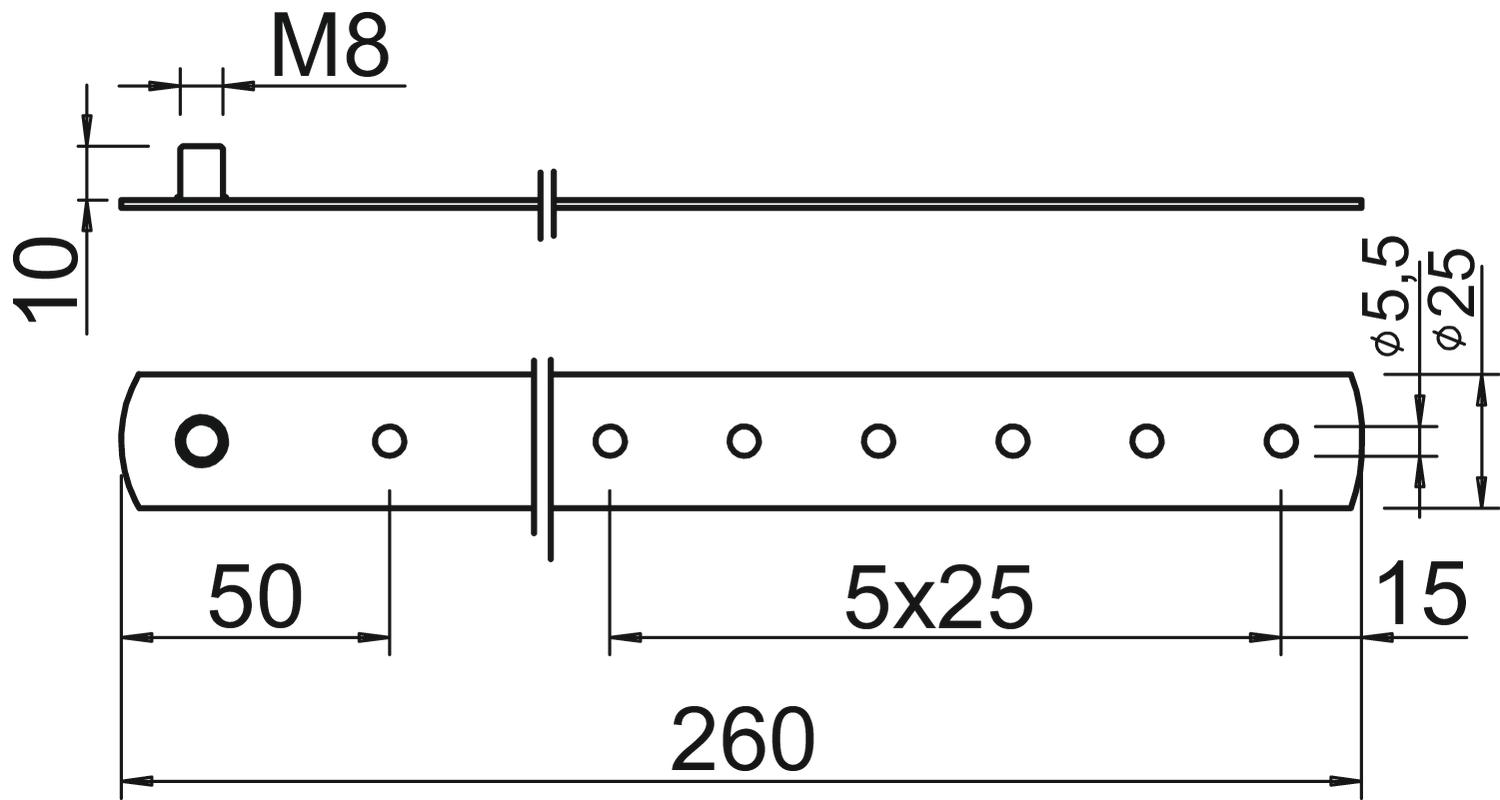

Application Slate roof Conductor fastening type Miscellaneous Dimension 260mm Fit Rd 8-10 mm Length 260 mm Material Stainless steel Mounting height 27 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet 157 GB-M8 / 5202569 , 0.10MB , pdfEU declaration of conformity 157 GB-M8 / 5202569 , 0.06MB , pdf
