Rod holder, 16 mm, with square pin
Item no. 5410096 | EAN 4012195428893
- Product description
-
Product description
• For air-termination and earth entry rods
• Crossbar with 2 hexagonal bolts M6 x 16 (VA)
• With square pin
- Technical data
-
Technical data

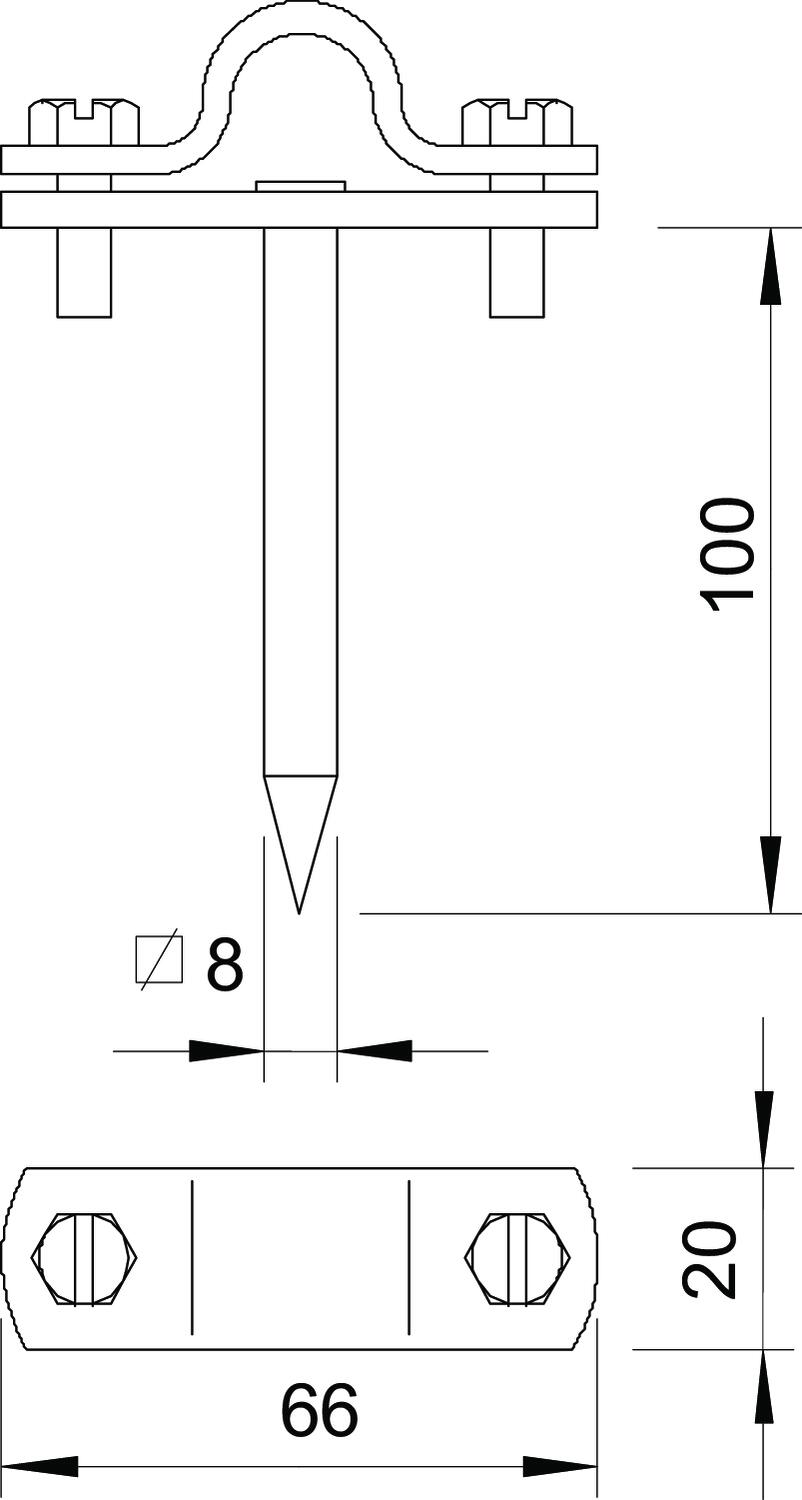

Dimension 16mm Dimension H 100 mm Fit Rd 16 mm Holder fastening type With impact pin Length 100 mm Material Steel Material of the base Steel, hot galvanised Material of the crossbar Steel, hot galvanised Rod fastening type With screw clip Surface Hot galvanized - All types
- Downloads
-
Data sheet 112 DIN-100 / 5410096 , 0.14MB , pdfDeclaration of conformity 112 DIN-100 / 5410096 , 0.06MB , pdf
