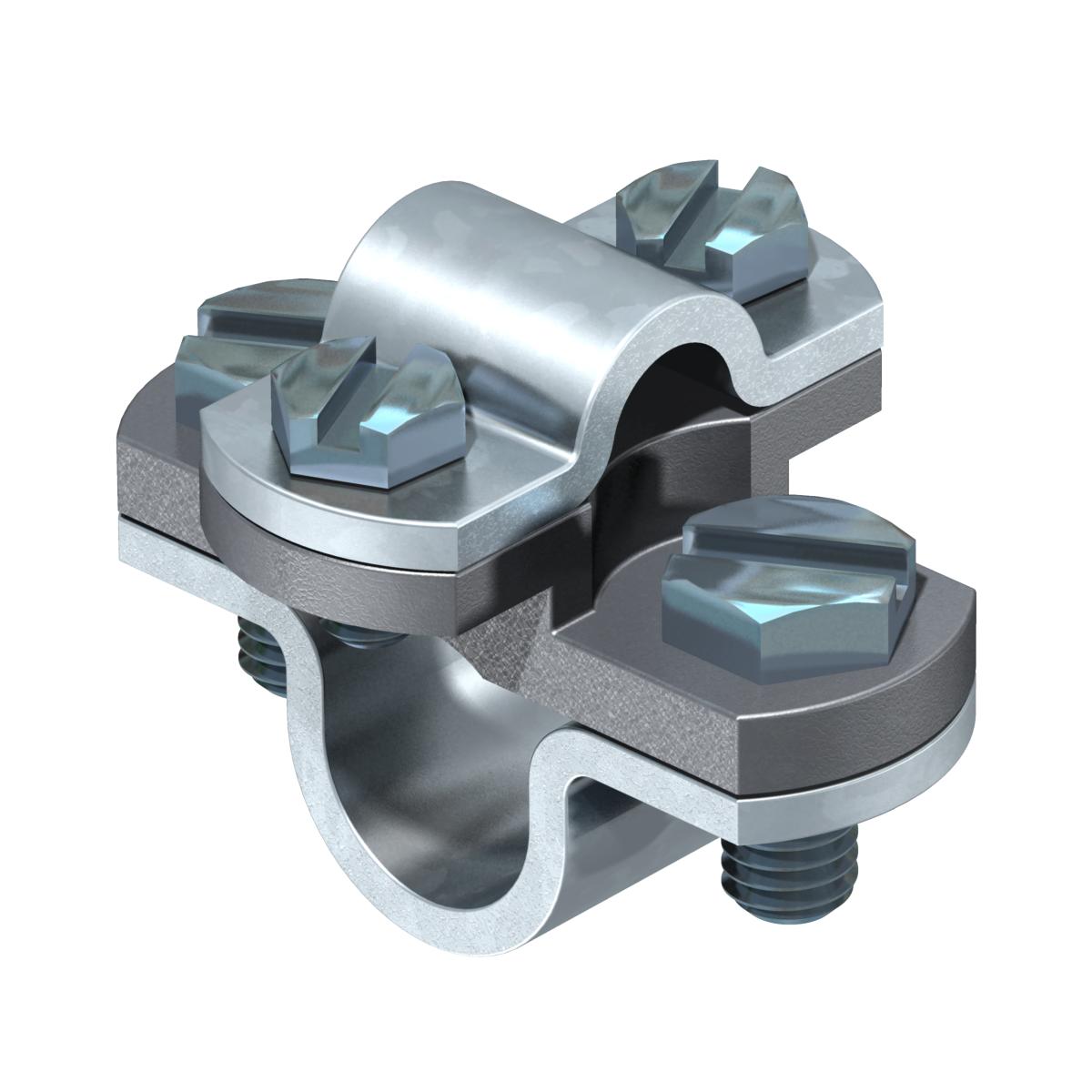

Rod clamp
Item no. 5416566 | EAN 4012195429678
- Product description
-
Product description• Rod clamp for connecting round conductors Rd 8−10 to connector rods Rd 16
• Mounted with 2 hexagonal bolts M8 x 16 and M6 x 12
• Adapter from malleable iron
• Crossbar and bolts from hot dip galvanized steel
- Technical data
-
Technical data

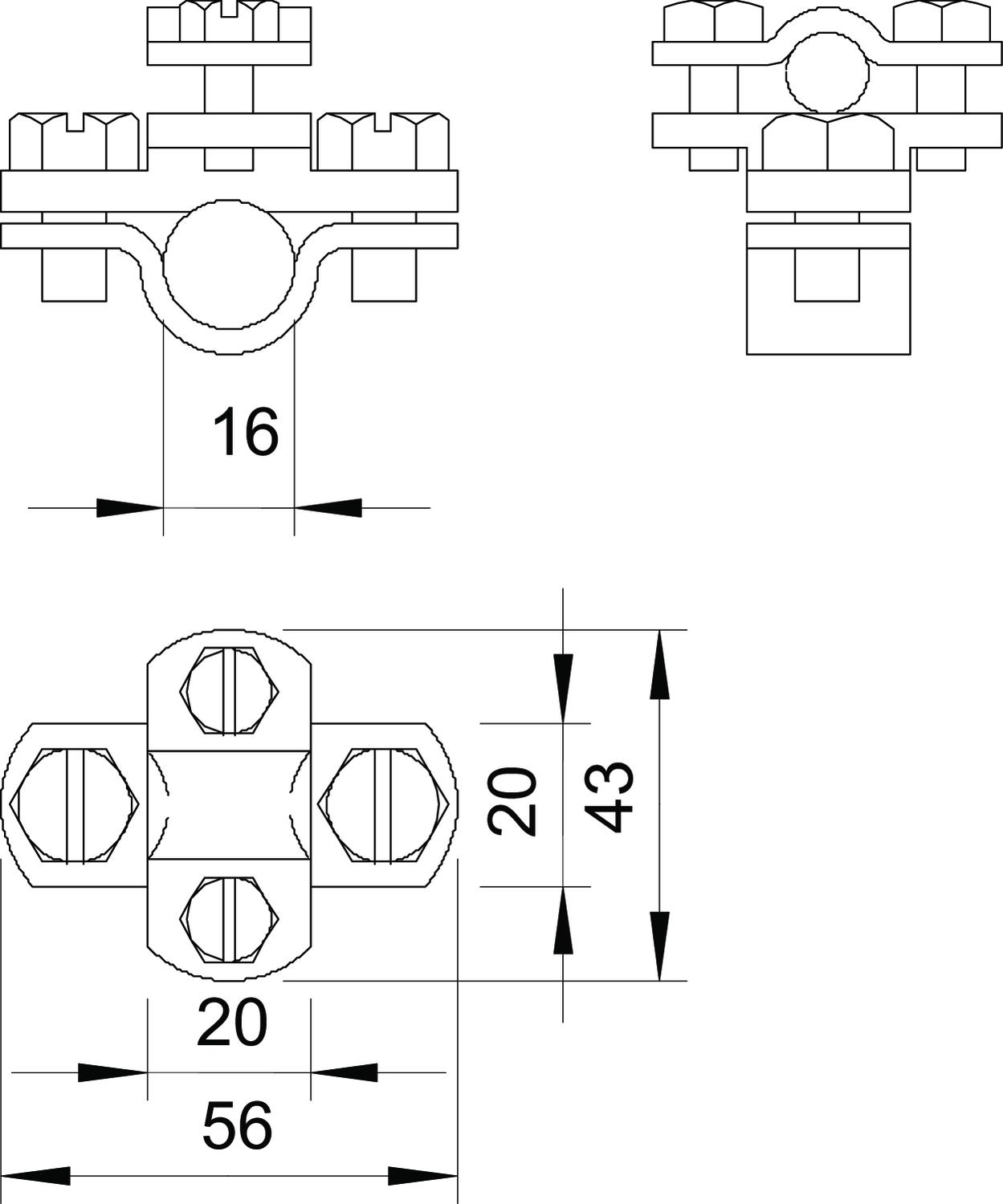

Dimension 8-10mm Fit Rd 8-10/16 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material cast steel Suitable for connection Round conductor Rd 8-10 / Rd 16 Surface Hot-dip galvanised - All types
