Reducer / stop-end FS
Item no. 7108109 | EAN 4012196241453
- Product description
-

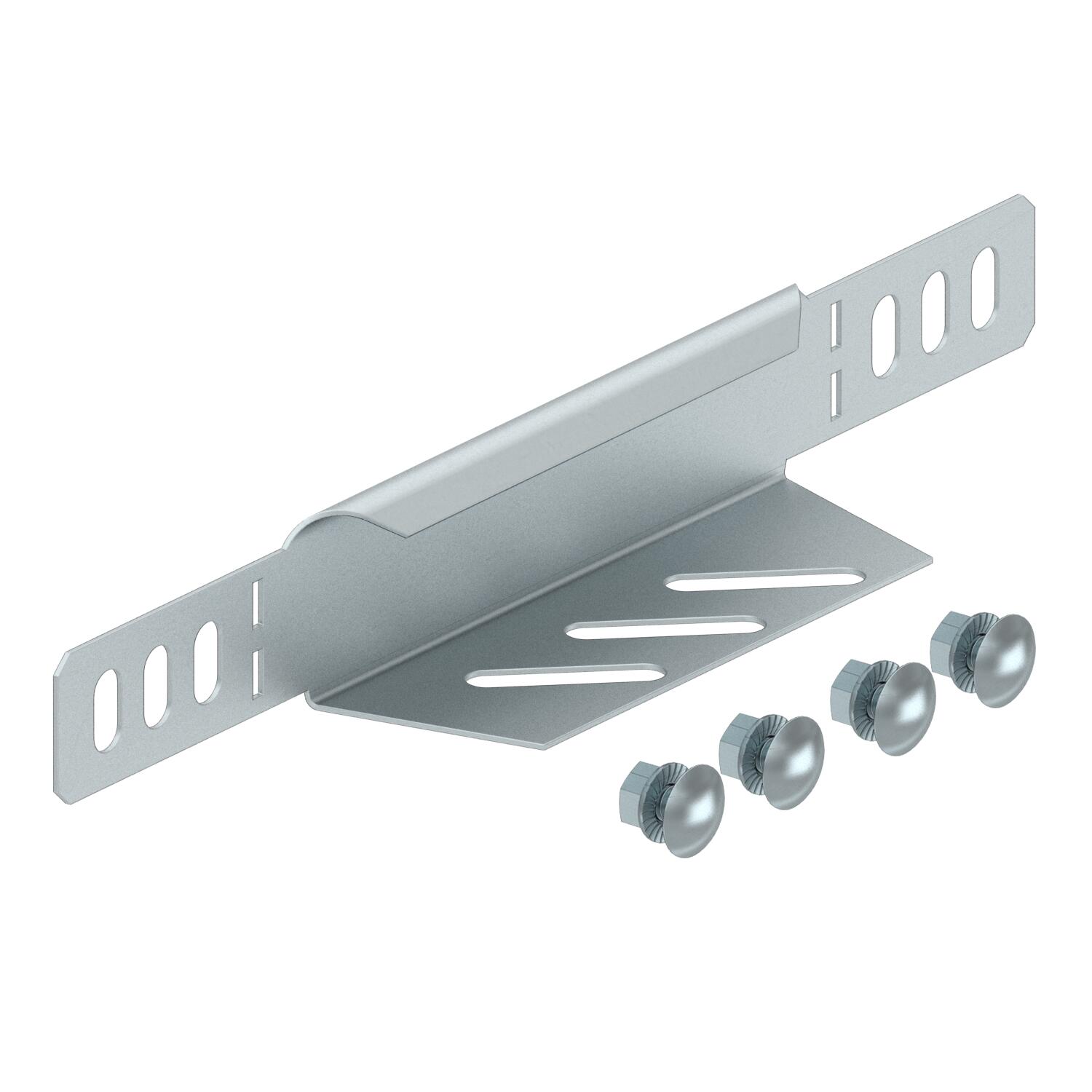

Product descriptionReducer/stop-end for cable trays with side height 35 mm.
-
- Technical data
-
Technical data

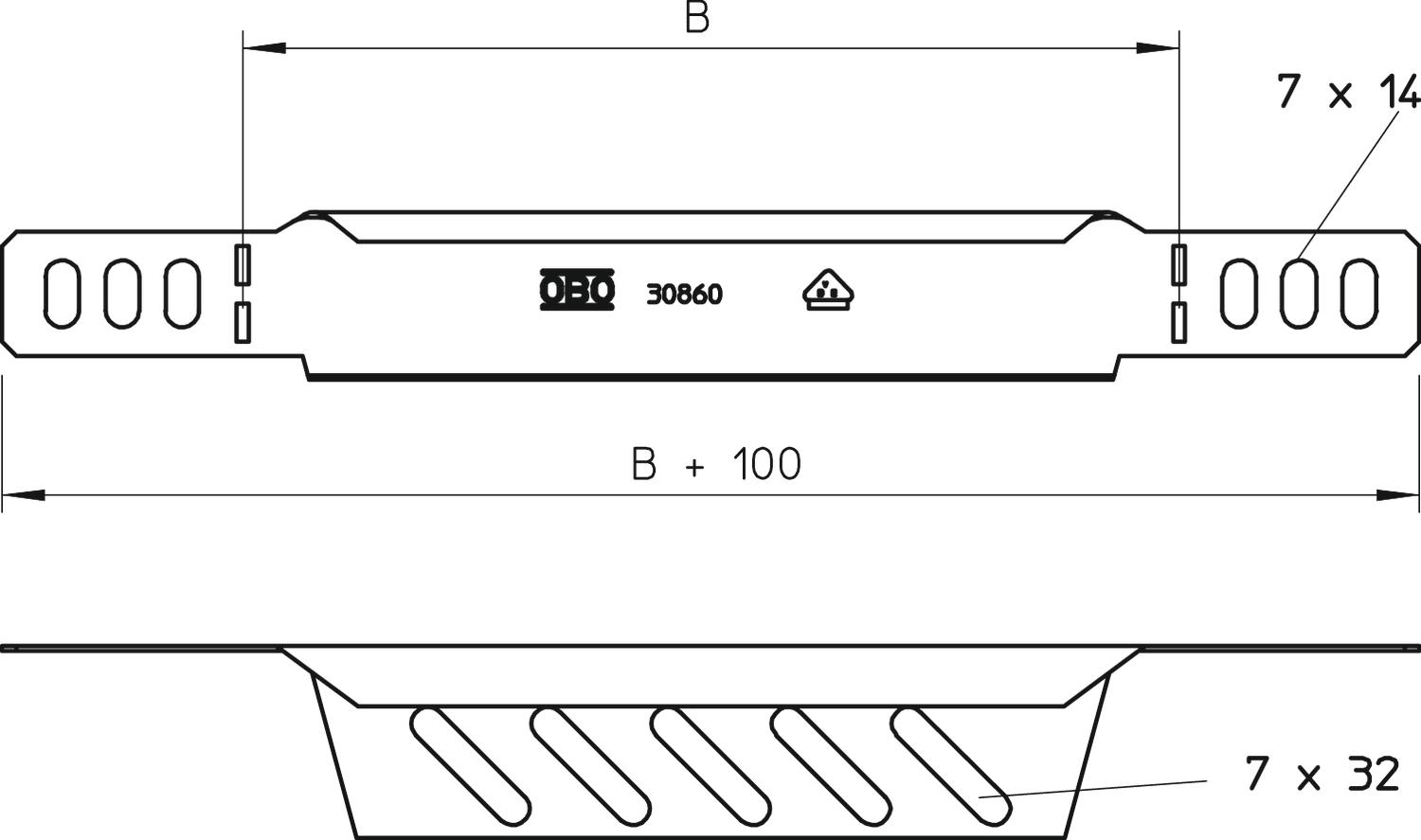

Colour zinc Dimension 35x100 Dimension B 100 mm Height 35 mm Height 1 in Maintain electrical functions no Material Steel Plate thickness 1 mm Rustproof steel, pickled no Surface Strip galvanized Wide-span version no Width 100 mm Width 4 in - All types
- Downloads
-
Data sheet RWEB 310 FS / 7108109 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RWEB 310 FS / 7108109 , 0.11MB , pdfREACH Declaration of conformity RWEB 310 FS / 7108109 , 0.12MB , pdfRoHS Declaration of conformity RWEB 310 FS / 7108109 , 0.12MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
