Reducer/stop-end 60 FS
Item no. 7109105 | EAN 4012196241637
- Product description
-
Product description

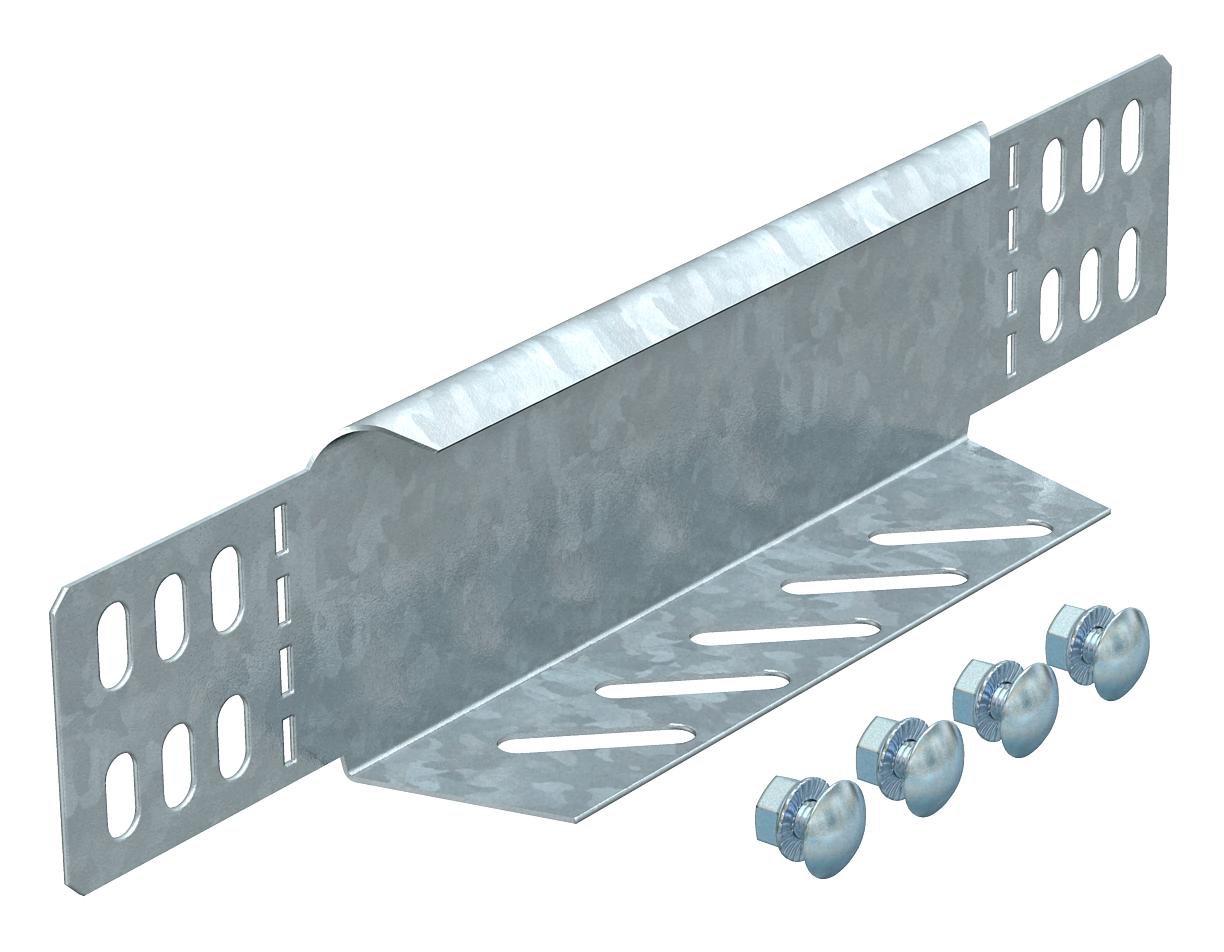

Reducer/stop-end plate for cable trays with side height 60 mm.
-
- Technical data
-
Technical data

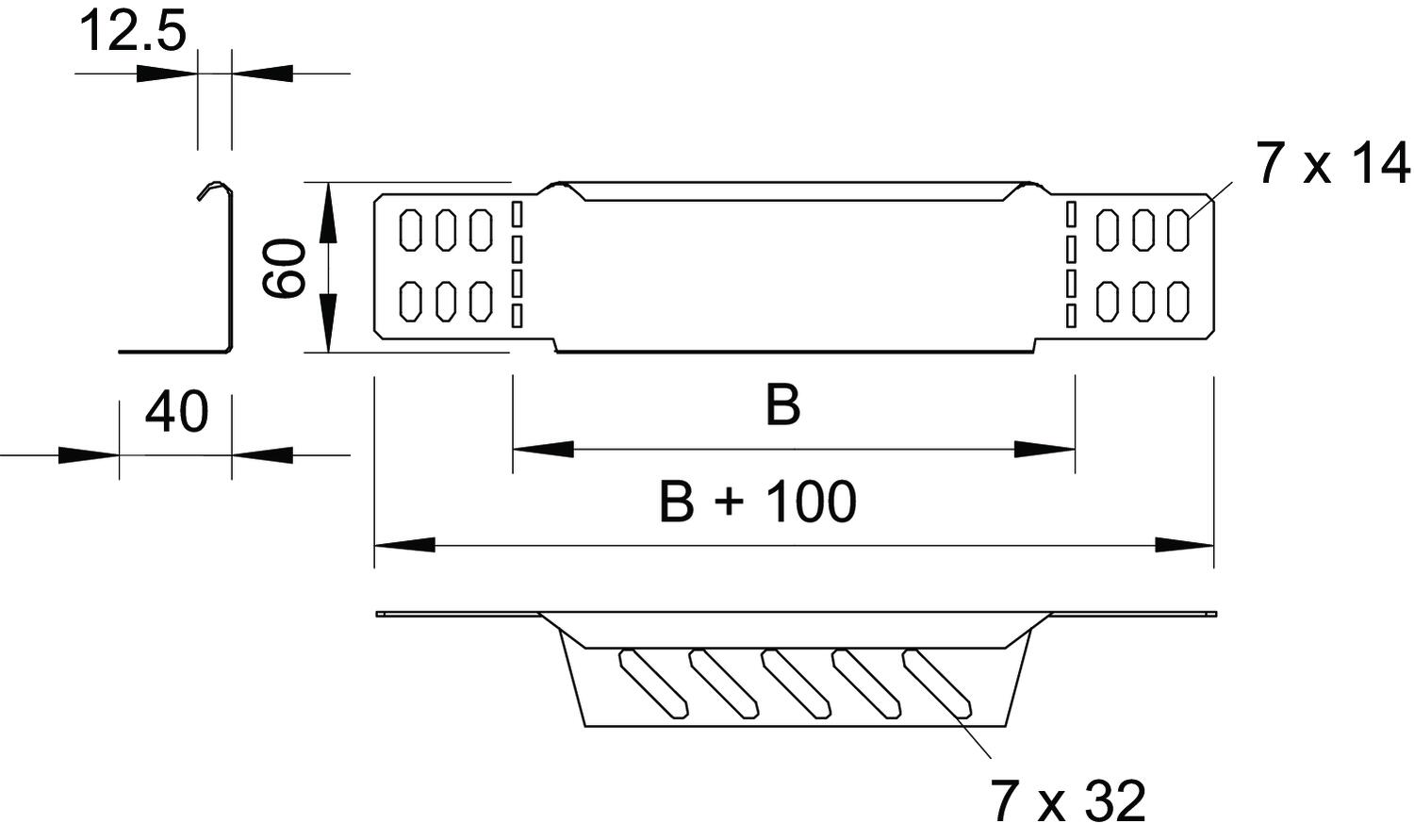

Dimension 60x100 Dimension B 100 mm Height 2 in Height 60 mm Maintain electrical functions no Material Steel Plate thickness 1 mm Rustproof steel, pickled no Surface Strip galvanized Width 100 mm Width 4 in - All types
- Downloads
-
Data sheet RWEB 610 FS / 7109105 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RWEB 610 FS / 7109105 , 0.10MB , pdfUK Declaration of Conformity RWEB 610 FS / 7109105 , 0.14MB , pdfREACH Declaration of conformity RWEB 610 FS / 7109105 , 0.12MB , pdfRoHS Declaration of conformity RWEB 610 FS / 7109105 , 0.12MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
