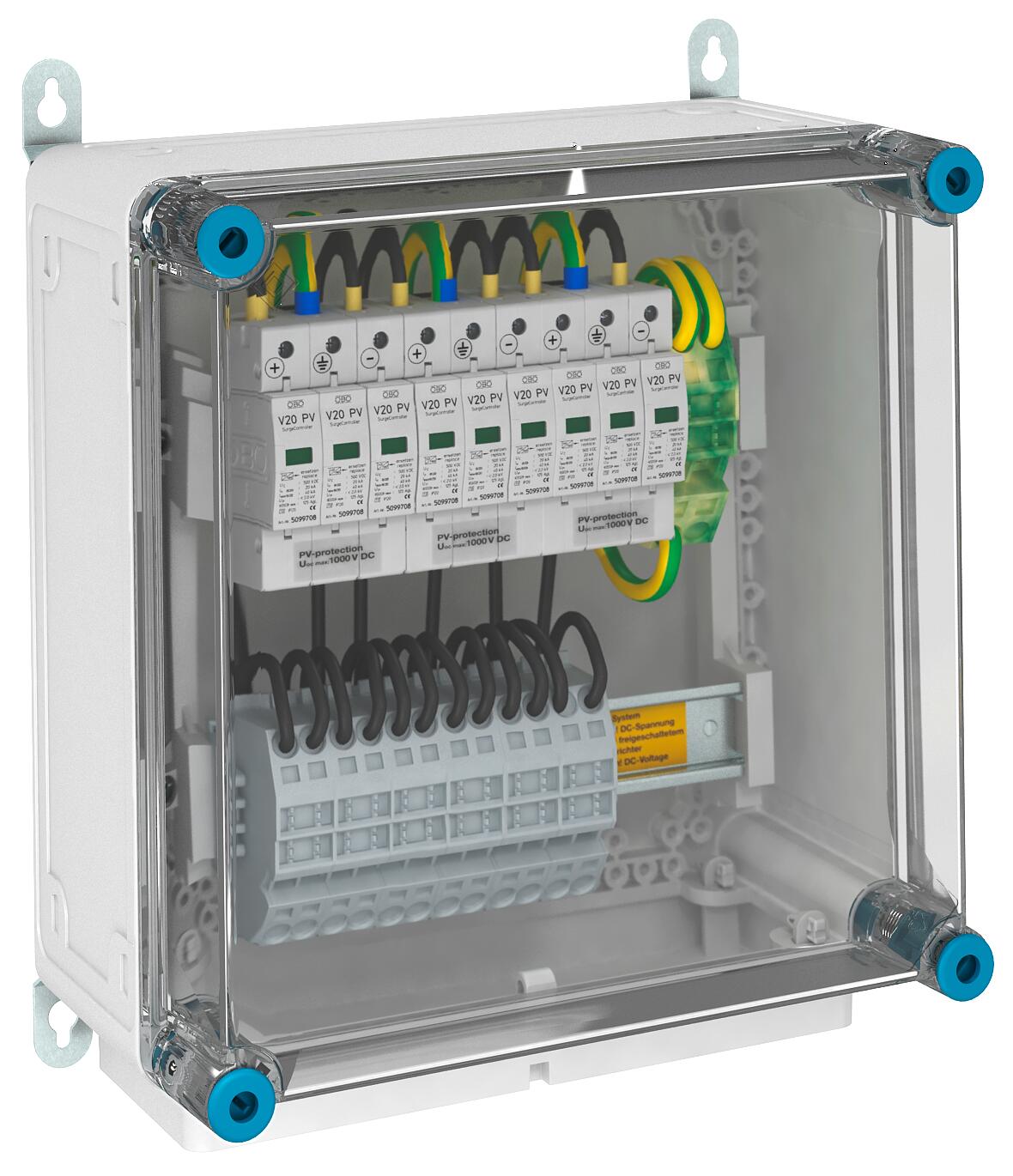

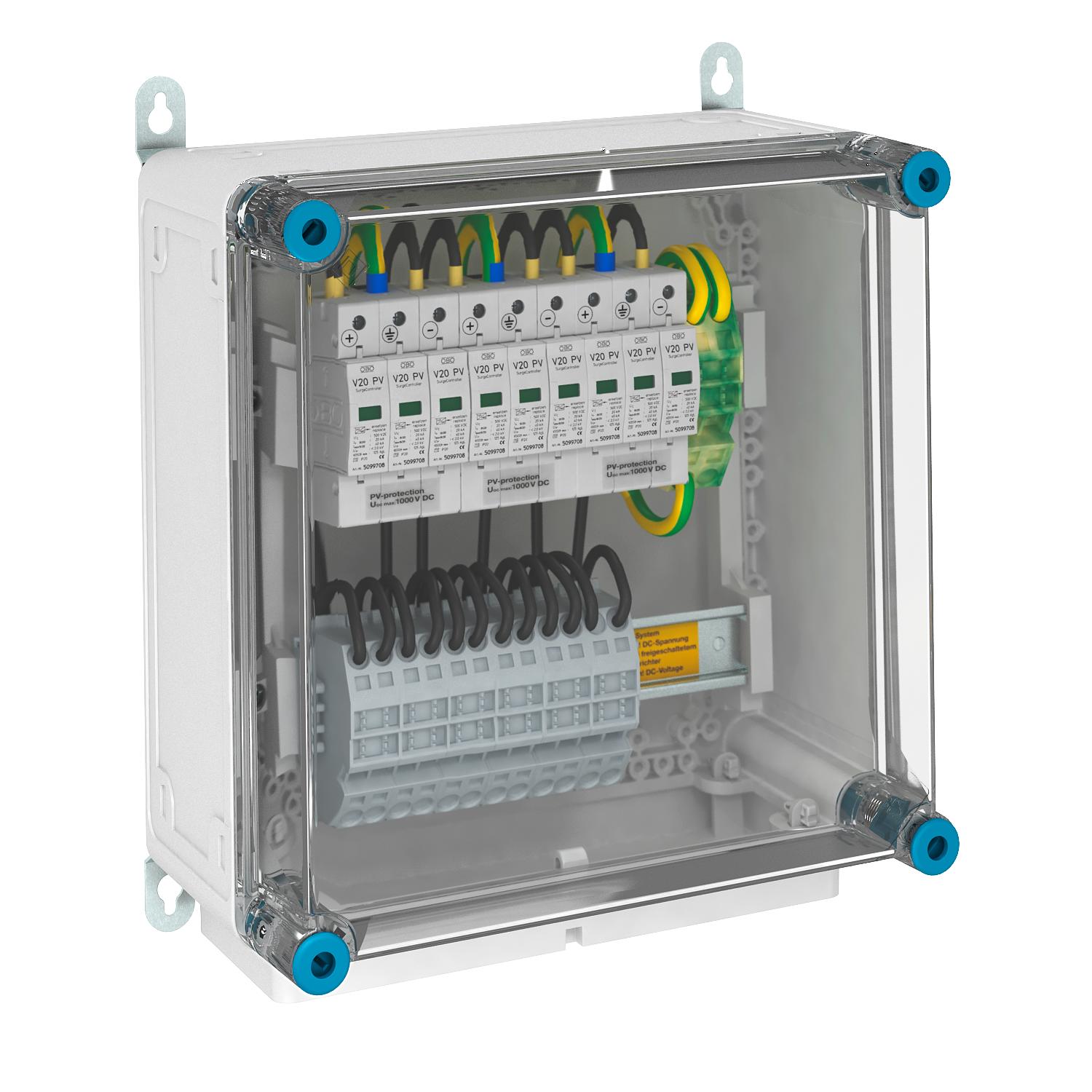

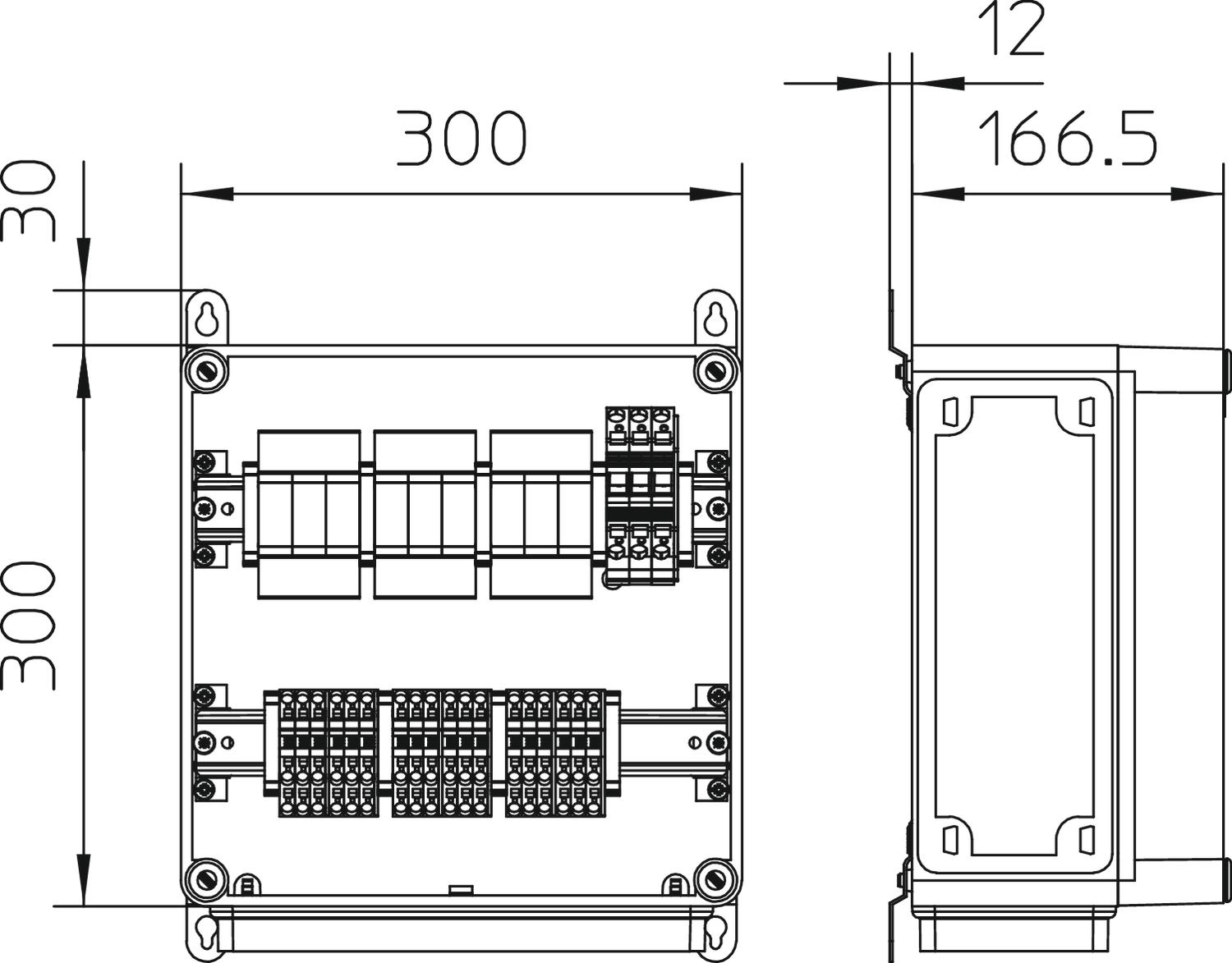

PV system solution, type 2, for inverter with 3 MPP trackers, 1,000 V DC IP65

PV system solution, type 2, for inverter with 3 MPP trackers, 1,000 V DC

Item no. 5088585 | EAN 4012196037490

Item no. / Types	5088585 / VG-CPV 1000K 333

Protection rating	IP65

Product description

Product description

System solution for photovoltaic inverter with 3 separate MPP trackers

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 4.0 kV (Voc max = 1,000 V DC with V20-B+C/0-500PV)
• Per protection device, there are 6 terminals up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside, including cable gland kit

For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	20 kA
Blow-out	yes
Cable type for surge protection devices	Power cable DC (PV)
Conductor cross-section, flexible (fine-wire), min.	6 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,5 mm²
DC network form	yes
Dimension	1000V DC
Installation type	Pre-mounted in the housing
Integrated back-up fuse	no
IT network form	no
Lightning protection zone LPZ	1→2
Max. mains-side overcurrent protection	125
Maximum back-up fuse	125 A
Maximum continuous voltage DC	1000 V
Maximum discharge current (8/20 μs)	40 kA
Network form	DC

Nominal discharge current (8/20 µs)	20 kA
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Protection rating	IP65
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 2
SPD to IEC 61643-1	Class II
Test class, type 2	yes
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Version for	For three MPP and with terminal connection
