Note: This article is discontinued.

PV system solution, type 1+2, for inverter with 2 MPP trackers, 900 V DC

Item no. 5088566 | EAN 4012196190263

5088566 / VG-BCPV900K 22
IP66
Product description
Product description

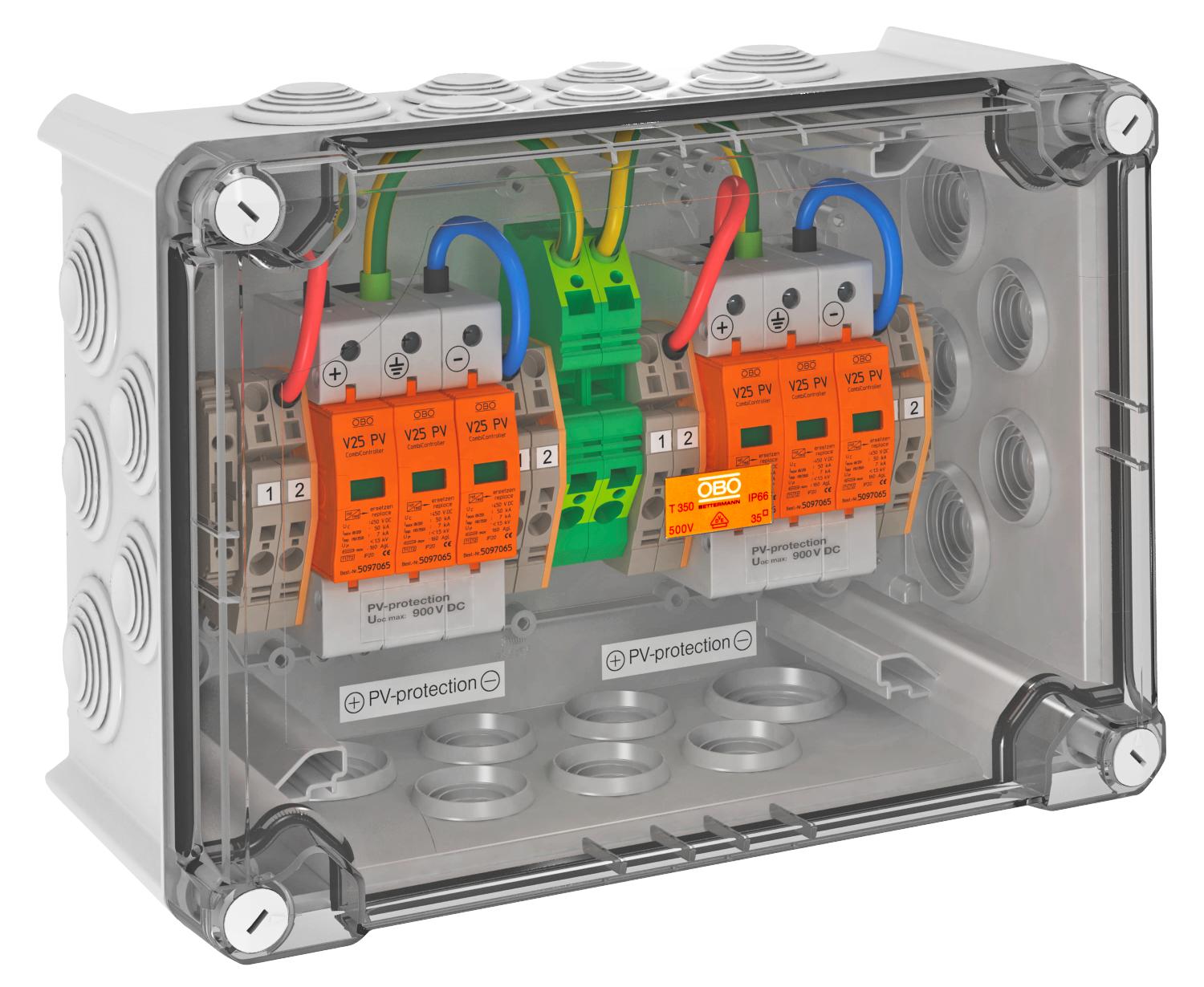

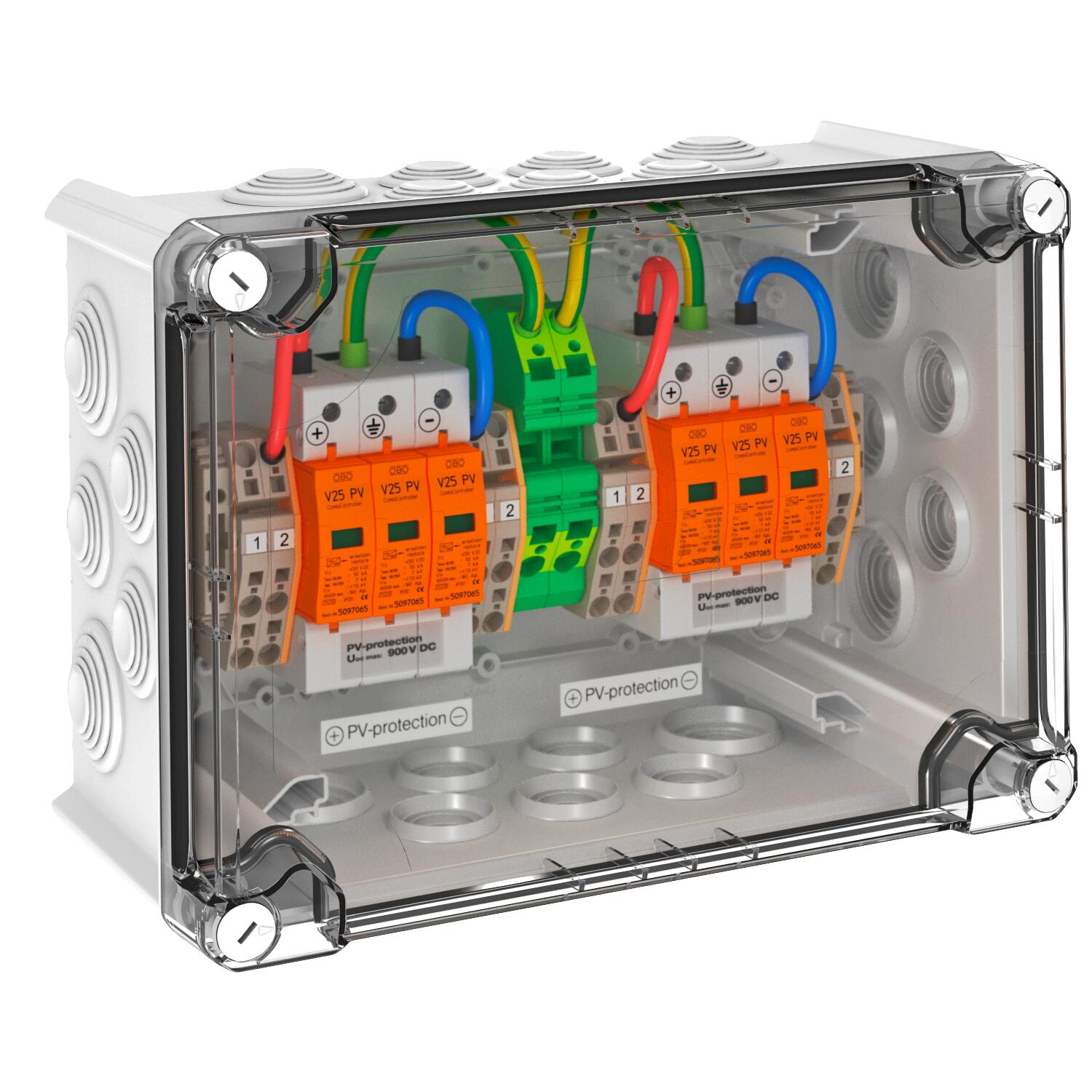

System solution for photovoltaic inverter with 2 separate MPP trackers

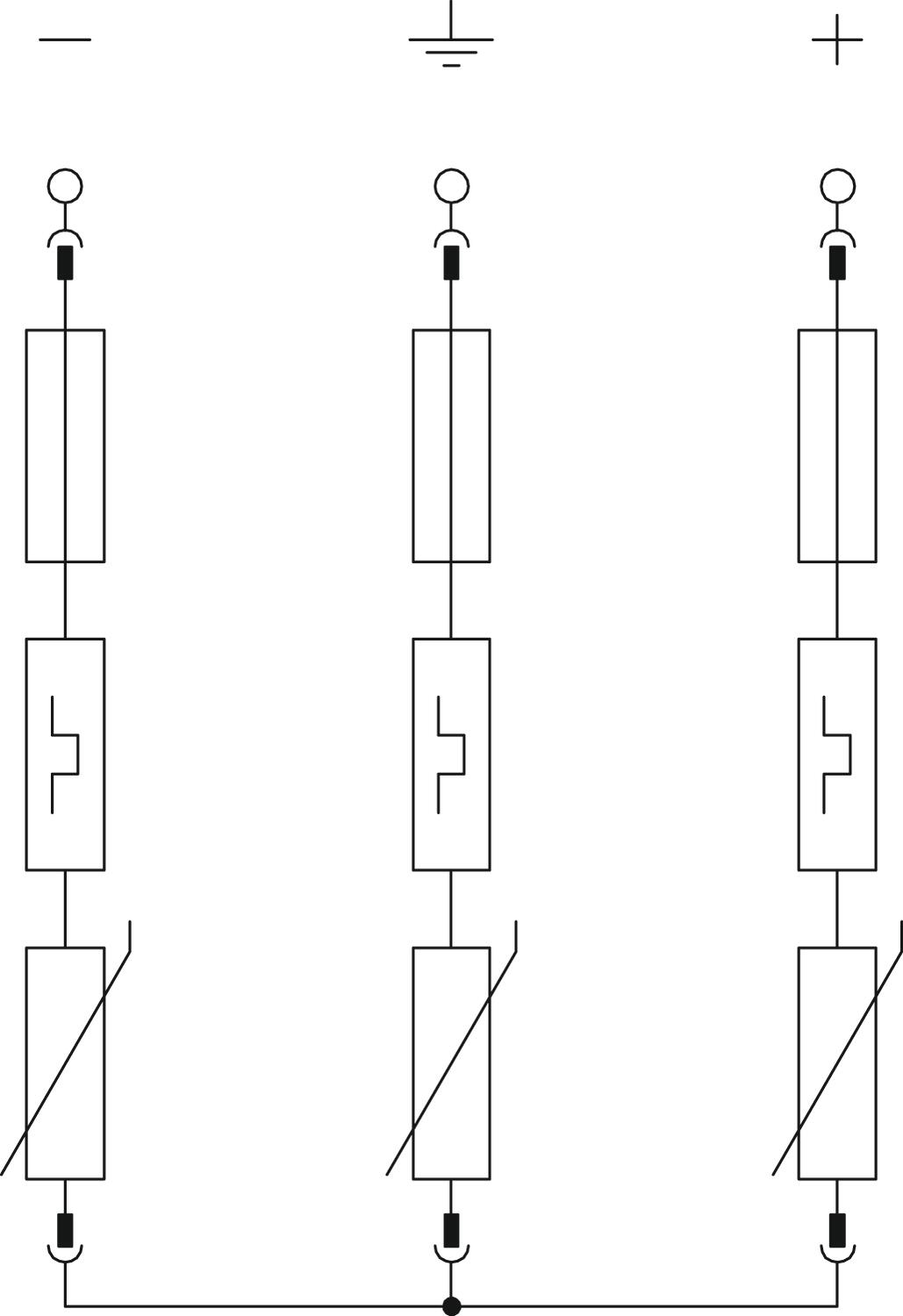

• Varistor arrester, connectable with disconnecting device in error-resistant Y circuit to VDE 0100-712 (50539-12)

• Low DC protection level: < 4.0 kV (Uoc max = 1,000 V DC with V20-C/0-500PV)

• Low DC protection level: < 3.0 kV (Uoc max = 900 V DC with V25-B+C/0-450PV)

• Per protection device, there are 4 terminals up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal

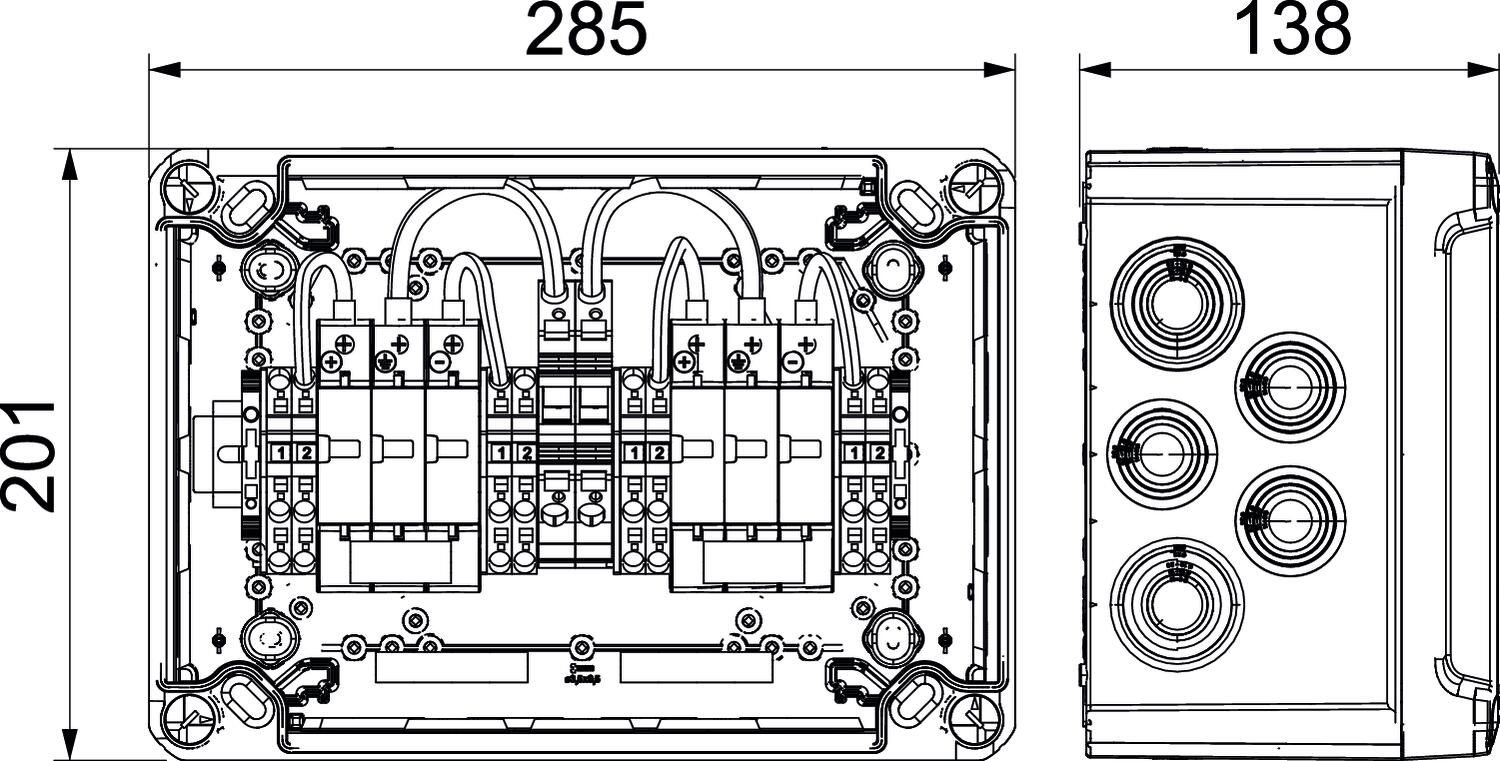

• Pre-mounted in polycarbonate housing (IP66), UV-resistant for the use outside, including cable gland kit



For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!



  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • Installation electrotechnical expertise
Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 30 kA
Blow-out yes
Cable type for surge protection devices Power cable DC (PV)
Colour Light grey; RAL 7035
Conductor cross-section, flexible (fine-wire), min. 6 mm²
Conductor cross-section, rigid (single-wire/multiwire), max. 10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 0,5 mm²
DC network form yes
Dimension 900V DC
Installation type Pre-mounted in the housing
IT network form no
Lightning protection zone LPZ 0→2
Lightning surge current (10/350 μs) 7 kA
Max. mains-side overcurrent protection 160
Maximum back-up fuse 160 A
Maximum continuous voltage DC 900 V
Maximum discharge current (8/20 μs) 50 kA
Network form DC
Nominal discharge current (8/20 µs) 30 kA
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Other network form no
Protection rating IP66
Remote signalling no
Response time <25 ns
Signalling on device Visual
SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-1 Class II
Test class, type 2 yes
TN network form no
TN-C network form no
TN-C-S network form no
TN-S network form no
TT network form no
Version for For two MPP and with terminal connection
All types

All types

Types Protection rating Item no. Quantity SSU
VG-BCPV900K 22 IP66 5088566
1 piece
