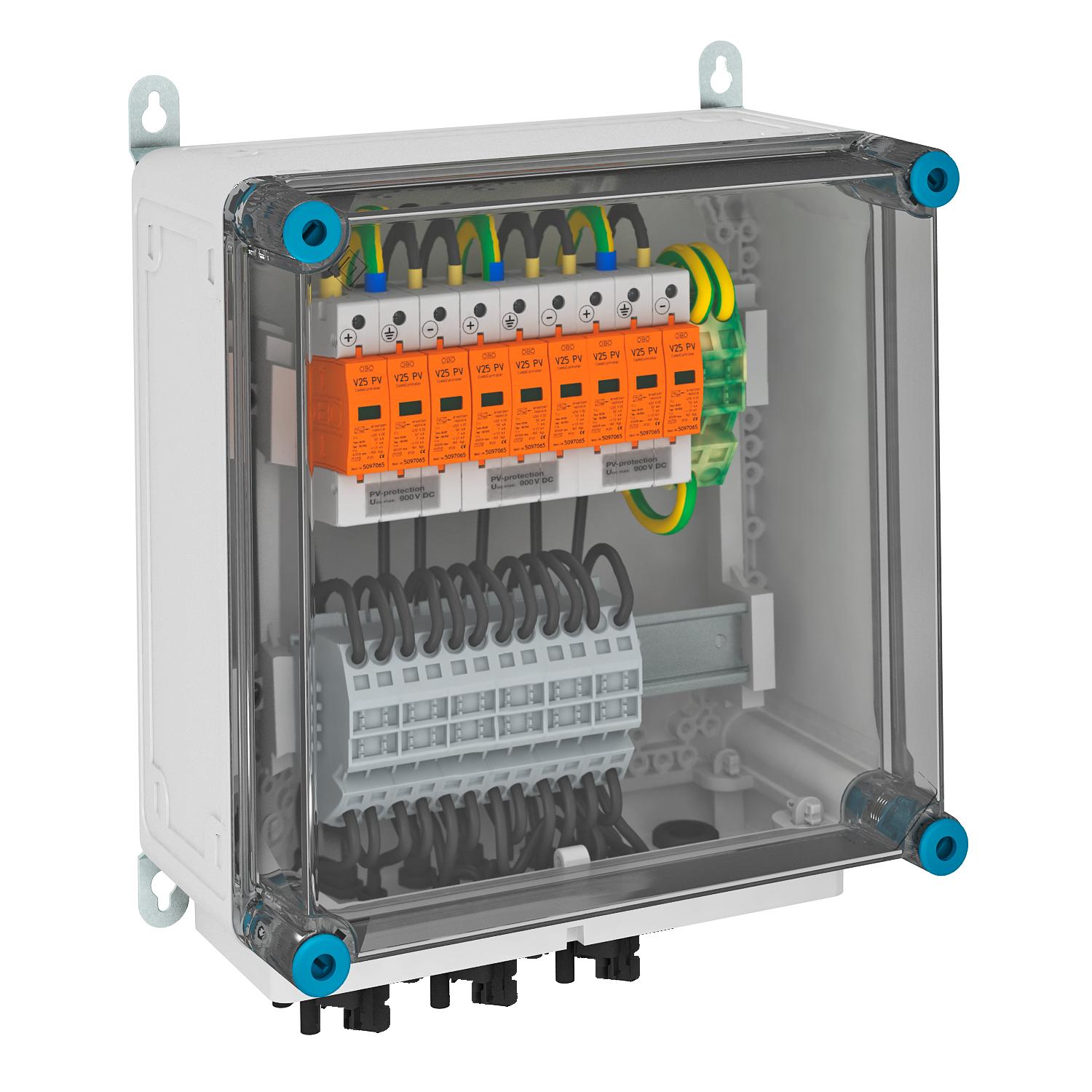

PV housing for inverter with 3 MPP trackers, type 1+2, 900 V DC

Item no. 5088629 | EAN 4012195872658

5088629 / VG-BC DCPH900-31
IP65
Product description
Product description
System solution with MC4 connector for photovoltaic inverter with 3 separate MPP trackers

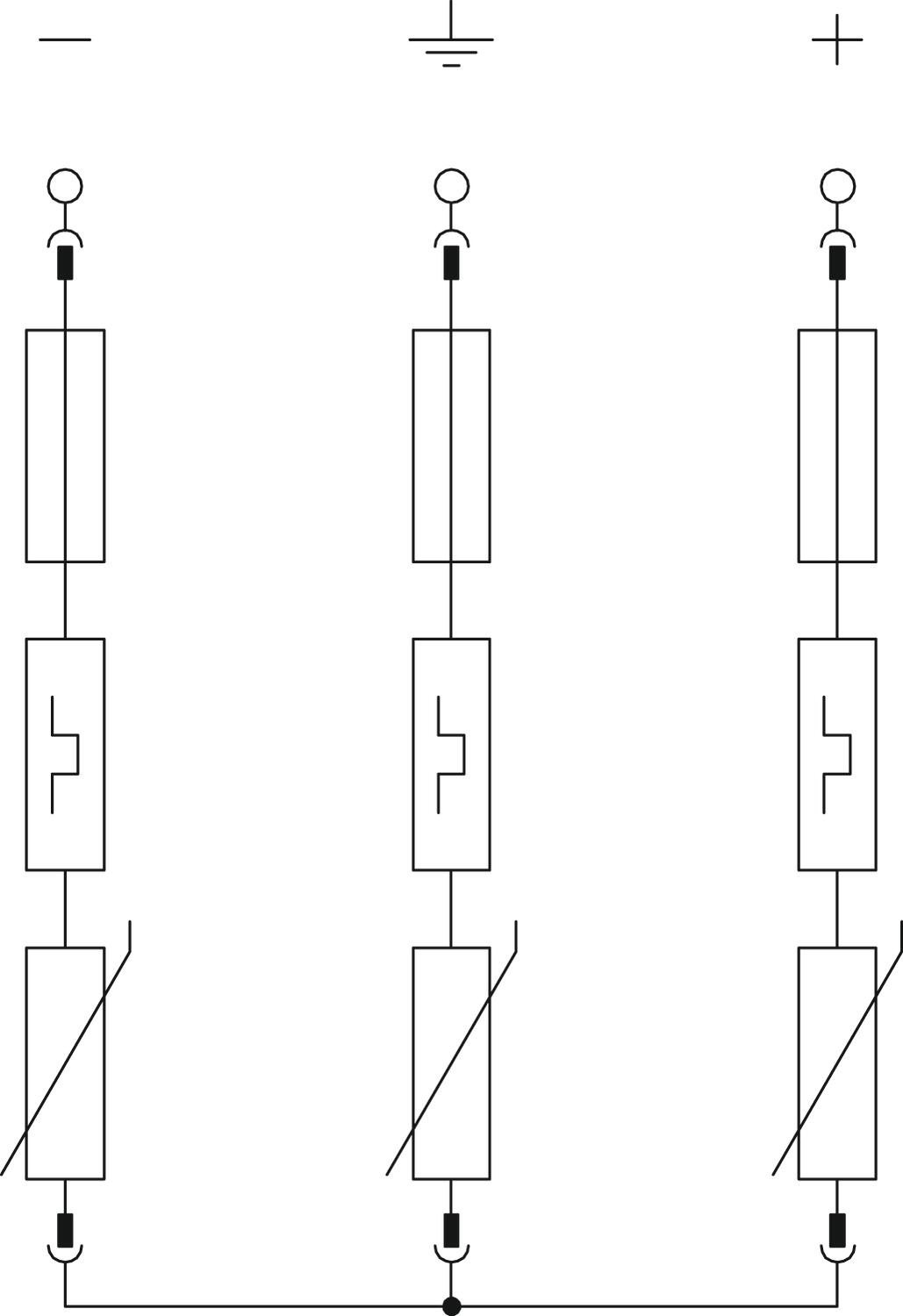

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)

• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-450PV)

• Two PV string inputs (MC4 plug connector) at one MPP inverter input, up to 30 A DC per terminal

• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside




For DC protection of the inverter of photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!


  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • Installation electrotechnical expertise
Technical data

Connectivity options

Arrester surge current (8/20 µs) [total] 30 kA
Cable type for surge protection devices Power cable DC (PV)
DC network form yes

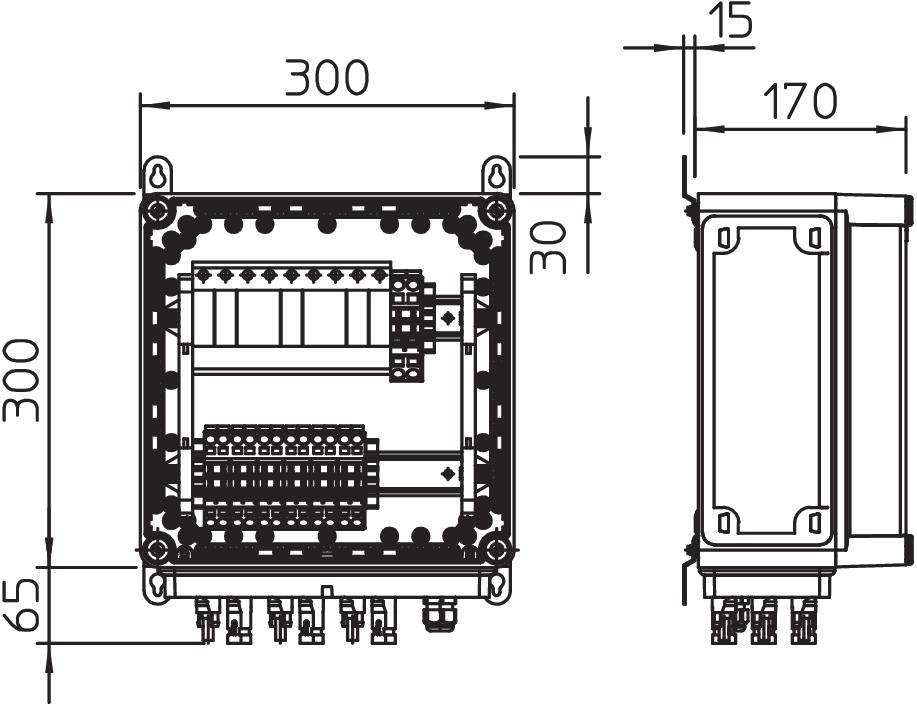

Dimension 900V DC
Installation type Pre-mounted in the housing
IT network form no
Lightning protection zone LPZ 0→2
Lightning surge current (10/350 μs) 7 kA
Max. mains-side overcurrent protection 160
Maximum back-up fuse 160 A
Maximum continuous voltage DC 900 V
Maximum discharge current (8/20 μs) 50 kA
Network form DC
Nominal discharge current (8/20 µs) 30 kA
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Other network form no
Protection rating IP65
Remote signalling no
Response time <25 ns
Signalling on device Visual
SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-1 Class I+II
Test class, type 2 yes
TN network form no
TN-C network form no
TN-C-S network form no
TN-S network form no
TT network form no
Version for For three MPP and with MC4 connection
All types

All types

Types Protection rating Item no. Quantity SSU
VG-BC DCPH900-31 IP65 5088629
1 piece
