PV housing for inverter with 1 MPP tracker, type 1+2
Item no. 5088693 | EAN 4012195613725
- Product description
-

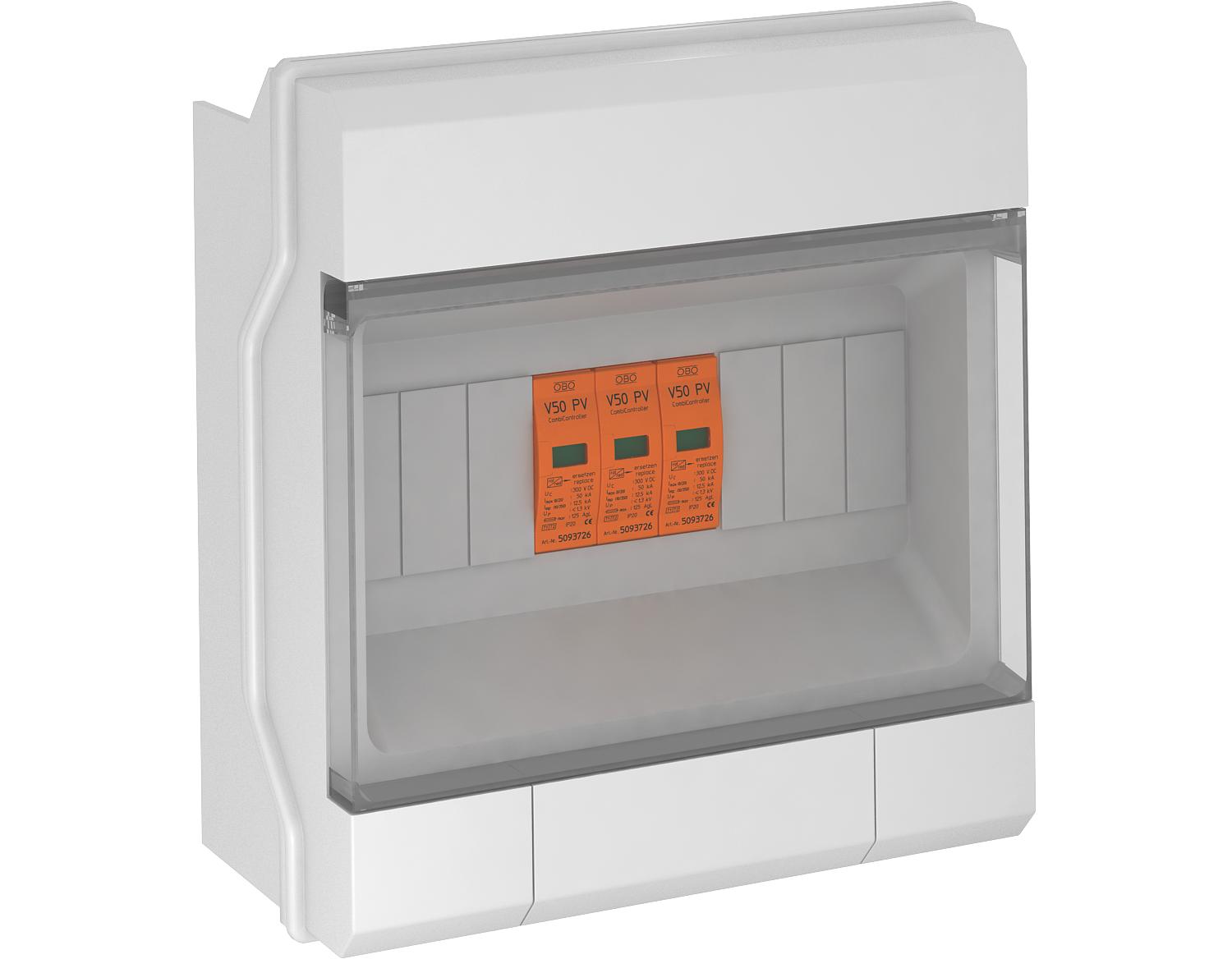

Product descriptionSystem solution for photovoltaic inverter with 1 MPP tracker

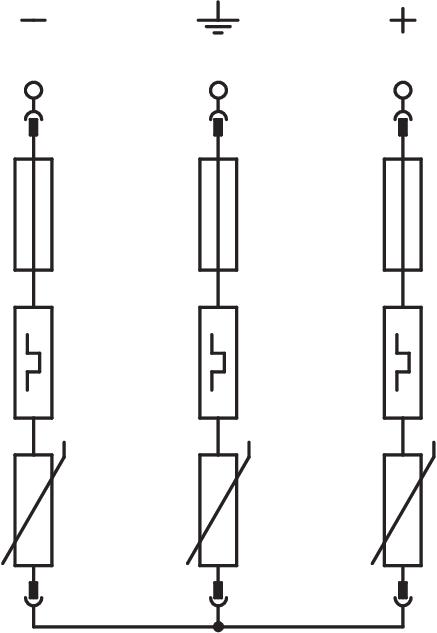

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 3.0 kV (Uoc max. = 600 VDC with V50-B+C/0-300PV / V20-C/0-300PV)
• Per protection device, there are 10 terminals up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside, including cable gland kit
For DC protection of the inverter in photovoltaic systems.
If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!
-

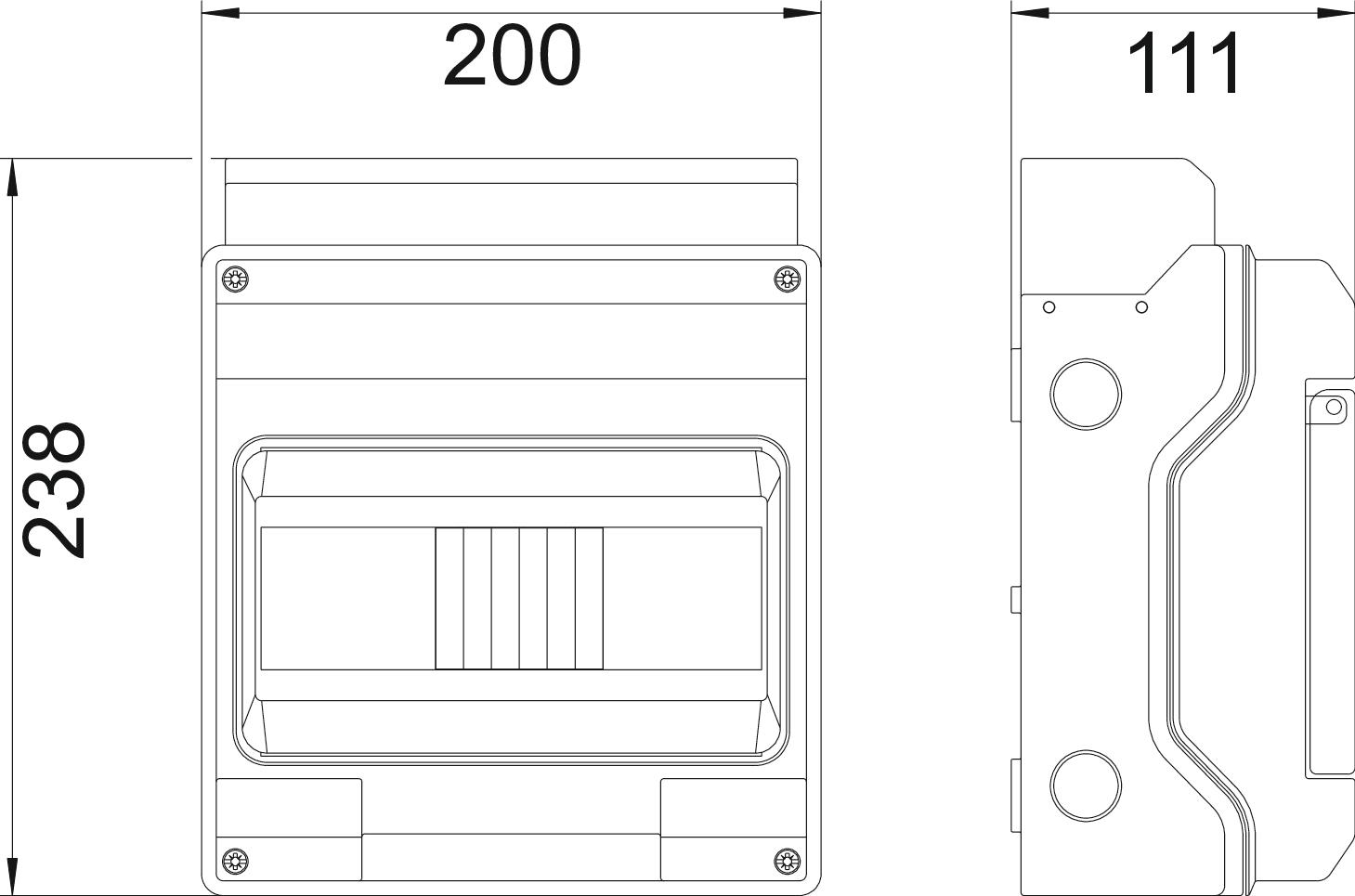

- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 30 kA Blow-out no Cable type for surge protection devices Power cable DC (PV) Conductor cross-section, flexible (fine-wire), min. 6 mm² Conductor cross-section, rigid (single-wire/multiwire), max. 6 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 0,5 mm² DC network form yes Dimension 600V DC Installation type Pre-mounted in the housing IT network form no Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 12,5 kA Max. mains-side overcurrent protection 125 Max. PV voltage 600 V Maximum back-up fuse 125 A Maximum continuous voltage DC 600 V Maximum discharge current (8/20 μs) 50 kA Network form DC Nominal discharge current (8/20 µs) 30 kA Operating temperature, max. 80 °C Operating temperature, min. -40 °C Other network form no Protection rating IP65 Remote signalling no Response time <25 ns Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II TN network form no TN-C network form no TN-C-S network form no TN-S network form no TT network form no Version for Type 1+2 in housing with terminals - All types
