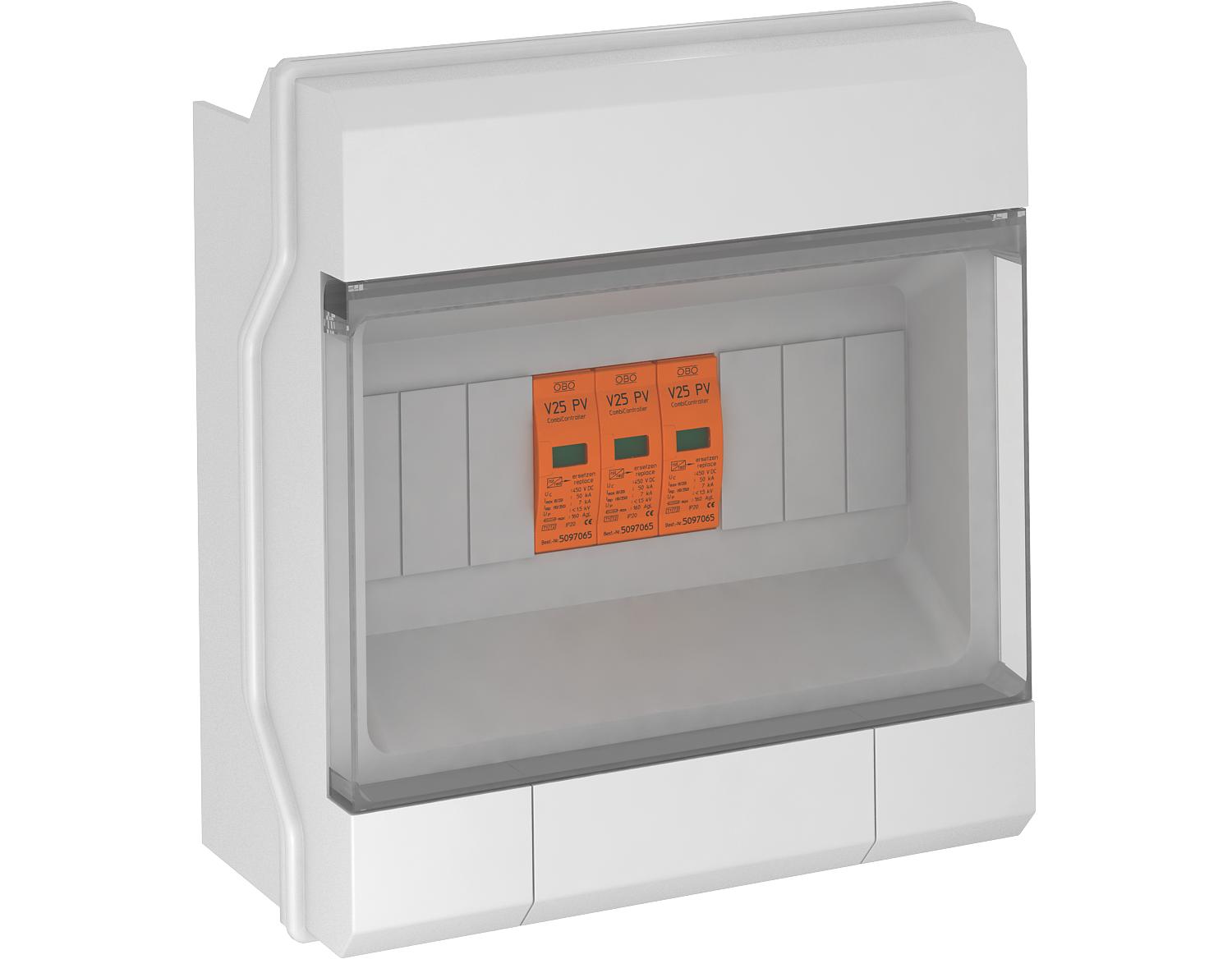

PV housing for inverter with 1 MPP tracker, type 1+2

Item no. 5088692 | EAN 4012195613718

IP65
Product description

Product description

System solution for photovoltaic inverter with 1 MPP tracker

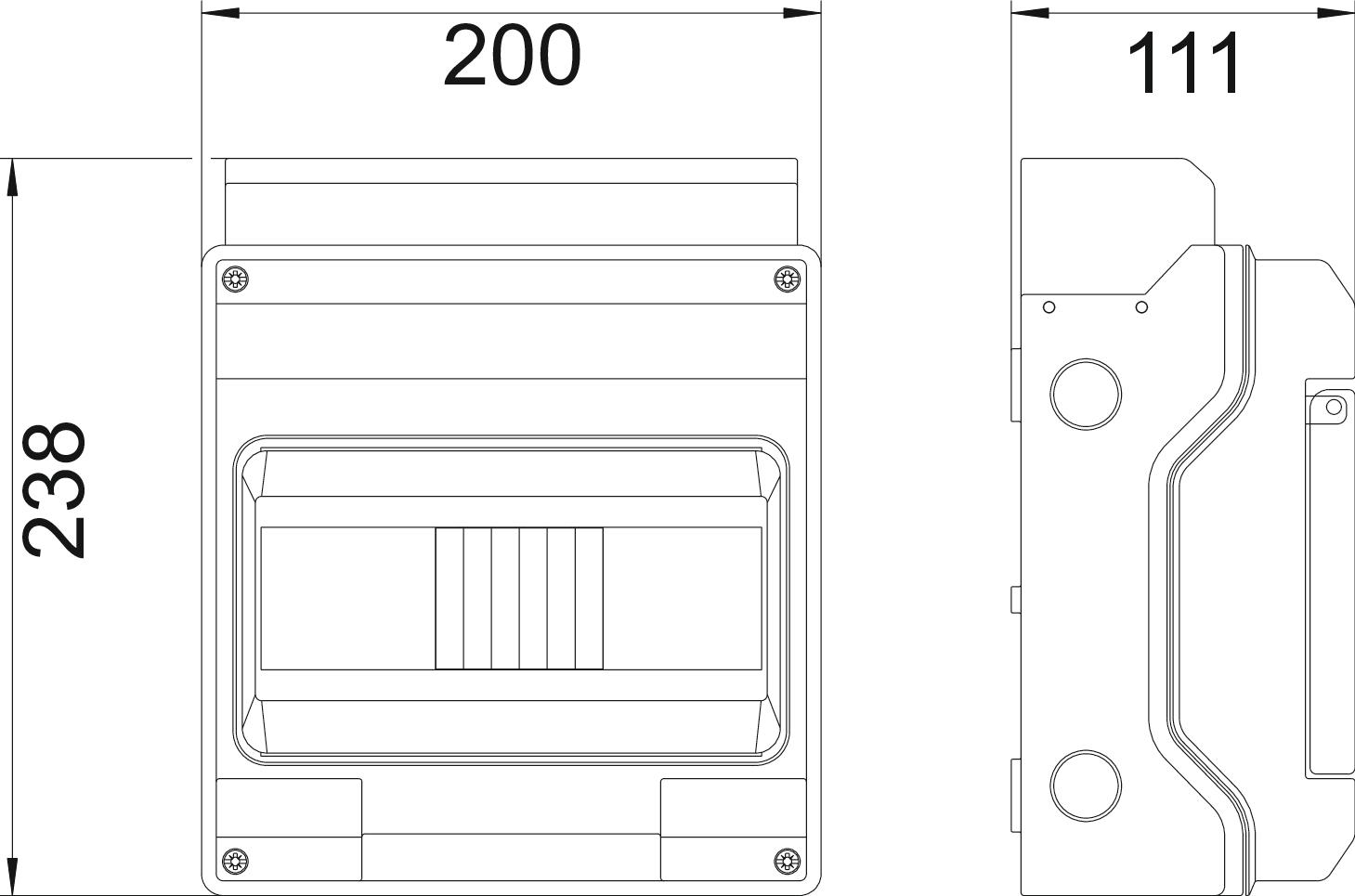

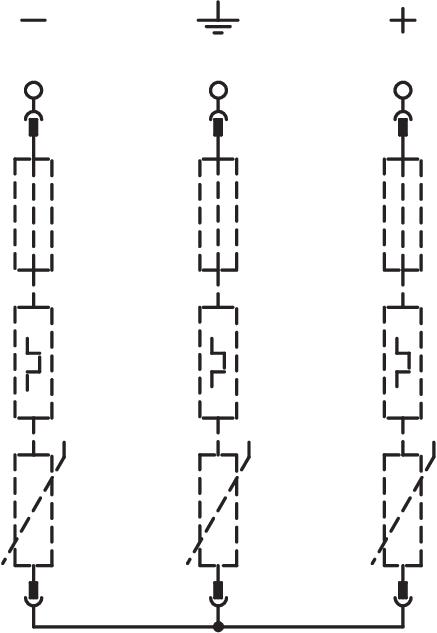

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)
• Low DC protection level: < 3.0 kV (Voc max. = 900 V DC with V25-B+C/0-450PV)
• Per protection device, there are 10 terminals up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal
• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside, including cable gland kit



For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!


  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • Installation electrotechnical expertise
Technical data

Technical data

Blow-out no
Cable type for surge protection devices Power cable DC (PV)
Conductor cross-section, flexible (fine-wire), min. 6 mm²
Conductor cross-section, rigid (single-wire/multiwire), max. 6 mm²
Conductor cross-section, rigid (single-wire/multiwire), min. 0,5 mm²
DC network form yes
Dimension 900V DC
Installation type Pre-mounted in the housing
IT network form no
Lightning protection zone LPZ 0→2
Lightning surge current (10/350 μs) 7 kA
Max. mains-side overcurrent protection 160
Max. PV voltage 900 V
Maximum back-up fuse 160 A
Maximum continuous voltage DC 900 V
Maximum discharge current (8/20 μs) 50 kA
Network form DC
Nominal discharge current (8/20 µs) 30 kA
Operating temperature, max. 80 °C
Operating temperature, min. -40 °C
Other network form no
Protection rating IP65
Remote signalling no
Response time <25 ns
Signalling on device Visual
SPD to EN 61643-11 Type 1+2
SPD to IEC 61643-1 Class I+II
TN network form no
TN-C network form no
TN-C-S network form no
TN-S network form no
TT network form no
Version for Type 1+2 in housing with terminals
All types

All types

Types Protection rating Item no. Quantity SSU
VG-BC DCPH-MS900 IP65 5088692
1 piece
VG-BC DCPH-MS600 IP65 5088693
1 piece
