Note: This article is discontinued. You can find the current article here: 5096849 / Combination arrester, 1-pole

Protection Set PS 2-B+C TNC 2 | 255 | IP20

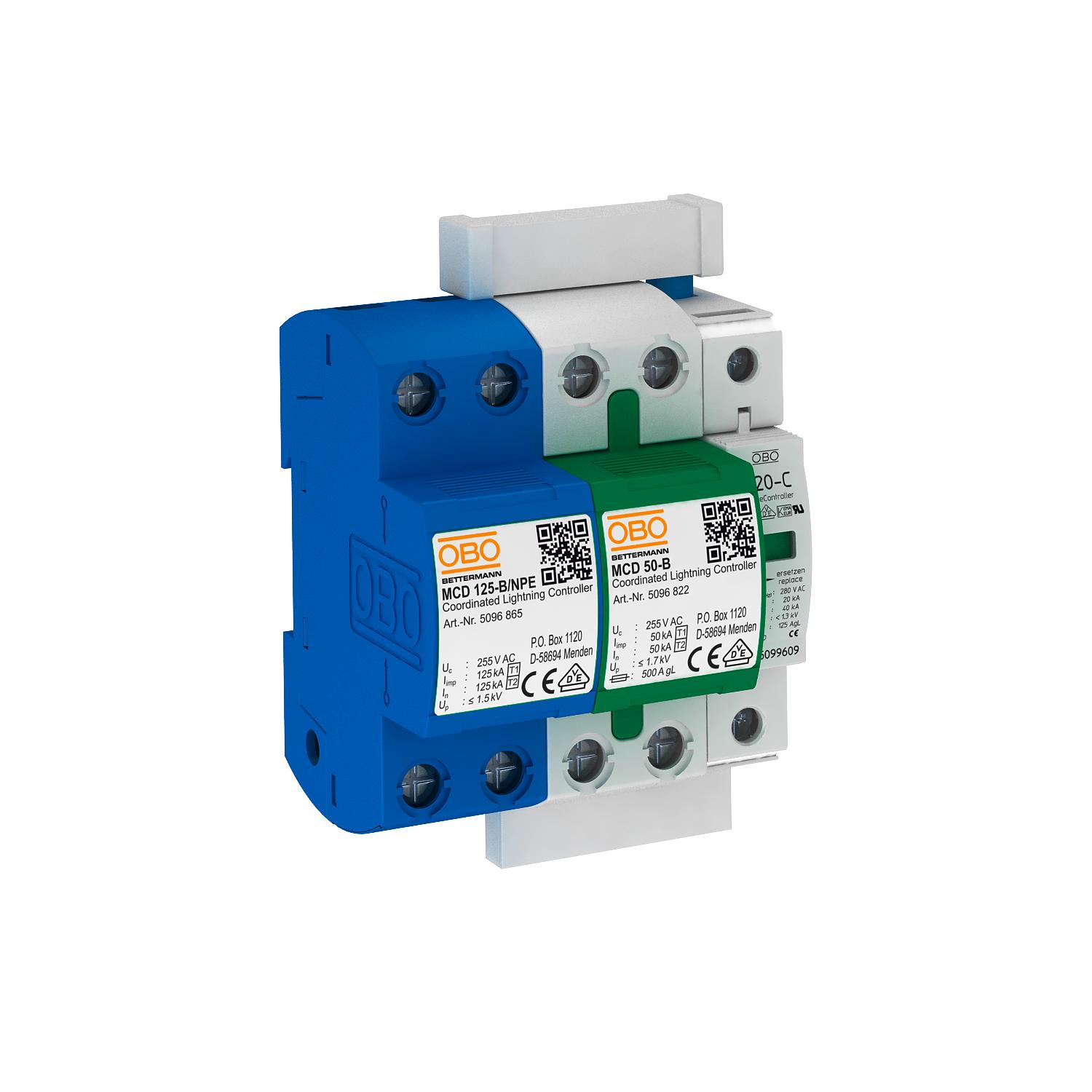

Protection Set PS 2-B+C TNC

Item no. 5089736 | EAN 4012196441679

Item no. / Types

Pole version	2

Maximum continuous voltage AC	255 V

Protection rating	IP20

Product description

Product description

Protection set, lightning and surge arrester combination, type 1+2

• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity to 50 kA (10/350) per pole
• Arrester, connectable, including connecting bridges, labelled connection terminals
• Encapsulated, non-extinguishing arrester for use in distributor housings

Application: Mobile telecommunications systems and industrial systems with special requirements.

Technical data

Connectivity options

Arrester surge current (8/20 µs) [total]	100 kA
Conductor cross-section, rigid (single-wire/multiwire), max.	50 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	10 mm²
Dimension	255V
Installation type	DIN rail 35 mm
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	50 kA
Lightning surge current (10/350)	100 kA
Max. mains-side overcurrent protection	500
Maximum back-up fuse	500 A
Maximum continuous voltage (L-N)	255 V
Maximum continuous voltage (N-PE)	255 V

Maximum continuous voltage AC	255 V
Maximum discharge current (8/20 μs)	100 kA
Nominal discharge current (8/20 µs)	50 kA
Nominal voltage AC (50/60 Hz)	230 V
Operating temperature, max.	85 °C
Operating temperature, min.	-40 °C
Pole version	2
Protection rating	IP20
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
