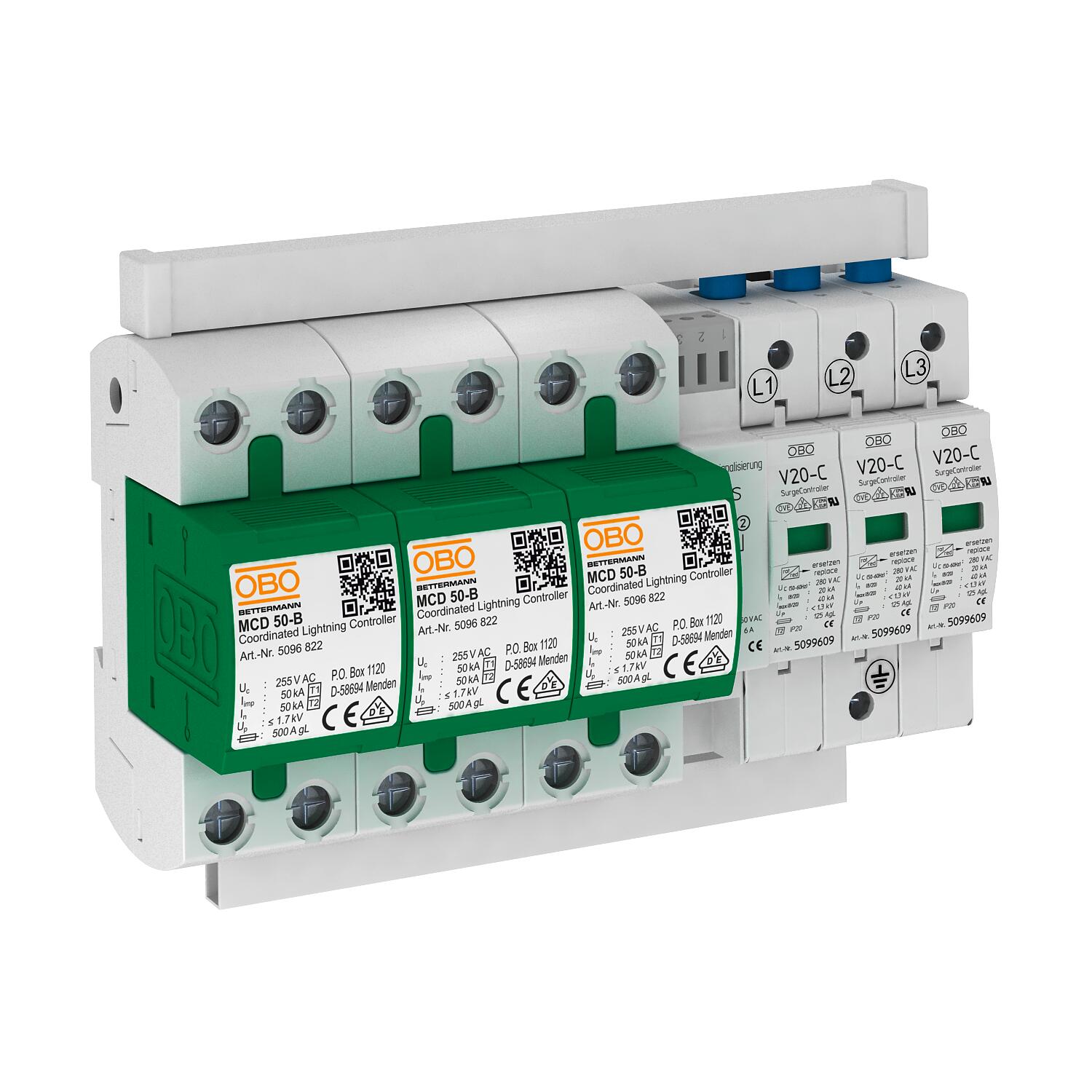

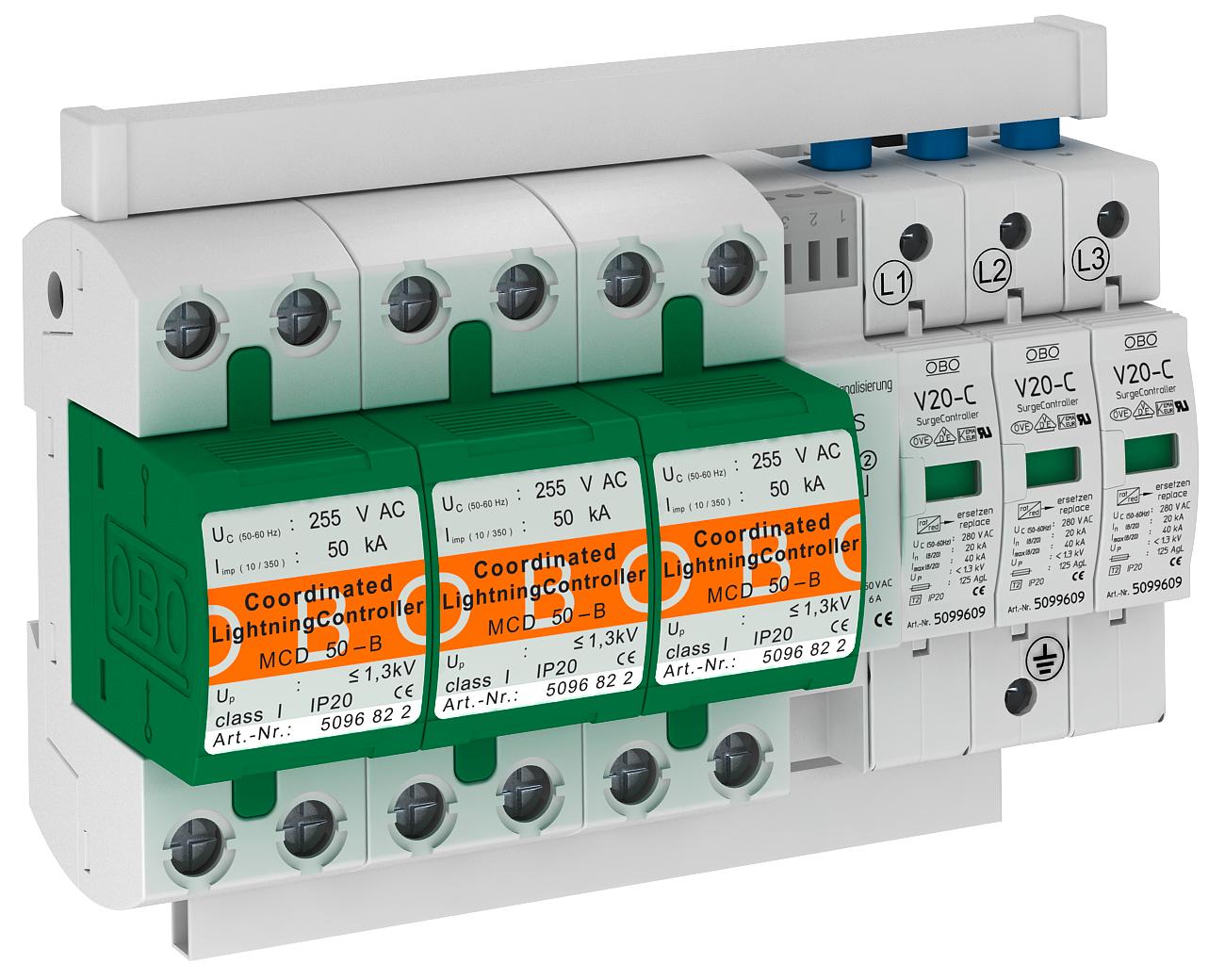

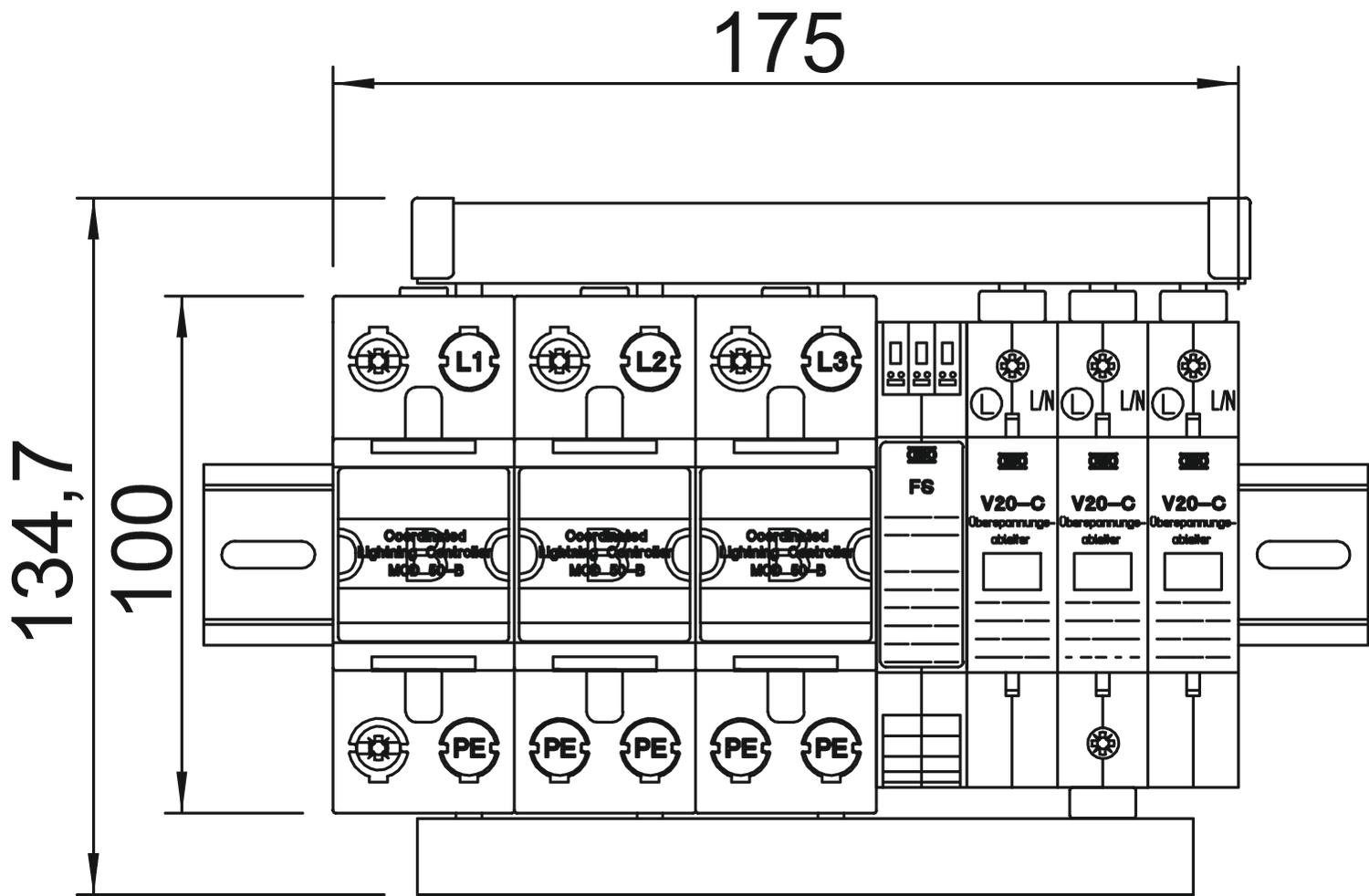

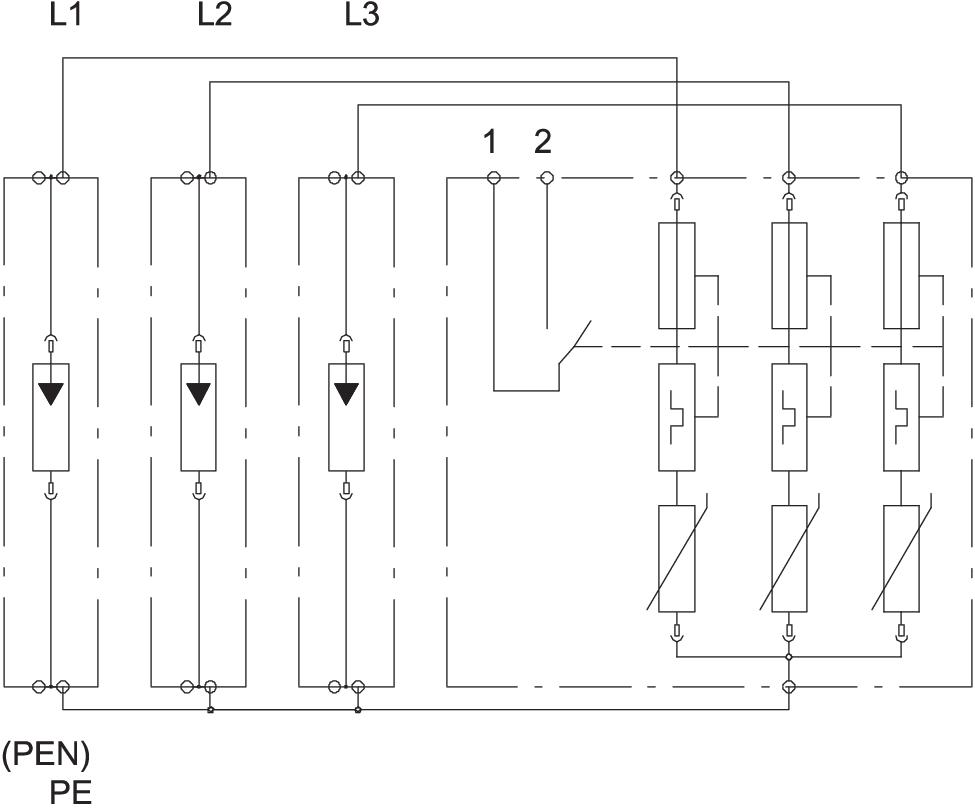

Protection set MCD + V20 3-pole with remote signalling
Item no. 5089756 | EAN 4012195405535
- Product description
-
Product descriptionProtection set, lightning and surge arrester type 1+2
• Arresting capacity 100 kA 10/350 µs, BET-tested
• Pre-mounted and ready for connection, incl. connecting bridges, labelled connection terminals
• With remote signalling and potential-free NO contact for function monitoring
• For use in TN-C network systems
Note: Max. backup fuse (required only if not already fitted in network) 125 A gL/gG.
-
- Technical data
-
Connectivity options
Arrester surge current (8/20 µs) [total] 100 kA Blow-out no Conductor cross-section, rigid (single-wire/multiwire), max. 50 mm² Conductor cross-section, rigid (single-wire/multiwire), min. 10 mm² Dimension 255V Follow current quenching capacity (eff) [N-PE] 25 kA Installation type DIN rail 35 mm Lightning protection zone LPZ 0→2 Lightning surge current (10/350 μs) 50 kA Lightning surge current (10/350) 100 kA Max. mains-side overcurrent protection 125 Maximum back-up fuse 125 A Maximum continuous voltage (L-N) 255 V Maximum continuous voltage AC 255 V Maximum discharge current (8/20 μs) 100 kA Network form TN-C Nominal discharge current (8/20 µs) 50 kA Nominal voltage AC (50/60 Hz) 230 V Operating temperature, max. 85 °C Operating temperature, min. -40 °C Pole number 3 Pole version 3 Protection rating IP20 Remote signalling yes Response time <25 ns Short-circuit resistance 25 kA Short-circuit resistance for max. mains-side overcurrent protection 25 kA Signalling on device Visual SPD to EN 61643-11 Type 1+2 SPD to IEC 61643-1 Class I+II Version for 3-pole with FS; 255 V - All types
- Downloads
-
Data sheet PS3-B+C TNC+FS / 5089756 , 0.32MB , pdfEU declaration of conformity PS3-B+C TNC+FS / 5089756 , 0.11MB , pdfSelection aid Selection aid, surge protection , 2.00MB , pdfNo invitation to tender text is available for this product.
