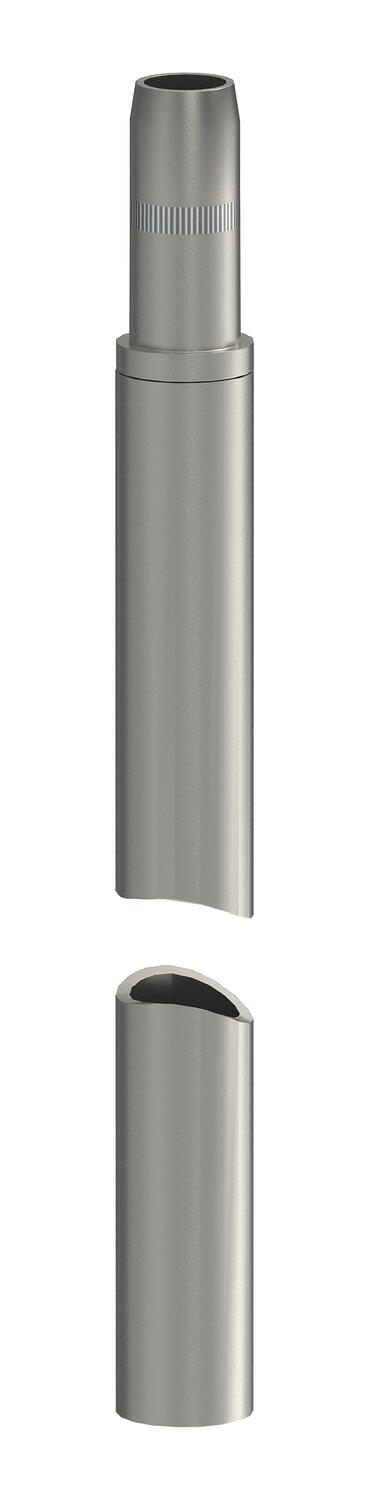

Pipe earth rod LE, A4

Item no. 5000335 | EAN 4012195708834

5000335 / LE ERDER V4A
1500 mm
25 mm
Product description
Product description
• Expandable earth rod system for erecting earthing connections (type A)
• The pipe earth rod system LE is connected using the pre-mounted sleeve
• Complies with requirements according to DIN VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• For use with antenna earthing systems, lightning earthing systems, etc.
Technical data

Technical data

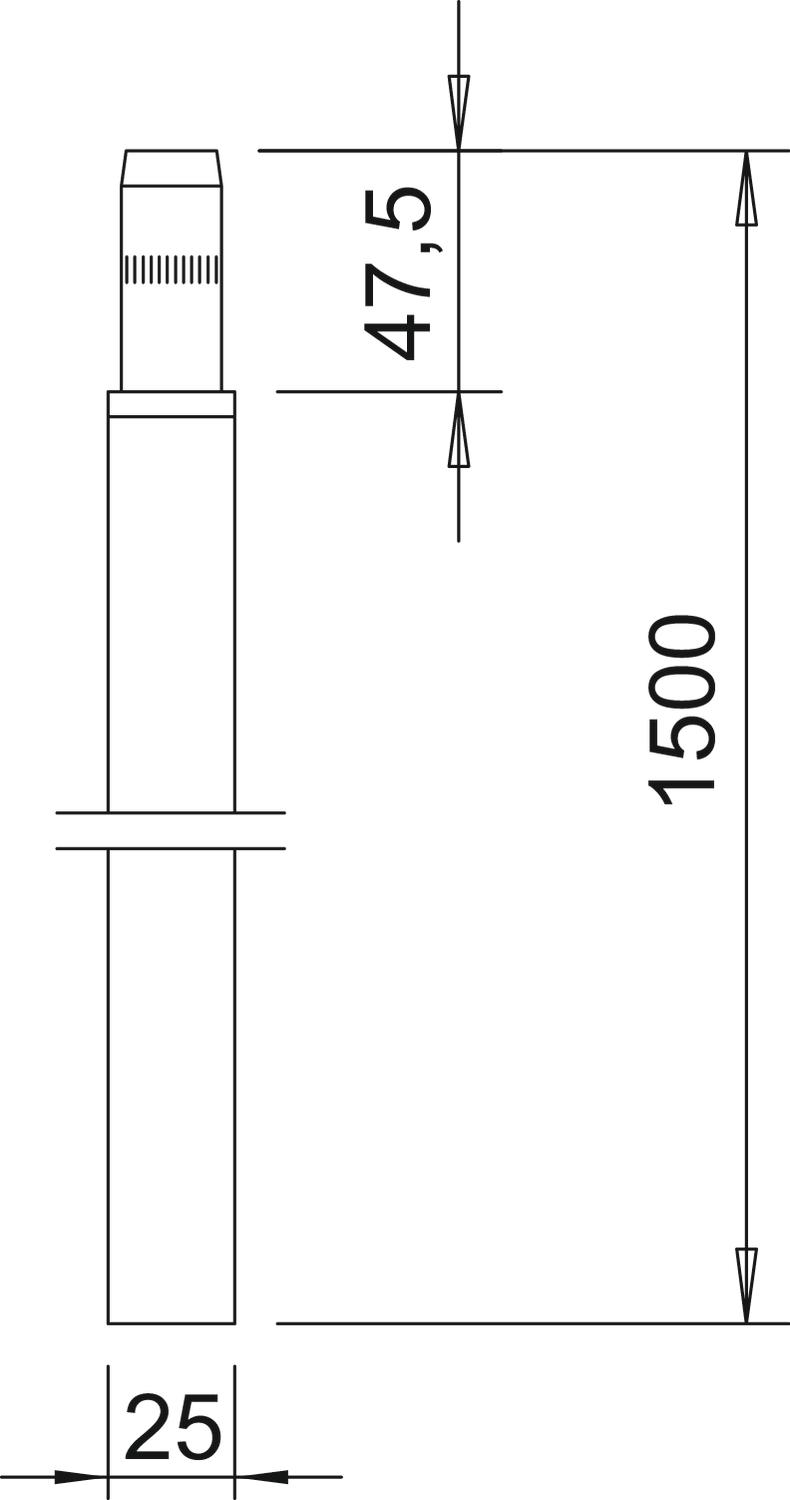

Dimension 1,5m
Dimension D 25 mm
Dimension L 1500 mm
External diameter 25 mm
Length 1500 mm
Material Stainless steel
Profile type Round D=25 mm
All types

All types

Types Length External diameter Item no. Quantity SSU
LE ERDER V4A 1500 mm 25 mm 5000335
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU

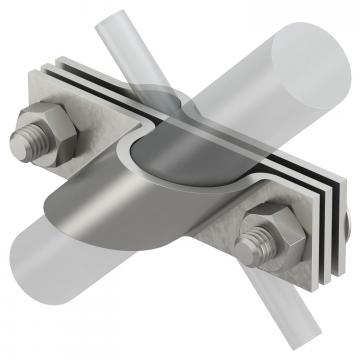

Connection clip for earth rod, universal A4 Connection clip for earth rod, universal A4 2760 20 V4A 5001633
5 piece
