Partition GK-TW53 2000 | 53
morepic-1 morepic-2

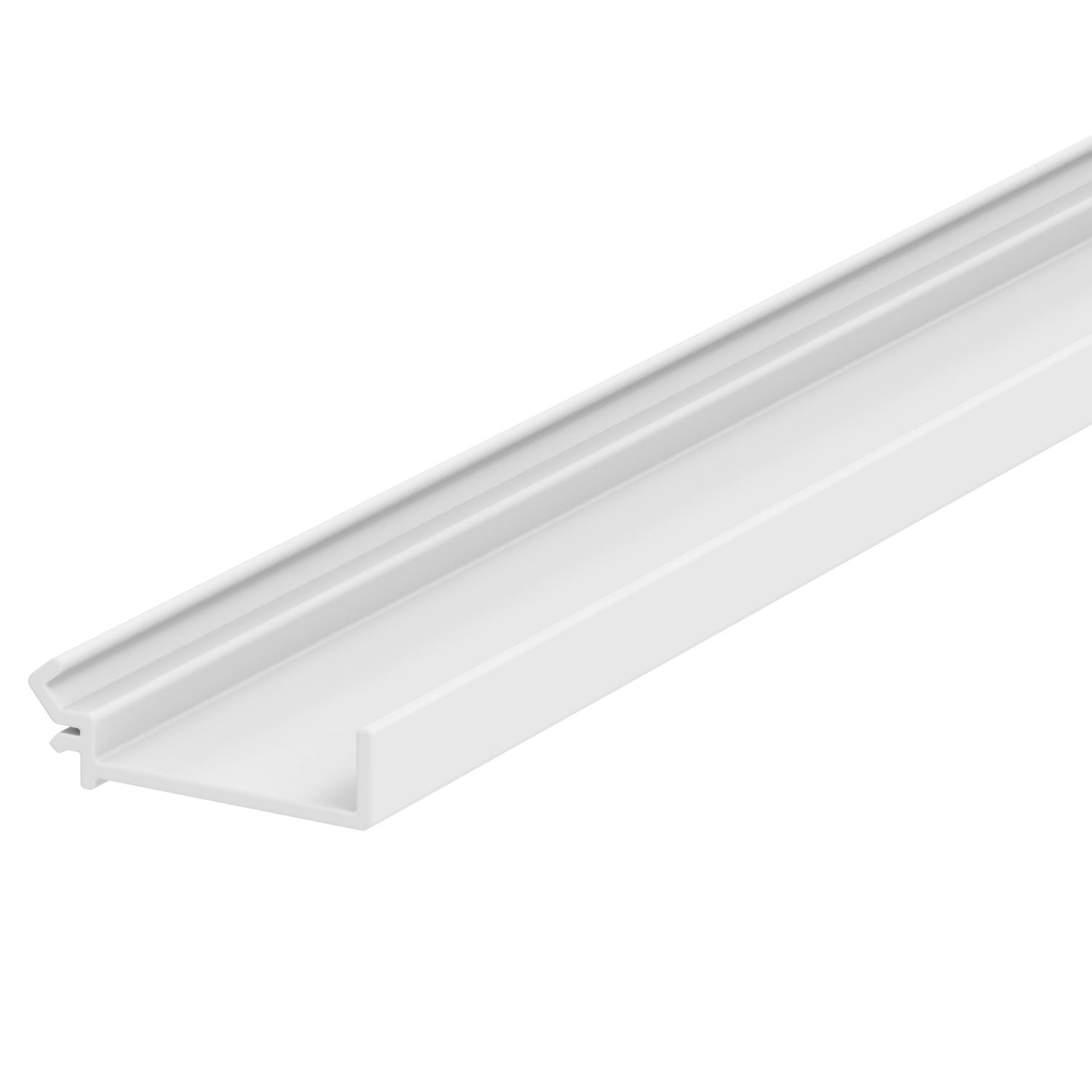

Partition GK-TW53

Item no. 6113290 | EAN 4012196419685

6113290 / GK-TW53
2000 mm
53
Product description
Product description
Partition for mounting in Rapid 45-2 GK and GA device installation trunking for installing cables of different voltage levels.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 38x13x2000
Fastening type Plug-in
Halogen-free no
Height 38 mm
Length 2000 mm
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP40
Protection rating IK code IK08
Suitable for duct depth 53
Version for Single
Width 10 mm
All types

All types

Types Length Suitable for duct depth Item no. Quantity SSU
GK-TW53 2000 mm 53 6113290
2 m
Downloads

Download

Download

EU declaration of conformity GK-TW53 / 6113290 , 0.10MB , pdf
Download
REACH Declaration of conformity GK-TW53 / 6113290 , 0.12MB , pdf
Download
RoHS Declaration of conformity GK-TW53 / 6113290 , 0.12MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
