Note: This article is discontinued.

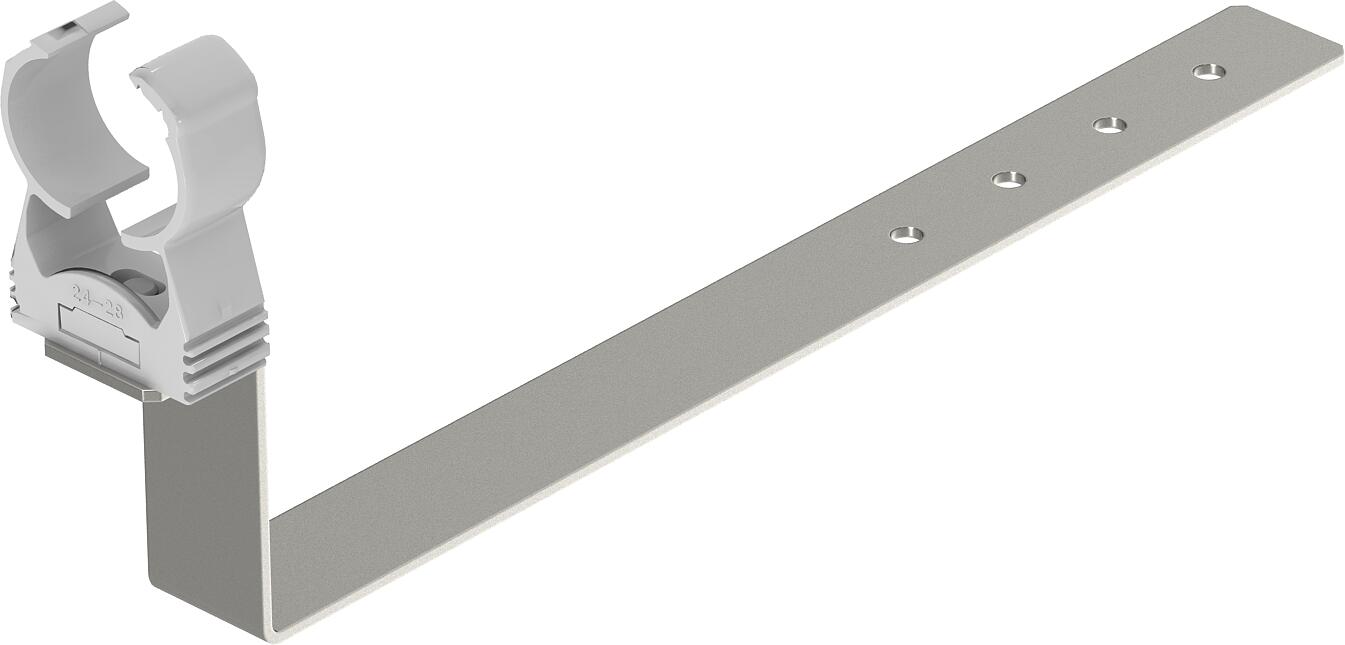

PA roof conductor holder, sloping roof
Item no. 5408072 | EAN 4012195872757
- Product description
-
Product descriptionTo route the isCon® conductor on pitched roofs.
- Technical data
-
Technical data

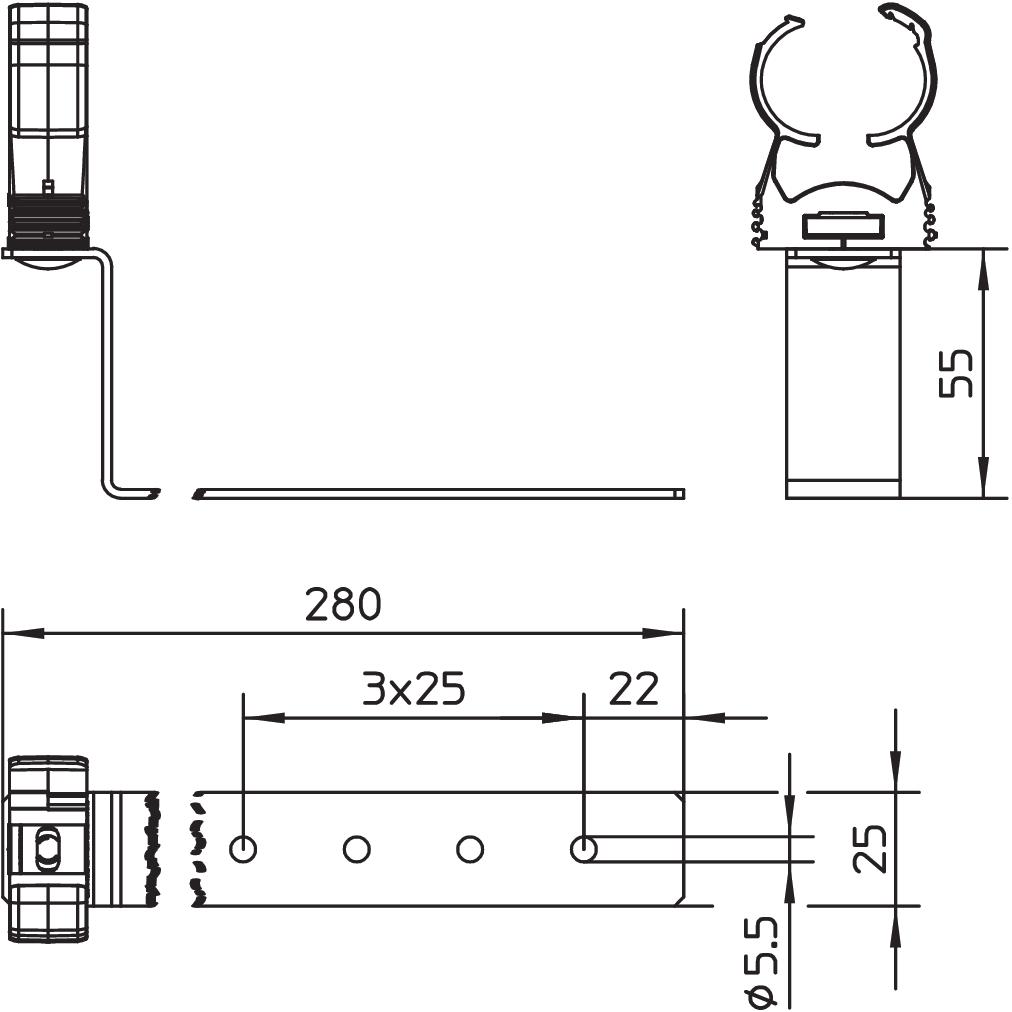

Application Pitched roof Colour Light grey Conductor diameter, min. 26 Conductor fastening type With clip Connection Round conductor Dimension 280mm Length 280 mm Material Polyamide Material lower part V2A Material upper part PA Mounting height 55 mm Mounting type Screw-on - All types
- Downloads
-
Data sheet isCon H280 26 PA / 5408072 , 0.13MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,Mounting instructions Extended mounting instructions, long isCon® , 11.88MB , pdf
