Mounting plate for FireBox T series 220 | 159 | 63 | 165

morepic-1

morepic-2

Mounting plate for FireBox T series

Item no. 7205484 | EAN 4012196134977

Item no. / Types

Width

Height

Dimension x

Dimension y

Product description

Product description

Mounting plate for the fastening of junction boxes of the FireBox T series (with external fastening) onto cable trays or cable ladders with a side height of 60 mm. The angled construction from sheet steel reinforced through crimps enables the secure mounting of cables that maintain electrical functionality, without having to bend the cable over the side rail.

Technical data

Technical data

Dimension	220x63x159
Dimension B	220 mm
Dimension H	159 mm
Dimension x	63 mm
Dimension y	165 mm
Fastening type	Screw fastening

Height	159 mm
Material	Steel
Rustproof steel, pickled	no
Surface	Strip galvanised zinc/aluminium, Double Dip
Version for	Horizontal
Width	220 mm

All types

All types

Types	Width	Height	Dimension x	Dimension y	Item no.	Quantity	SSU
MP T610	185 mm	141 mm	52 mm	125 mm	7205480	piece	1 piece
MP T616	220 mm	159 mm	63 mm	165 mm	7205484	piece	1 piece

Downloads

Data sheet MP T616 / 7205484 , 0.20MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Brochure The Experts , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Schutzinstallation Brandgeprüfte Verlegesysteme , 19.95MB , pdf

REACH Declaration of conformity MP T616 / 7205484 , 0.12MB , pdf

Download

RoHS Declaration of conformity MP T616 / 7205484 , 0.12MB , pdf

Download

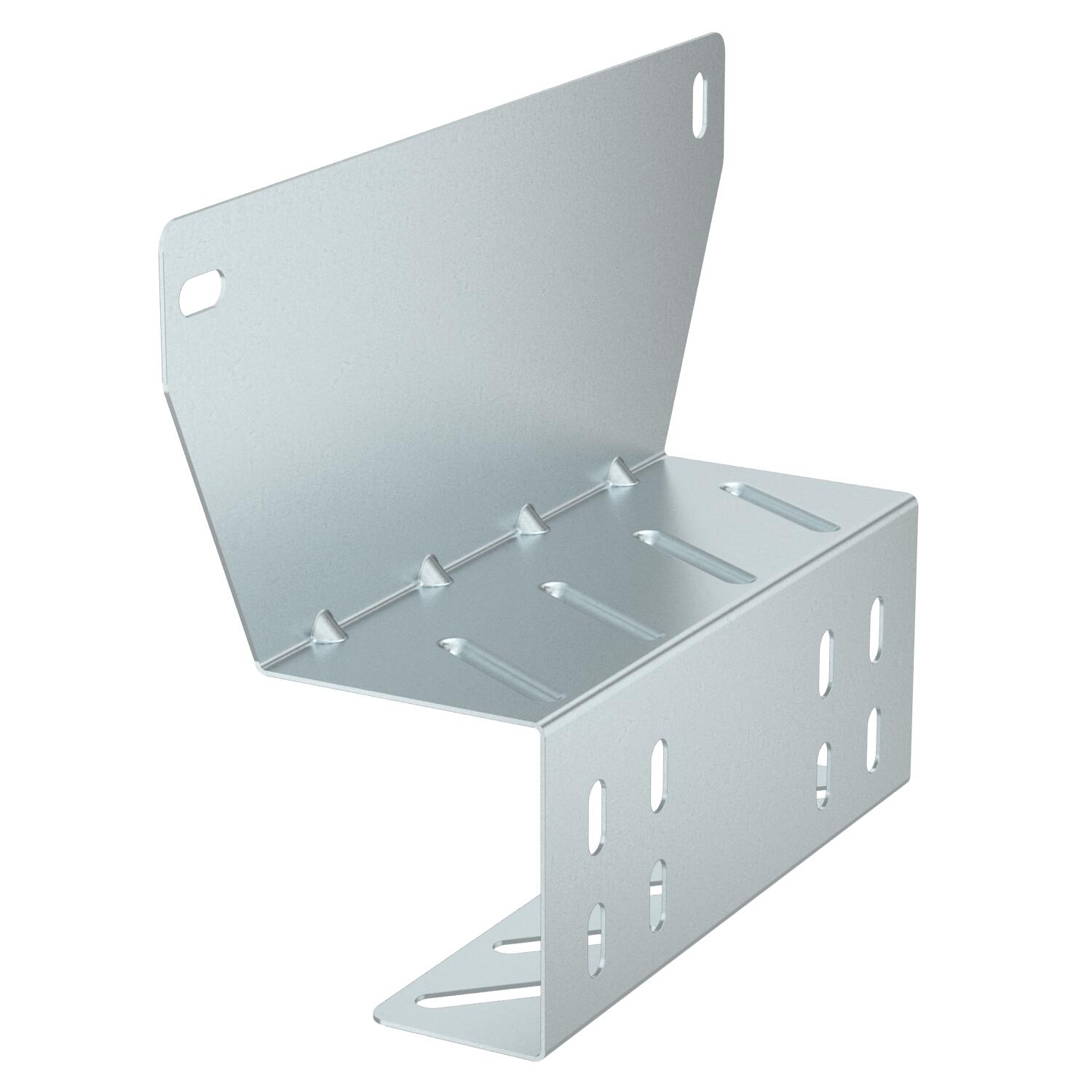

Product graphic MP T616 / 7205484, 78.33 kB, jpg

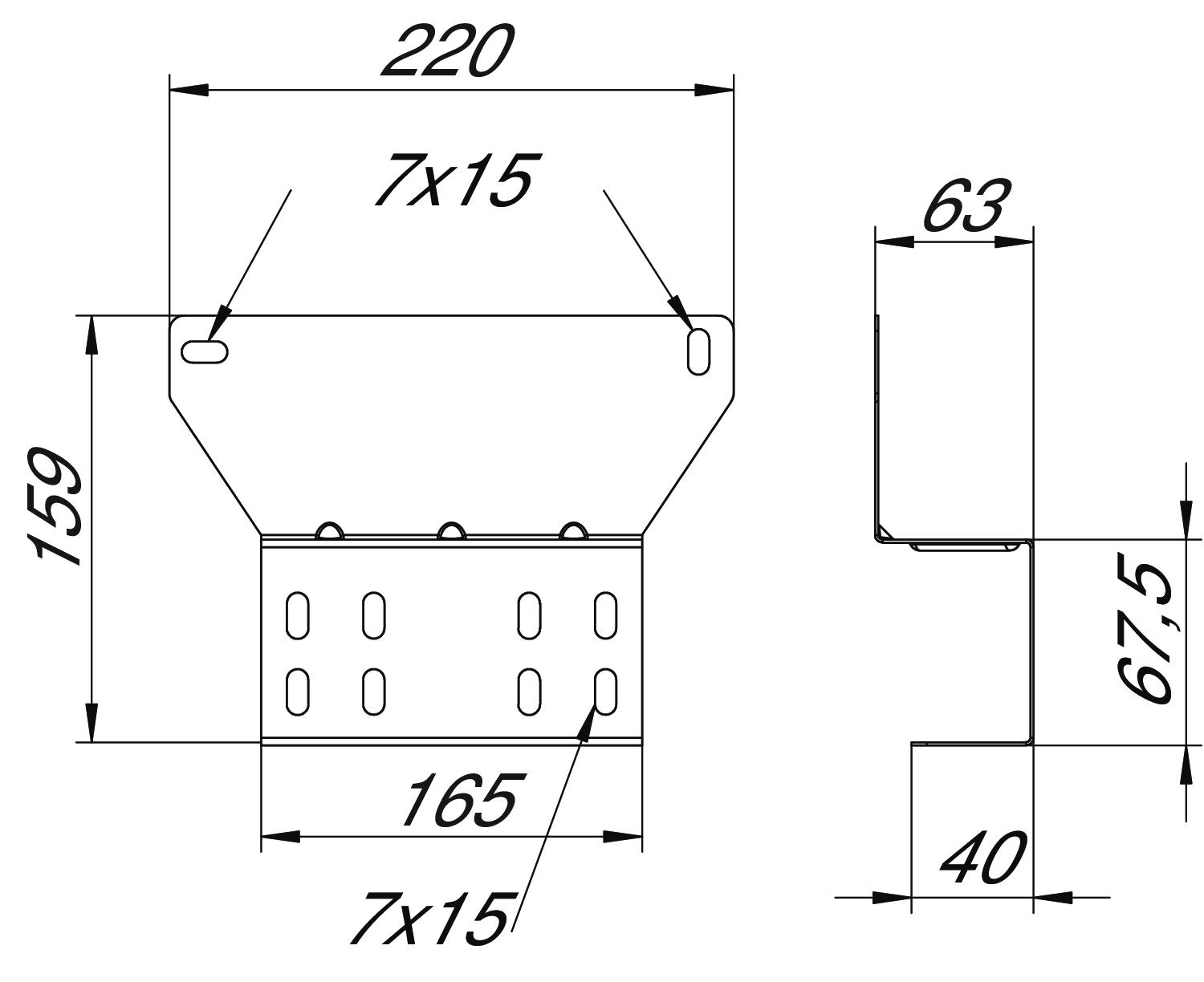

Scale drawing MP T616 / 7205484, 74.99 kB, jpg
