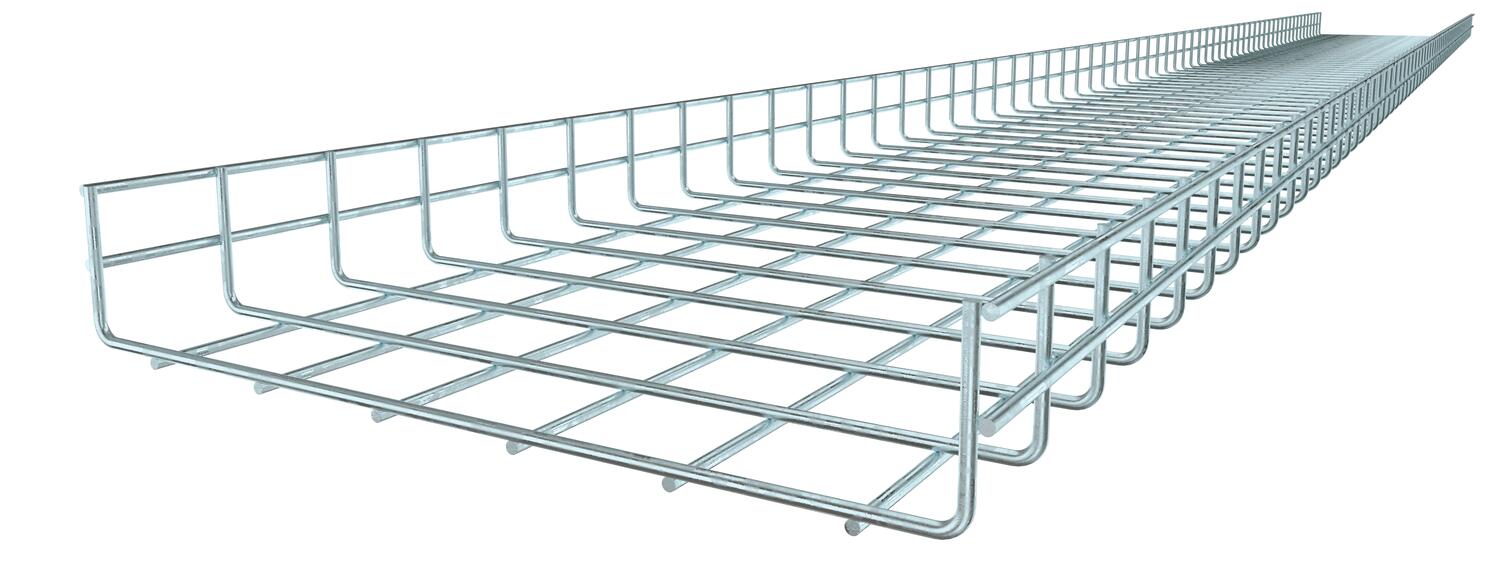

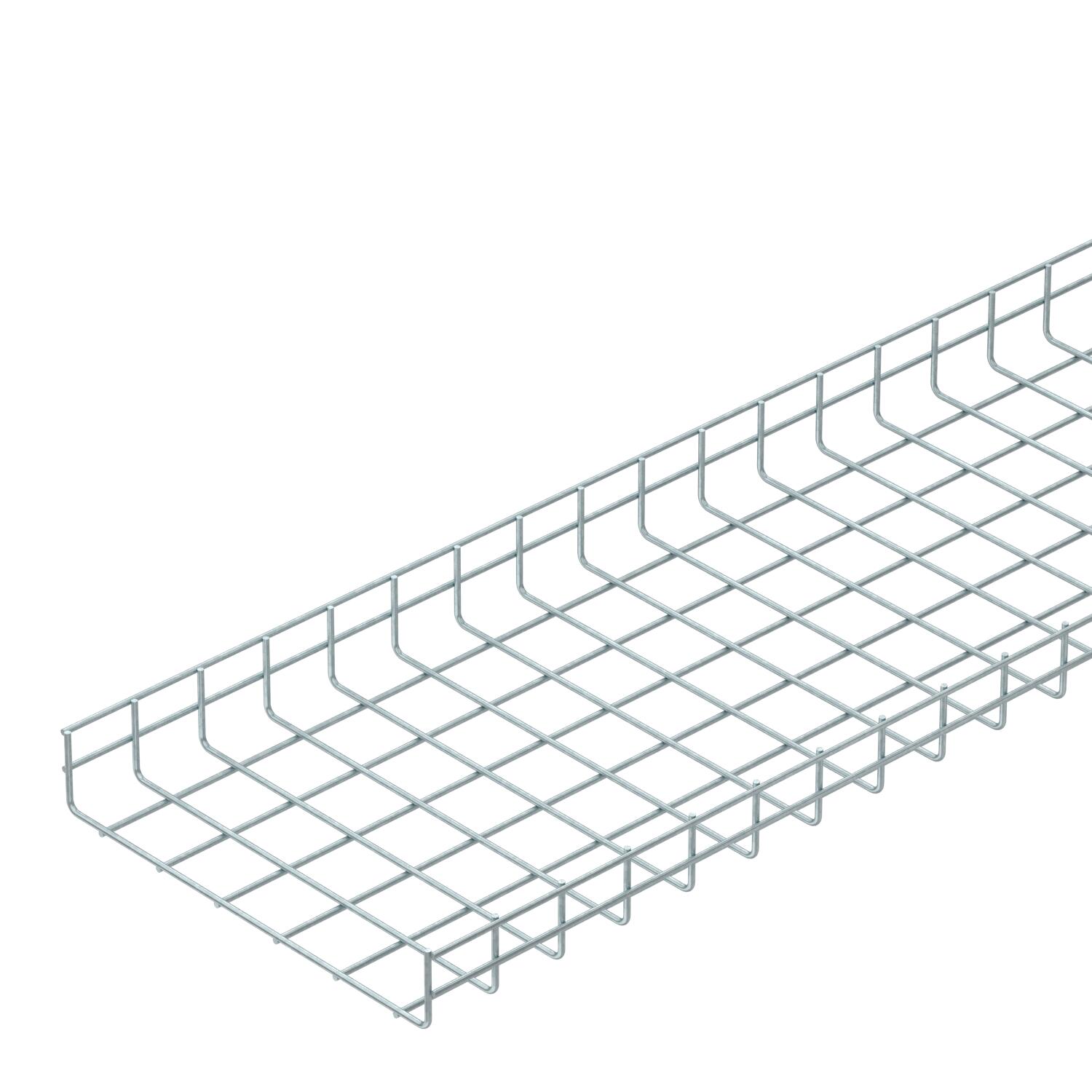

Mesh cable tray, Gridspan GS50

Item no. 6901153 | EAN 4012196063789

Item no. / Types

Length	3000 mm

Width

Height	50 mm

Wire diameter	4 mm

Product description

Product description

Mesh cable tray made of spot-welded steel wire of side height 50 mm.

Apperture size = 50 x 75 mm.

Technical data

Technical data

Dimension	3000x70x60
Height	50 mm
Length	3000 mm
Material	Steel
Rustproof steel, pickled	no
Support spacing 1.0 m	1,4 kN/m
Support spacing 1.5 m	0,7 kN/m

Support spacing 2.0 m	0,25 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Wide-span version	no
Width	50 mm
Wire diameter	4 mm

All types

All types

Types	Length	Width	Height	Wire diameter	Item no.	Quantity	SSU
GS50 50 HDG	3000 mm	50 mm	50 mm	4 mm	6901153	m	3 m
GS50 100 HDG	3000 mm	100 mm	50 mm	4 mm	6901157	m	3 m
GS50 150 HDG	3000 mm	150 mm	50 mm	4 mm	6901161	m	3 m
GS50 200 HDG	3000 mm	200 mm	50 mm	4 mm	6901165	m	3 m
GS50 300 HDG	3000 mm	300 mm	50 mm	4 mm	6901169	m	3 m
GS50 400 HDG	3000 mm	400 mm	50 mm	4 mm	6901173	m	3 m
GS50 500 HDG	3000 mm	500 mm	50 mm	4 mm	6901177	m	3 m
GS50 600 HDG	3000 mm	600 mm	50 mm	4 mm	6901181	m	3 m

Downloads

Data sheet GS50 50 HDG / 6901153 , 0.17MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Mesh cable tray systems , 2.10MB , pdf

Brochure Latchable mesh cable tray cover , 2.00MB , pdf

Flyer Latchable covers , 2.00MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity GS50 50 HDG / 6901153 , 0.13MB , pdf

Environmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

Product graphic GS50 50 HDG / 6901153, 118.31 kB, jpg

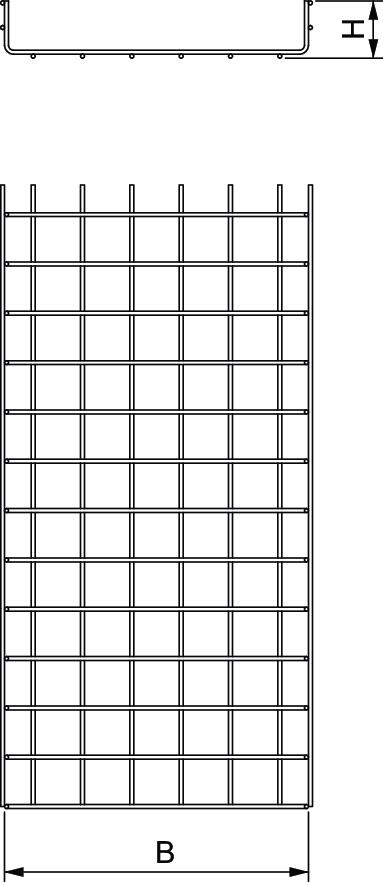

Scale drawing GS50 50 HDG / 6901153, 3.46 kB, jpg
