MCR protection for 2-pole power supply with remote signalling, 230 V AC | 255 | | IP20

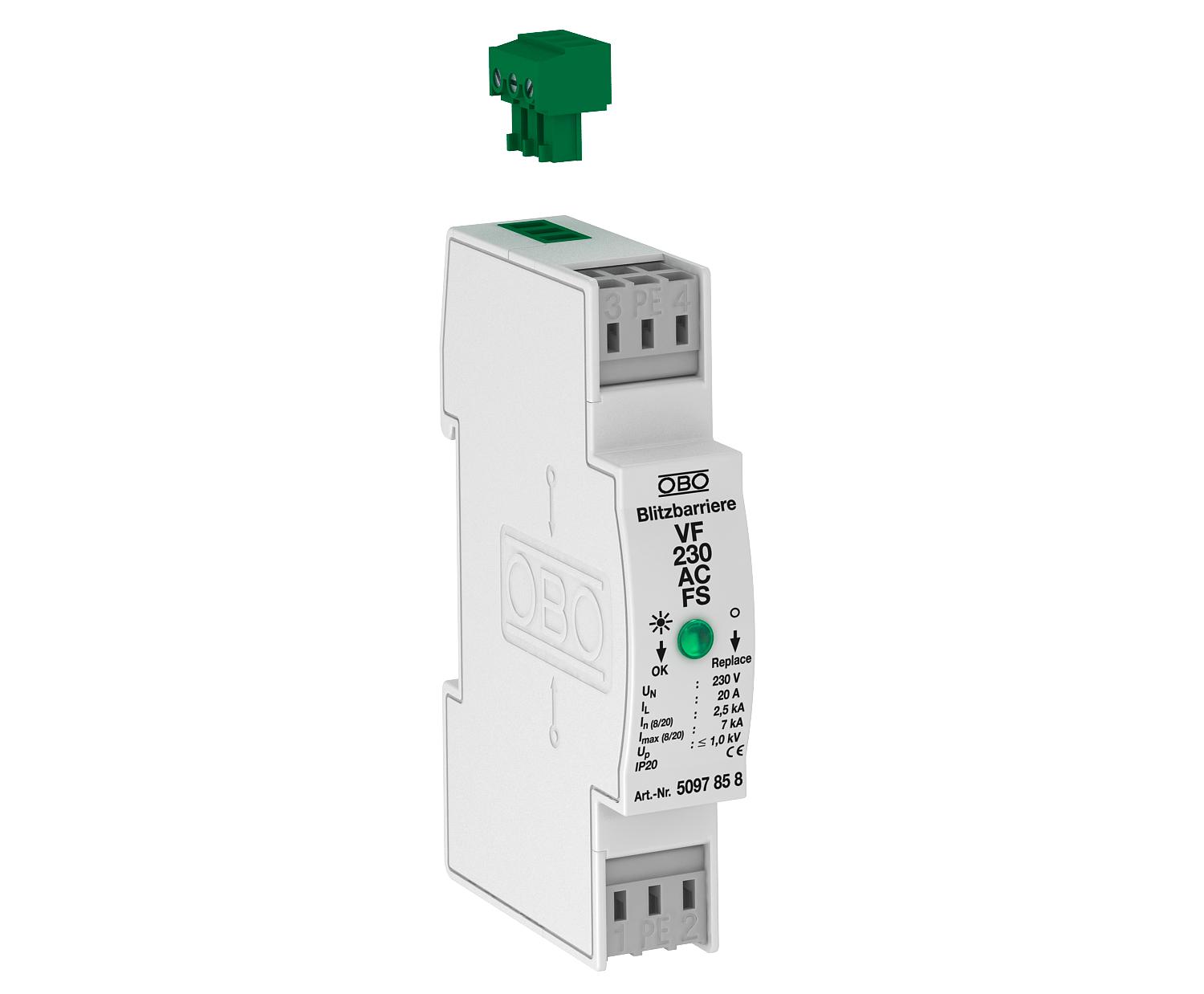

MCR protection for 2-pole power supply with remote signalling, 230 V AC

Item no. 5097858 | EAN 4012195578215

Item no. / Types	5097858 / VF230-AC-FS

Maximum continuous voltage AC	255 V

Protection rating	IP20

Product description

Product description

Surge protection/fine power protection, type 3, to EN 61643-11 with remote signalling

• With remote signalling, potential-free changeover contact, for function monitoring

• Suitable for AC systems

• With visual function display

• With easy mounting, screwless connection terminals

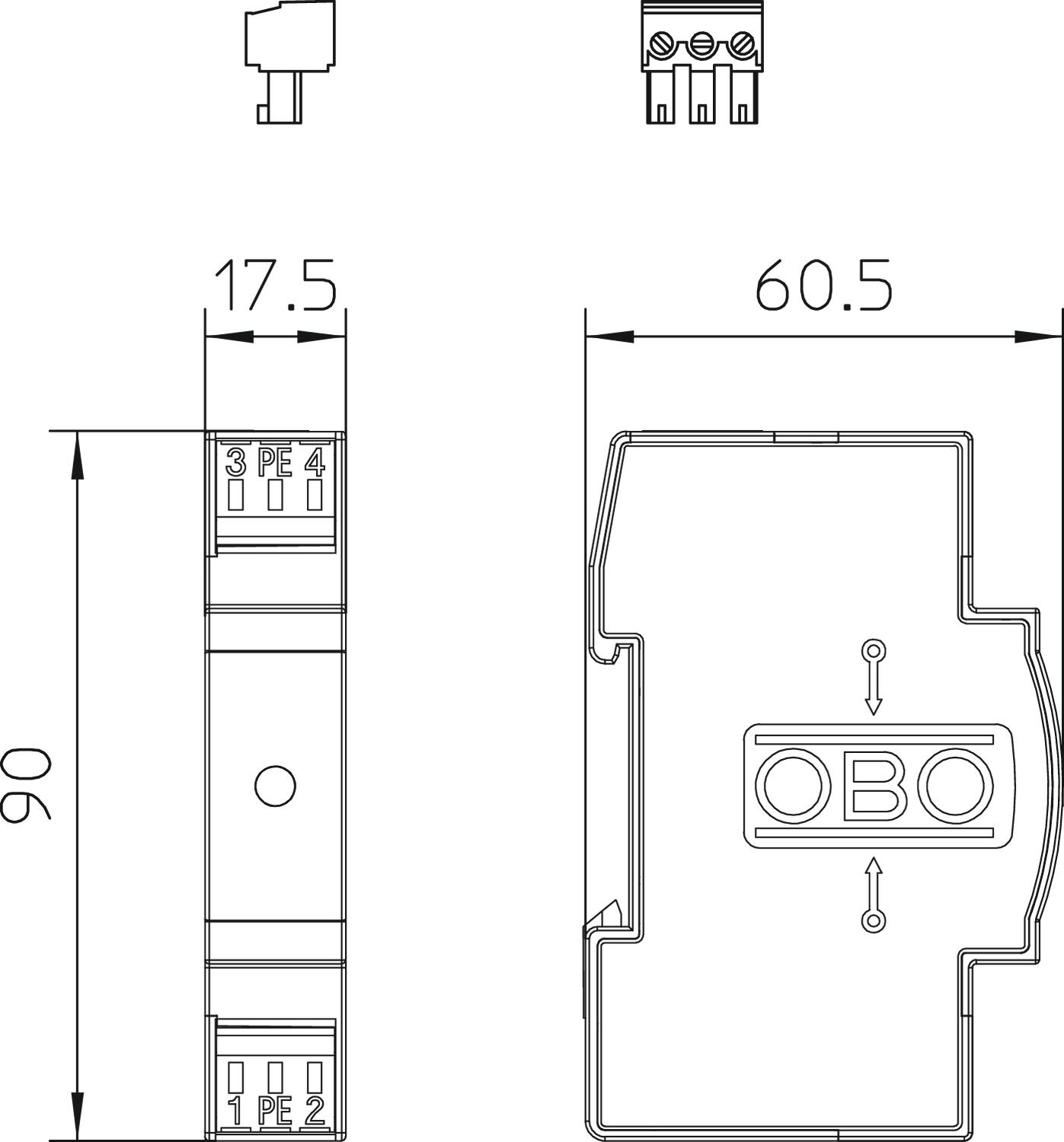

• In space-saving 17.5 mm grid

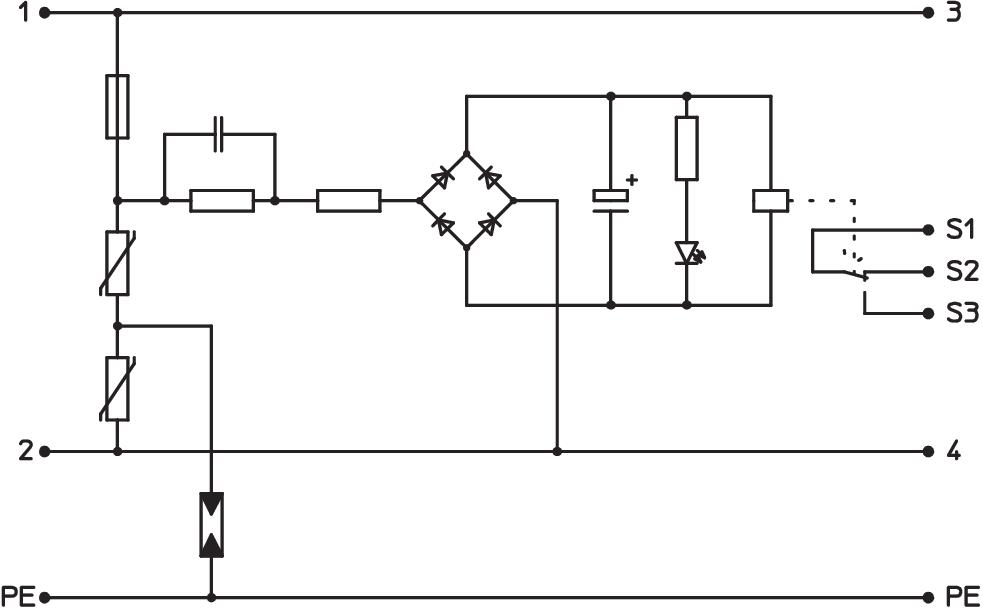

• Y circuit

Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.

Technical data

Technical data

Blow-out	no
Cable type for surge protection devices	Power cable AV
Combined voltage protection level [L-PE]	1500 kV
Conductor cross-section, flexible (fine-wire), min.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,14 mm²
Dimension	230V AC
Explosion-tested version	no
FM contacts	Changeover
Installation type	DIN rail 35 mm
Lightning protection zone LPZ	2→3
Maximum continuous voltage AC	255 V
Maximum discharge current (8/20 μs)	7 kA
Network form	Other
Nominal discharge current (8/20 µs)	2,5 kA

Nominal voltage AC (50/60 Hz)	230 V
OBO_Nominal load current (input/output terminal)	20 A
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Pole number	3
Protection level wire-earth	<1400 V
Protection level wire-wire	<1060 V
Protection level [L-N]	≤1000
Protection rating	IP20
Remote signalling	yes
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 3
SPD to IEC 61643-1	Class III
Test class, type 3	yes
