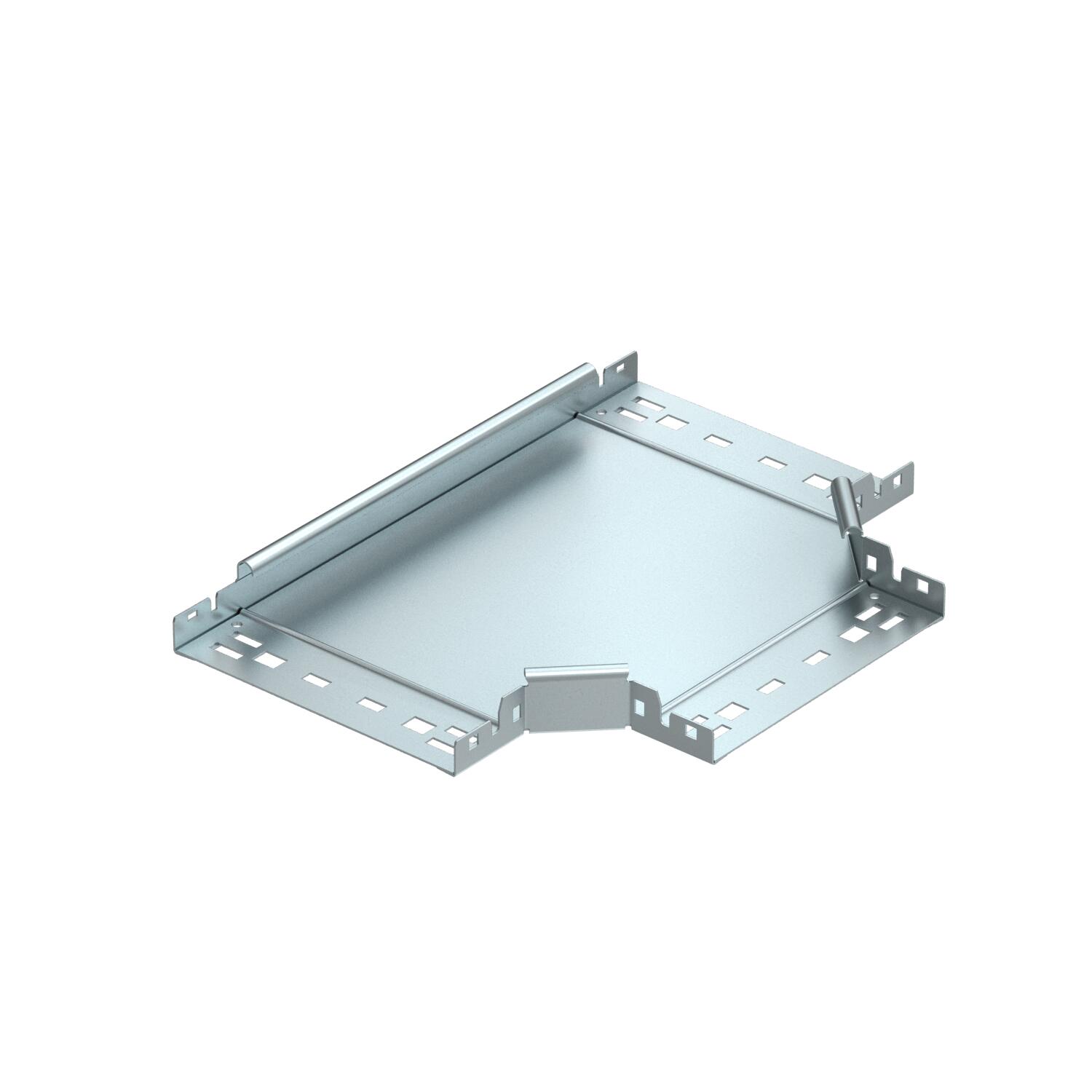

Magic T branch piece 35 FS
Item no. 6041030 | EAN 4012195915386
- Product description
-
Product descriptionT branch piece with quick connector system. For all cable tray types of 35 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Integrated connector CO₂ Footprint (GWP) Cradle-to-Gate 2,523 kg CO₂e / 1 Piece Dimension 35x100 Dimension B 100 mm Height 35 mm Maintain electrical functions no Material Steel NATO hole pattern no Plate thickness 1,25 mm Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type T piece horizontal Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
