Note: This article is discontinued.
You can find the current article here: 6042123 / Add-on tee 60 FS

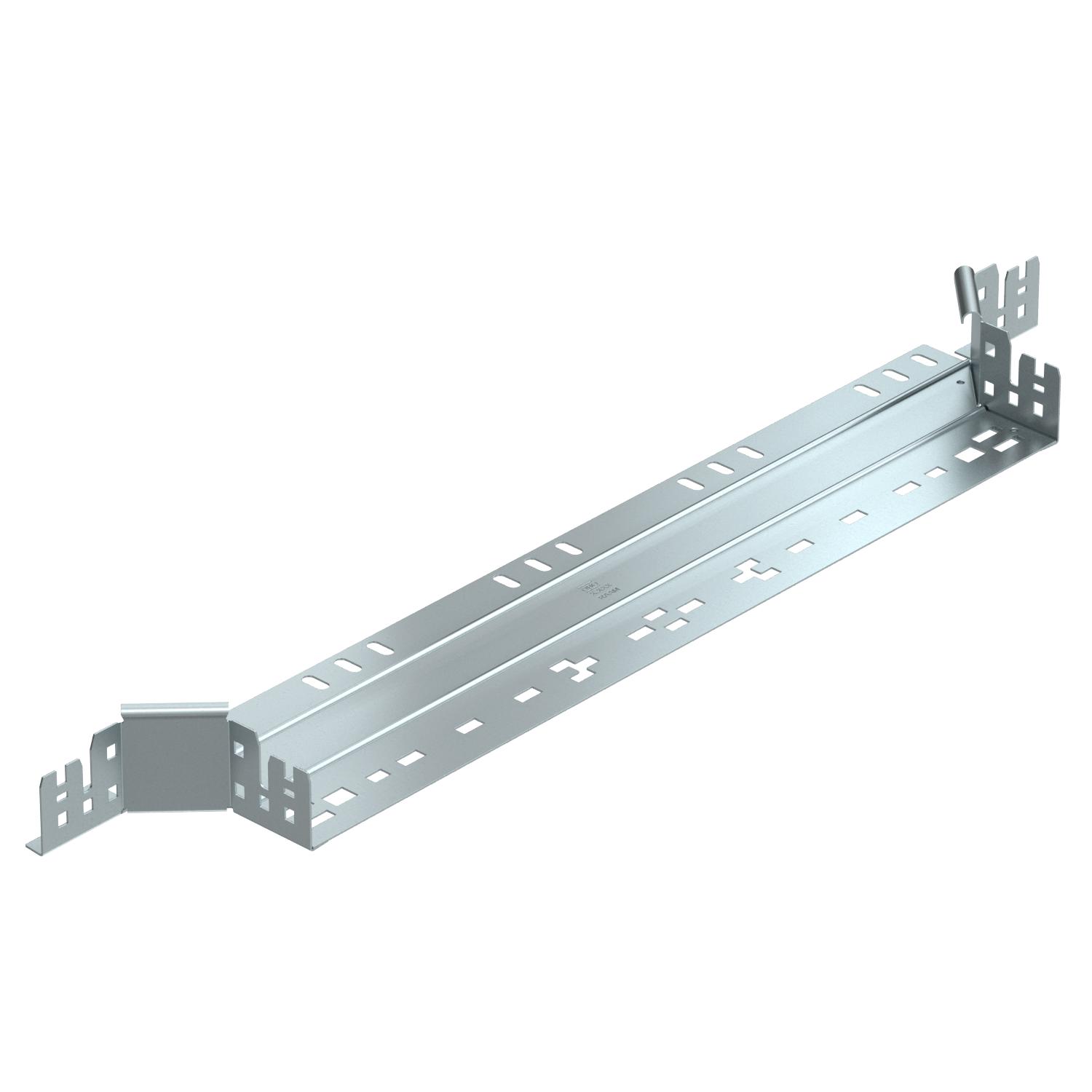

Magic add-on tee 60 FS
Item no. 6041242 | EAN 4012195878681
- Product description
-
Product descriptionMagic add-on tee with quick connector system. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Integrated connector Departing width 600 mm Dimension 60x600 Dimension B 600 mm Fire protection Use of fire protection ceilings Height 60 mm Height 2 in Maintain electrical functions no Material Steel Material thickness, floor plate 1,25 mm NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 600 mm Width 24 in - All types
- Downloads
-
Data sheet RAAM 660 FS / 6041242 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RAAM 660 FS / 6041242 , 0.10MB , pdfREACH Declaration of conformity RAAM 660 FS / 6041242 , 0.12MB , pdfRoHS Declaration of conformity RAAM 660 FS / 6041242 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
