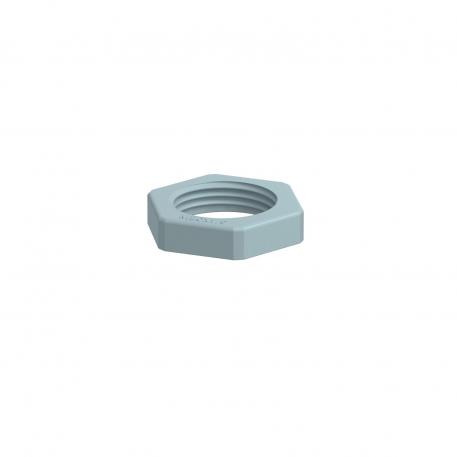

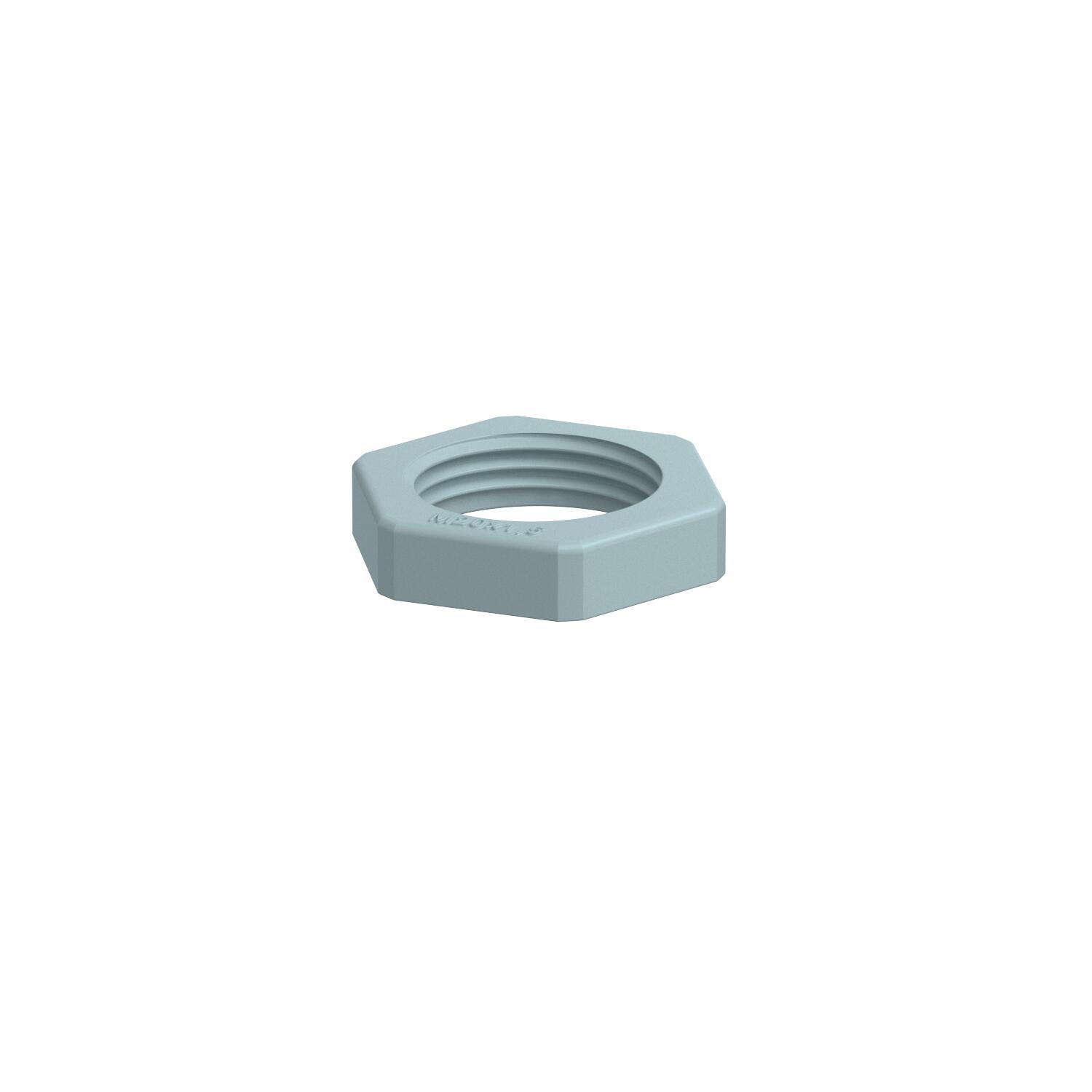

Locknut, metric thread, silver grey

Item no. 2048779 | EAN 4012195446590

Product description
Product description
Locknut to DIN 46319, with metric thread IEC 423.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
Technical data

Technical data

Colour Silver grey; RAL 7001

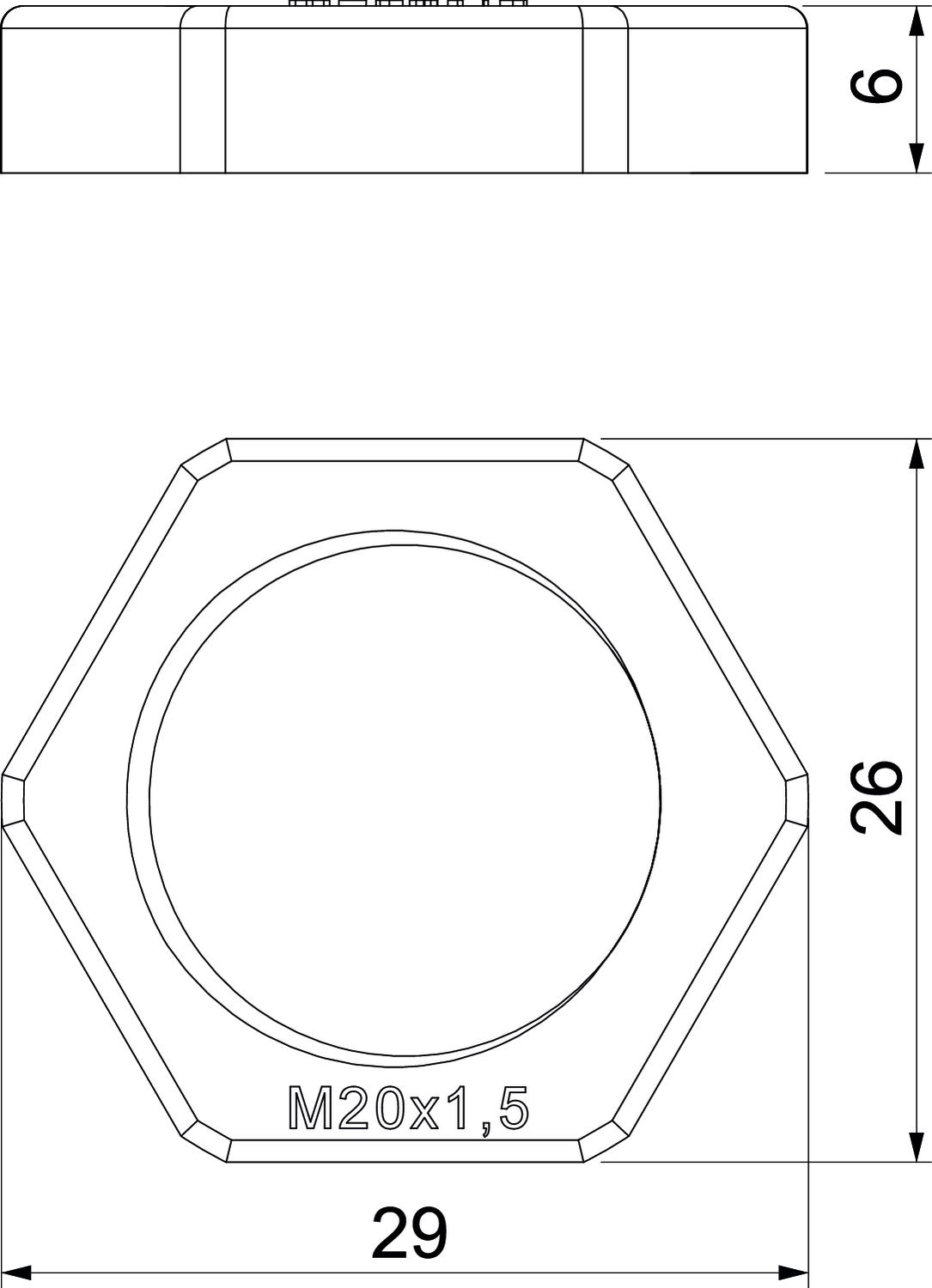

Dimension M20
Dimension E 29 mm
Dimension L 6 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size metric/PG 20
Thread M20_x_1,5
Thread type Metric
WAF 26
All types

All types

Types Thread WAF Item no. Quantity SSU
116 M12 SGR PA M12_x_1,5 17 2048752
100 piece
116 M16 SGR PA M16_x_1,5 22 2048760
100 piece
116 M20 SGR PA M20_x_1,5 26 2048779
100 piece
116 M25 SGR PA M25_x_1,5 32 2048787
100 piece
116 M32 SGR PA M32_x_1,5 41 2048795
50 piece
116 M40 SGR PA M40_x_1,5 50 2048809
25 piece
116 M50 SGR PA M50_x_1,5 60 2048817
25 piece
116 M63 SGR PA M63_x_1,5 75 2048825
25 piece
