Locknut, metric thread, light grey M16_x_1,5 | 22
morepic-1 morepic-2

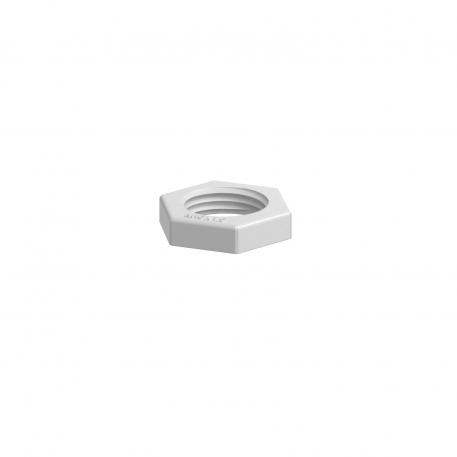

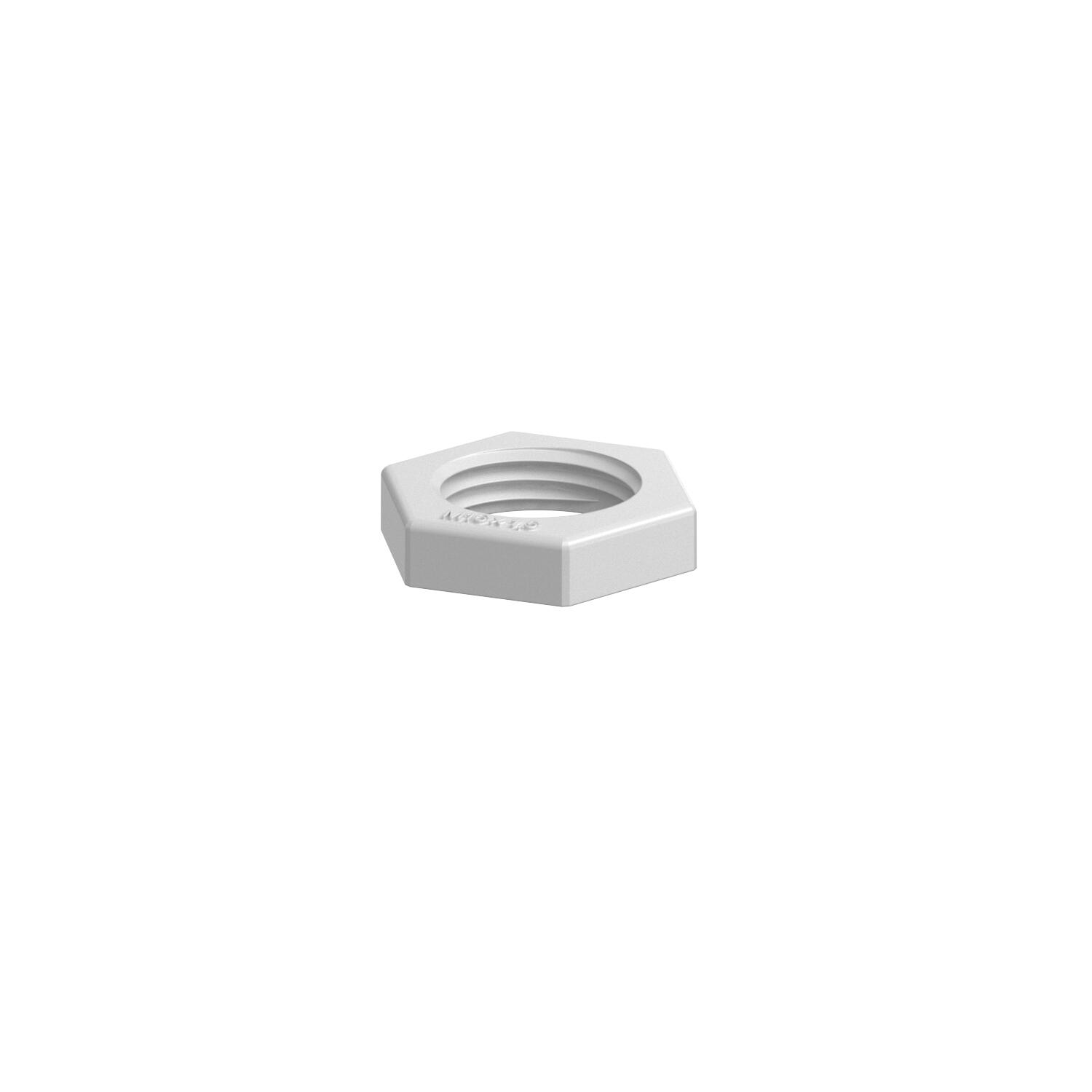

Locknut, metric thread, light grey

Item no. 2048914 | EAN 4012195874218

Back to overview
Product description
Product description
Locknut DIN 46319, with metric thread IEC 423.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035
CO₂ Footprint (GWP) Cradle-to-Gate 0,009 kg CO₂e / 1 Piece

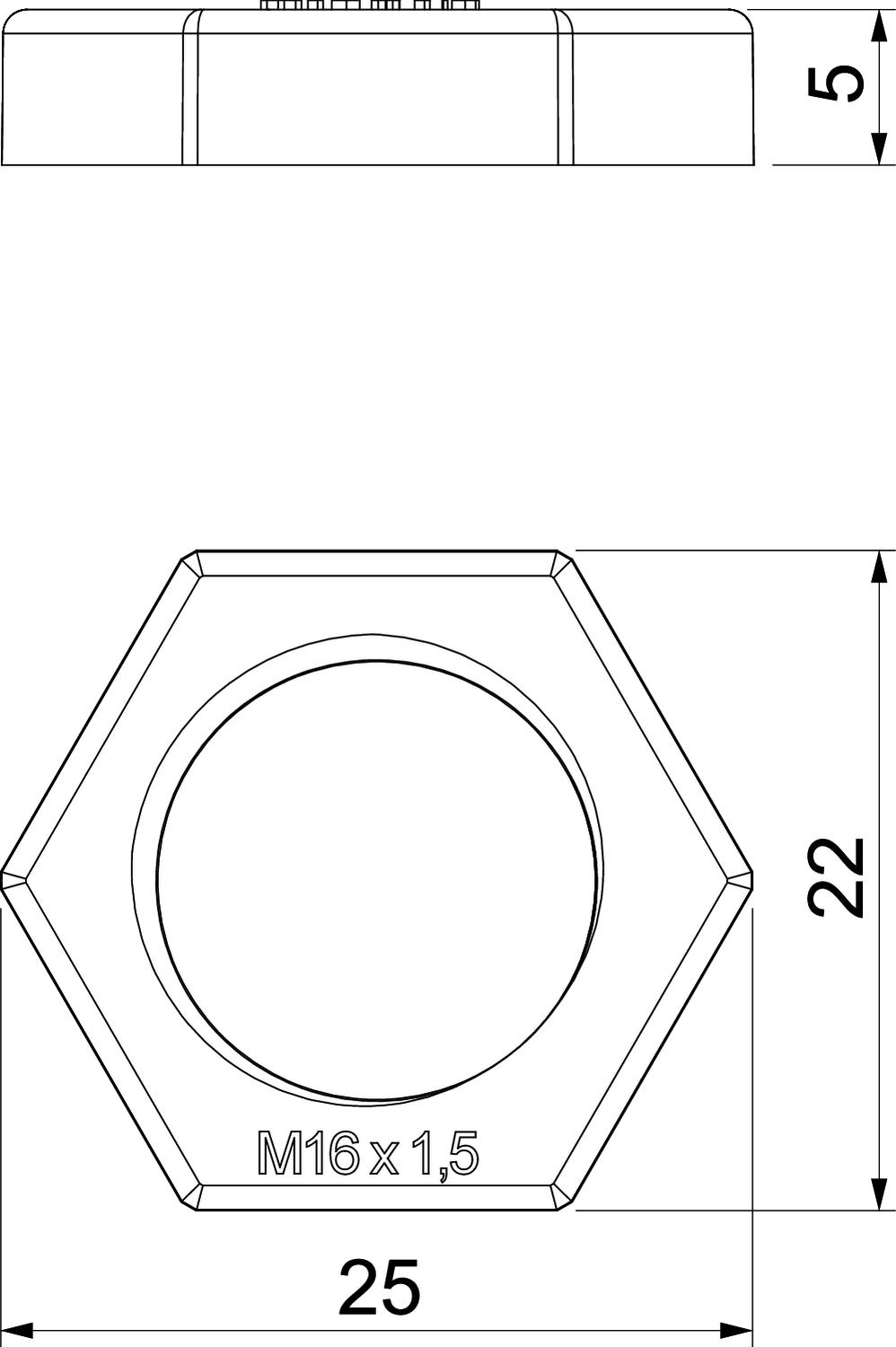

Dimension M16
Dimension E 25 mm
Dimension L 5 mm
Fibre-glass reinforced no
Halogen-free yes
Impact-resistant no
Material Polyamide
Nominal thread size metric/PG 16
Thread M16_x_1,5
Thread type Metric
WAF 22
All types

All types

Types Thread WAF Item no. Quantity SSU
116 M12 LGR PA M12_x_1,5 17 2048906
100 piece
116 M16 LGR PA M16_x_1,5 22 2048914
100 piece
116 M20 LGR PA M20_x_1,5 26 2048922
100 piece
116 M25 LGR PA M25_x_1,5 32 2048930
100 piece
116 M32 LGR PA M32_x_1,5 41 2048949
50 piece
116 M40 LGR PA M40_x_1,5 50 2048957
25 piece
116 M50 LGR PA M50_x_1,5 60 2048965
25 piece
116 M63 LGR PA M63_x_1,5 75 2048973
25 piece
